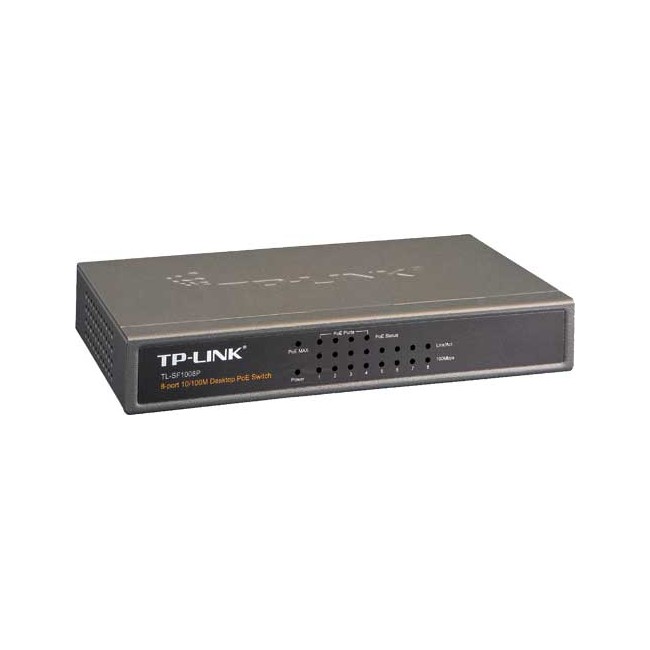

The TL-SF1008P 8-port 10/100M Desktop PoE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
TL-SF1008P has the priority * function which will help protect the system when the system power is overloaded. Ifall PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-link TL-SF1008P 8-port 10/100M Desktop PoE Switch is a great selection for expanding your home or office network.
Software Specification | |
Standards and Protocols | _IEEE 802.3, 802.3u, 802.3x, 802.3af _CSMA/CD, TCP/IP |
Basic Function | _Compatible with IEEE 802.3af compliant PDs |
_Port Priority Function | |
_Wire-speed Performance | |
_MAC Address Auto-Learning and Auto-aging | |
_IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode | |
Backbound Bandwidth | _1.6Gbps |
MAC Address Table | _1k |
Forwarding Rate | _10BASE-T: 14880pps/port _100BASE-TX: 148800pps/port |
Transmission Method | _Store-and-Forward |
_
Hardware Specification | |
Ports | _8 10/100M Auto-Negotiation RJ45 portswith 4 PoE ports (port-1~port-4), Auto MDI/MDIX |
Network Media | _10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) _EIA/TIA-568 100 STP (maximum 100m) _100BASE-TX: UTP category 5, 5e cable (maximum 100m) _EIA/TIA-568 100 STP (maximum 100m) |
LED Indicators | _Power, Link/Act, 100Mbps, PoE Status,PoE MAX |
Safety & Emission | _FCC, CE |
Dimensions (W*D*H) | _6.7*3.9*1.1 in. (171*98*27 mm) |
Environment | _Operating Humidity: 10%~90% non-condensing _Storage Humidity: 5%~90% non-condensing |
Power Supply | _External Power Adapter(Output: 48VDC / 1.25A) |
Consumption | _5.8 watts (max. no PD connected) |
_58 watts (max. with 53w PD connected |
