Redback Balanced Mic Line Input Pre-Amplifier and Mixer

Image 1
Image 2
$120.99

Collect 120 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

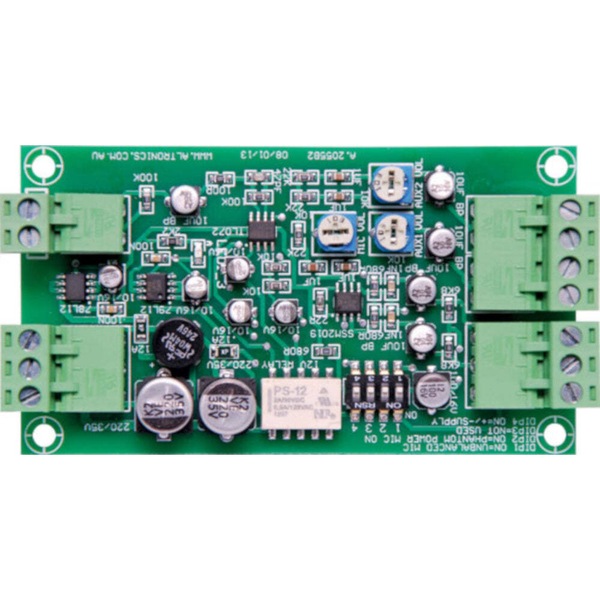

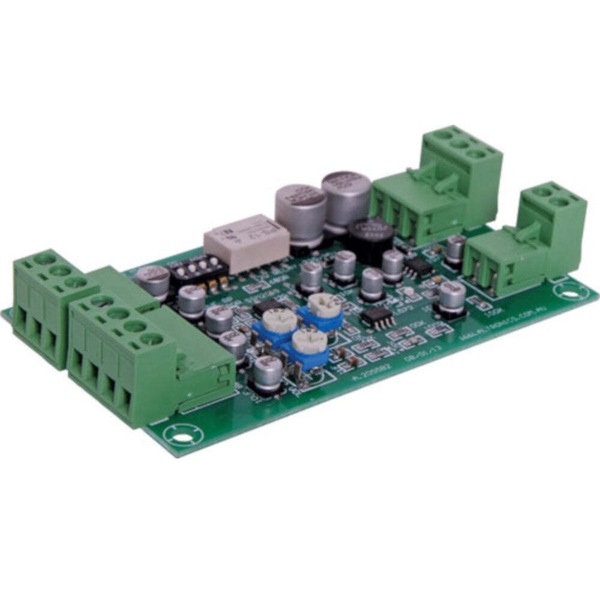

Features two line inputs and one mic input, each with its own level control. The mic input can be configured for either balanced or unbalanced operation. All inputs are mixed to a single line level output. It can be powered from either a single rail power supply (15V to 30V dc), or a dual rail power supply (±12V to ±30V dc).
PCB dimensions 100 x 57 mm.

Specifications

  • Microphone gain: 60 dB
  • Mic input sensitivity: 0.7 mV rms
  • S/N ratio: 10 mV input -74dB
  • Frequency resp.: 150Hz to 20kHz , -3dB
  • Line. gain: 14dB
  • Line. input sensitivity: 200mV
  • Line. S/N ratio: 500mV input -77dB
  • Line. freq. resp.: 30Hz to 20kHz, -3dB

GTIN: 9321758194447

Estimated Delivery Time Frame:5-7 business days
