Resi-Linx 3 In/8 Output Combiner/Splitter Amplifier RF Distribution Module f/ TV

Image 1
Image 2
Image 3
$252

Collect 252 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by KG Superstore
Secure ways to pay at checkout

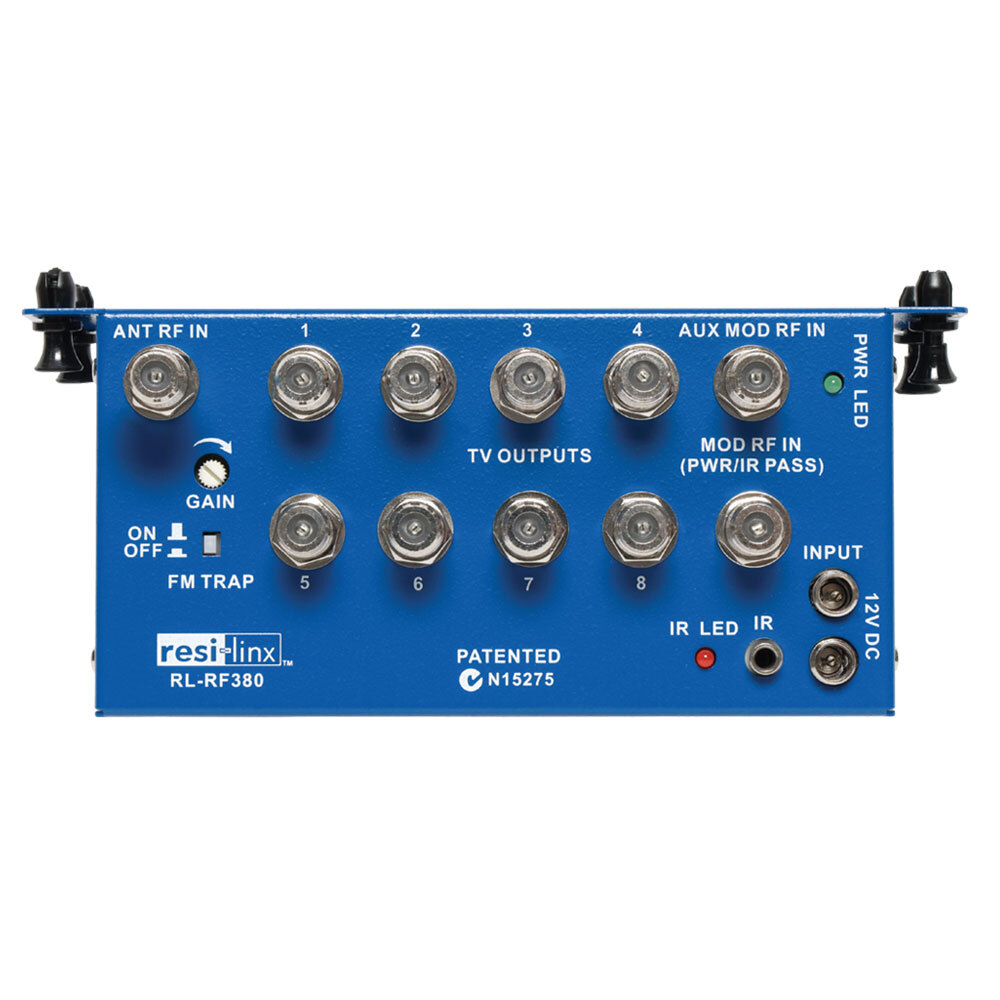

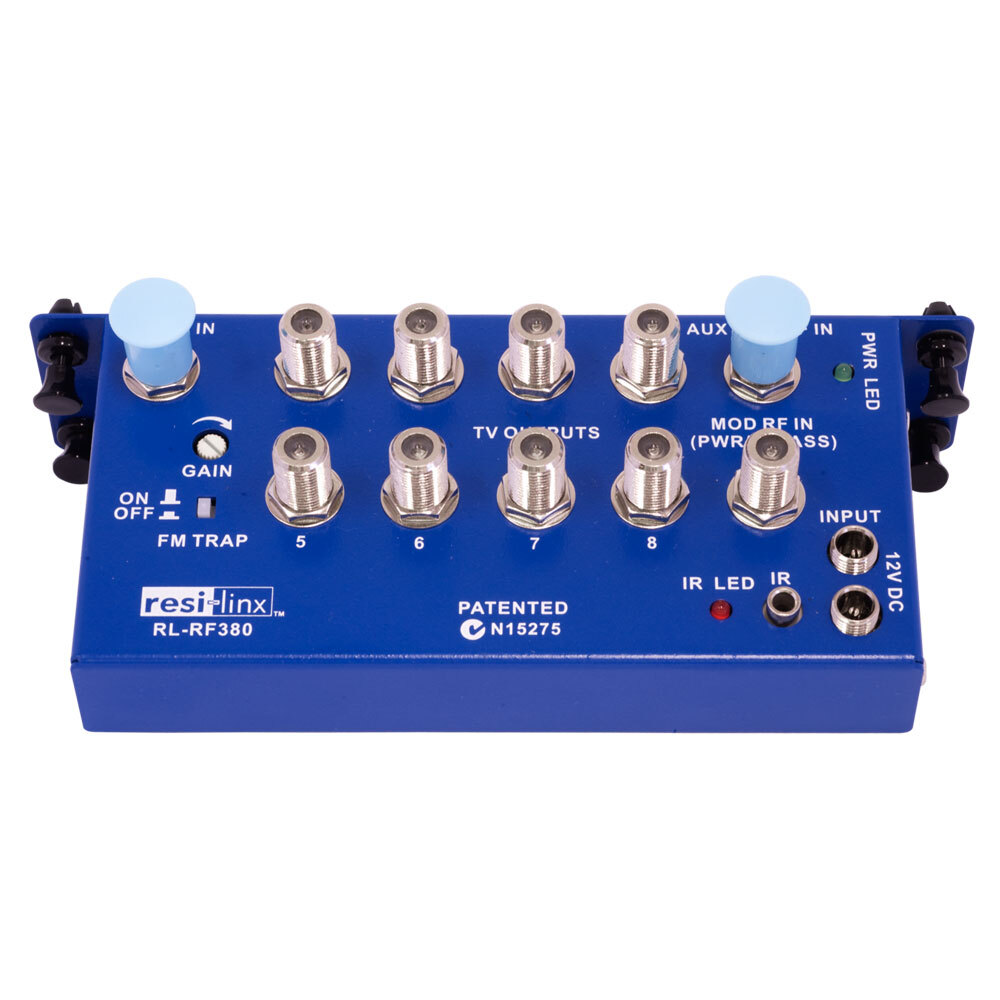

Resi-Linx RLRF380 3 Input / 8 Output RF Distribution Module's patented design is for whole-house video distribution with IR control.

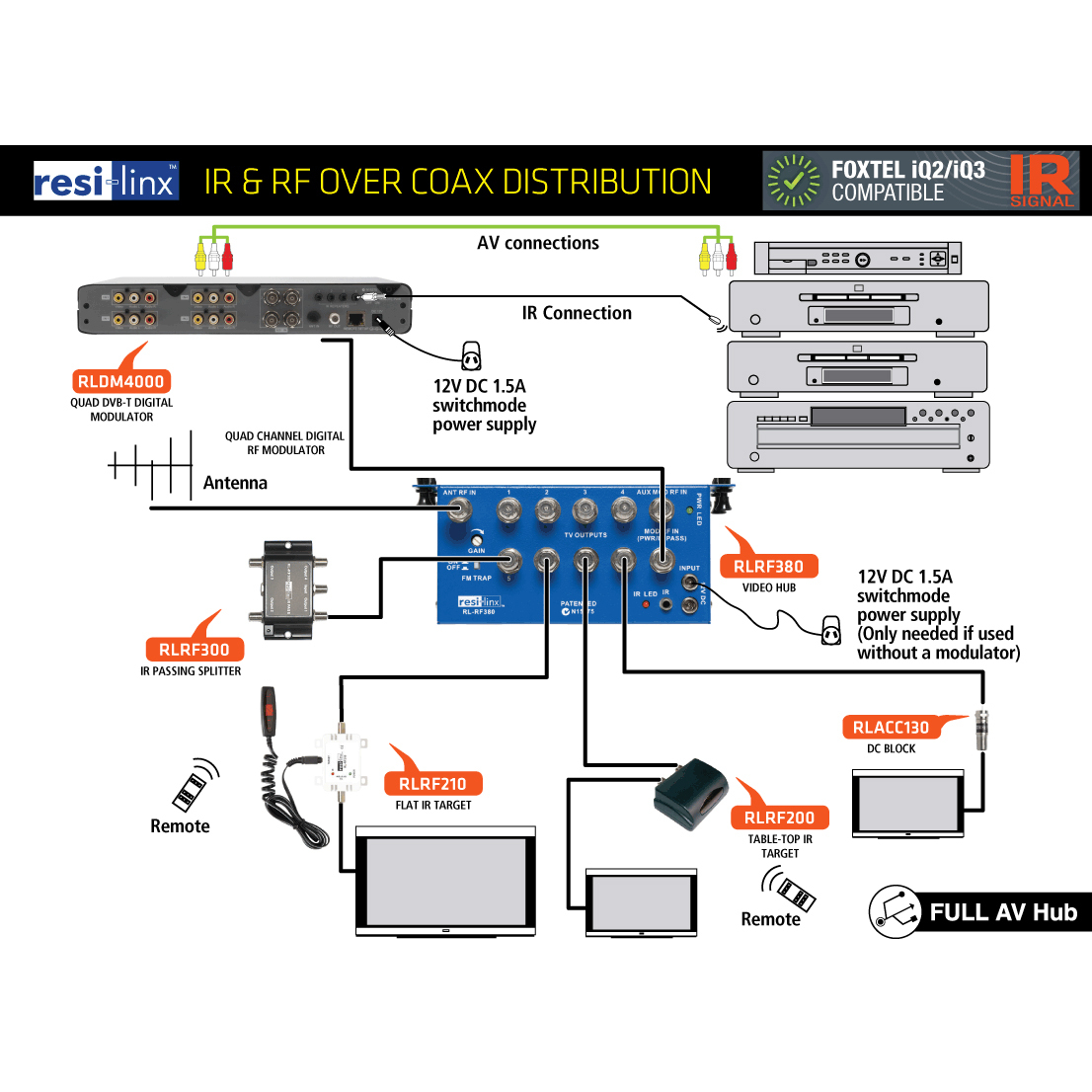

The splitters have reverse-path IR control, that when combined with other products in the IR range, will allow you to control the AV inputs from other locations.

The RL-RF380 must be remotely powered by an IR Modulator when using the IR Control.

  • Inputs: 3

  • Outputs: 8

  • Output Run Distance: 60m

  • IR Control: Yes

  • Patented

  • Must be remotely powered by an IR Modulator when using the IR Control

Features:

  • Active, low loss combiner and splitter with 3 inputs, 8 outputs

  • Includes gain control for Free To Air input to eliminate problems due to high/low signal strength.

  • When combined with gain control on the modulator, allows complete balancing of signals

  • FM trap On/Off switch to filter 88-108MHz signals from transferring through to output ports to eliminate FM interference to TV reception


Specifications:

The RL-RF380 must be remotely powered by an IR Modulator when using the IR Control.
  • Colour: Blue

  • Output Frequency Pass: 30KHz to 850MHz

  • Number of output: 8

  • Number of input (Modulator / ANT): 3

  • Output run distance: 60 metres

  • Isolation (Modulator inputs to ANT): -80dB

  • Weight: 405g

  • Size: 69mm x 22mm x 135mm

  • Connections - Power Out 1.8mm length with 2.1mm minijack socket

Gain / Loss

  • ANT: +2dB

  • Modulator: +3dB

Power supply

  • Input: 110 - 240V AC

  • Output: 12V DC - 1.5A Switch Mode

This item comes with a 12-month warranty.

GTIN: 9328202020307
