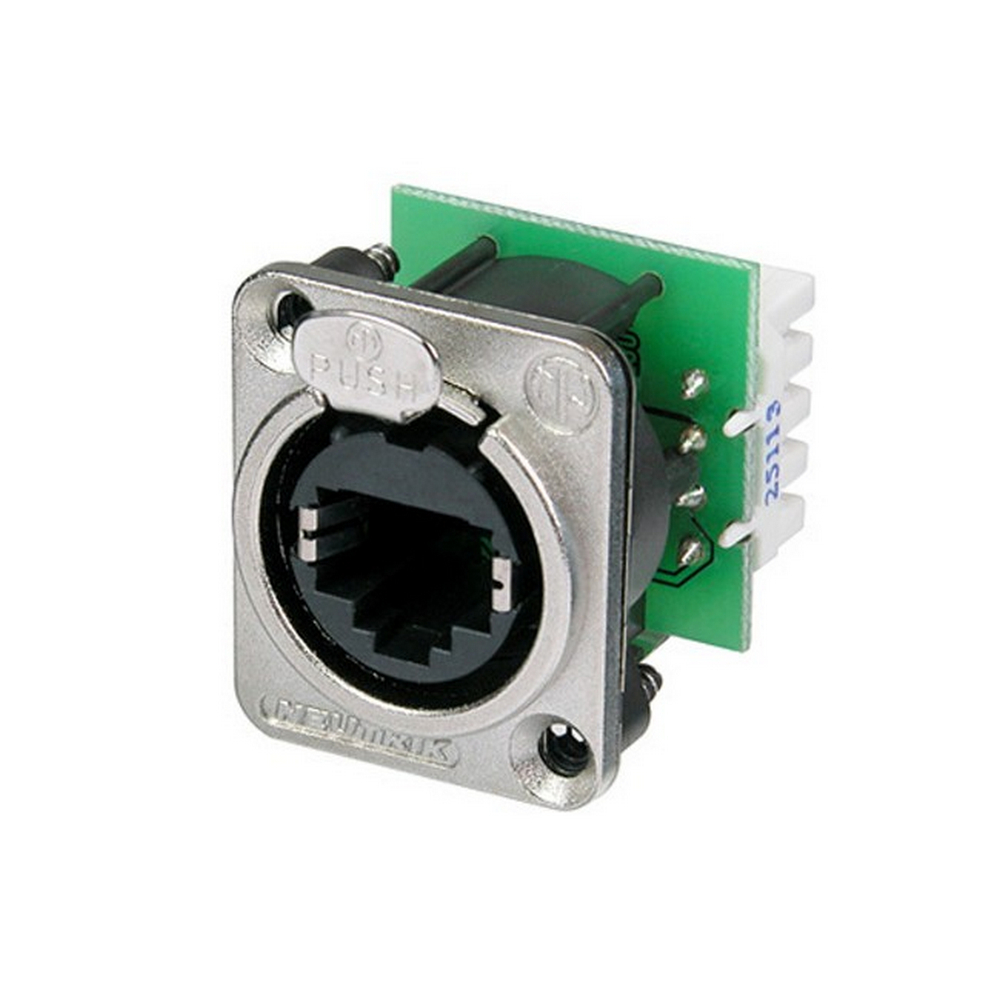

NEUTRIK Ethercon NE8FDV-YK CAT5E Panel Mount lockable RJ45 Connector System

Image 1
$54.90

Collect 54 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

Panel mount receptacle with IDC punch down terminals, D-sized metal flange with latch lock, max. panel thickness 4mm. Mounting screws included.

The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors areshaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Features & Benefits
  • Accommodates NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Selectable ground - panel connection
  • Easy and quick mounting using Krone punch down terminals

Technical Information

Products
Title NE8FDV-YK
Connection Type RJ45
Electrical
Contact resistance
< 10 mO (inner)
Dielectric strength
1 kVdc
Frequencyrange
1 - 100 MHz
Insulation resistance
> 0.5 GO
Rated current per contact
1,5 A
Rated voltage
50 V
Transmission performance
CAT 5e
Standard compliance
TIA/EIA 586B, IEC11801
Mechanical
Insertion force
= 20 N
Withdrawal force
= 20 N
Lifetime
> 1000 mating cycles
Panel thickness
max. 4 mm 0.16'
Wiresize
0.14 - 0.5 mm2
Wiresize
26 - 20 AWG
Wiring
IDC punch down terminals
Locking device
latch lock
Mounting direction
front & rear
Chassis shape
D
Material
Contact plating
0.2 µm Au over Ni plating
Contacts
Bronze (CuSn8)
Insert
PBTP 15 % GR
Shell
Zinc diecast (ZnAl4Cu1)
Shell Plating Nickel
Strain relief
CuZn35Pb2, Tin plated
Environmental
Flammability
UL 94 V-0
Temperature range
-30 °C to +80 °C

Specifications:

12 Months

GTIN: 7613187004957
