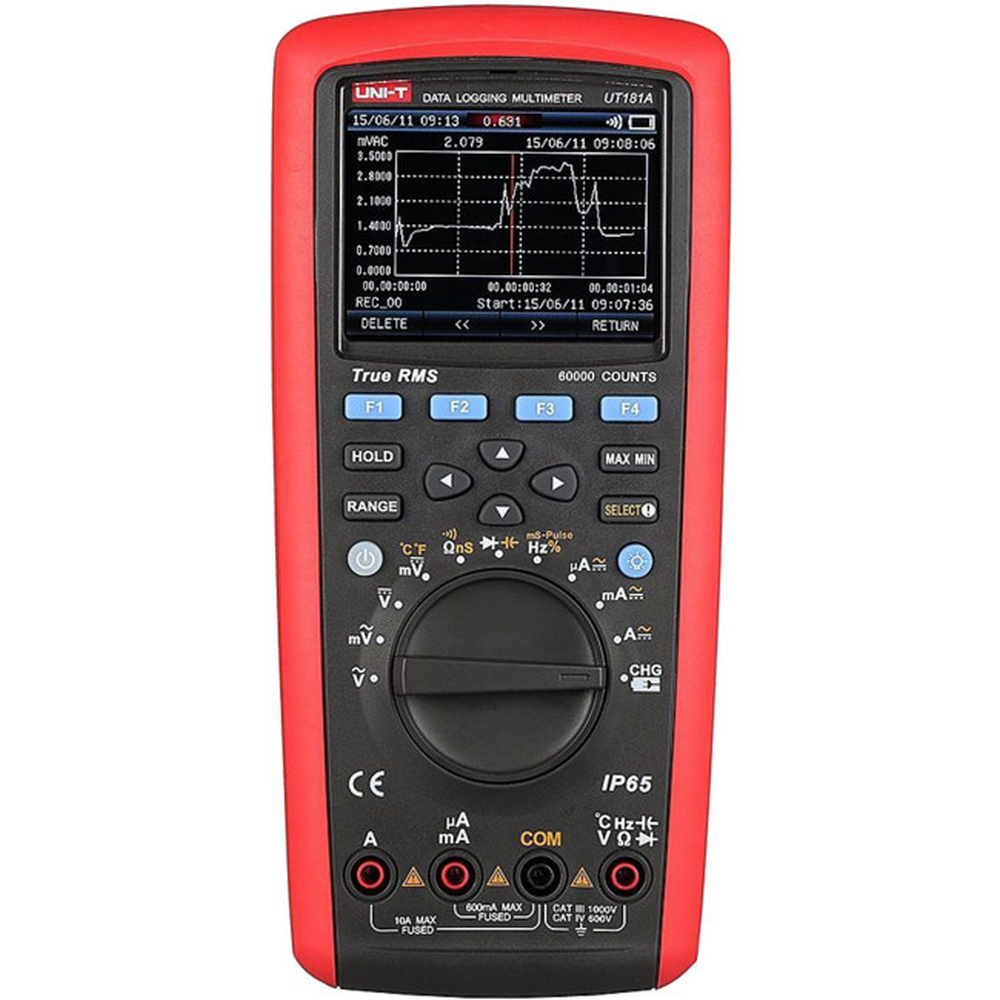

UNI-T UT181A True RMS CAT III 1000V IP65 USB Datalogging Multimeter

Image 1
$455.99

Collect 455 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout
Features
  • Trend capture function: can be a long time to monitorand record the signal change process and form a trend chart for comparison
  • Higher extended storage 2000 recorded data
  • Data filtering function: can set upper and lower values of any gear and the measured object is compared, and there is an overproof alarm
  • Provide more data, multiple readings can be displayedon the screen
  • Double temperature measurement: intuitive and real-time temperature contrast, improve work efficiency
  • Low pass filtering: can be used for the measurement of inverter and motor drives
  • IP65 waterproof, dust should be used for: humid environment and dusty environment
  • Powered by Li-ion: 2200mAh long endurance capacity donot replace the battery to save the cost of the purchase of battery
  • True RMS 100KHZ AC frequency response
  • 0.025% basic DC accuracy
  • Peak hold function can record fast to 250us transient
  • USB data transmission
  • Design meet IEC EN61010-1 CAT IV 600V/CAT III 1000V over voltage protection, EN61010-2-030 pollution level 2 anddouble insulation safety etc; wider application range; measurement is more secure, to ensure the safety of personnel and instrumentation.



Specification

Specifications

Range

Best Accuracy

Model



UT181A

DC Voltage(V)

60mV/600mV/6V/60V/600V/1000V

±(0.025%+5)

AC Voltage(V)

60mV/600mV/6V/60V/600V/1000V

±(0.3%+30)

DC Current(A)

600µA/6000µA/60mA/600mA/10A

±(0.08%+10)

AC Current(A)

600µA/6000µA/60mA/600mA/10A

±(0.6%+20)

Resistance(O)

600O/6kO/60kO/600kO/6MO/60MO

±(0.05%+2)

Admittance(S)

60ns

±(2%+10)

Capacitance(F)

6nF/60nF/600nF/6µF/60µF/600µF/6mF/60mF

±(2%+5)

Frequency(Hz)

10Hz-60MHz

±(0.01%+5)

Temperature(°C)

-40 °C~1000°C

±(1%+30)

Temperature(°F)

-40°F~1832°F

±(1.5%+50)

Features

Display Count



60000

Auto Range



Manual Range



True RMS



Bandwidth(Hz)

100kHz

AC+DC



Low Pass Filter

1KHz(-3db)

Dbv/dBm



Continuity    Buzzer



Diode

Around 3V

Duty Cycle

10% ~ 90%

Dual Temperature Measurement

T1, T2, T1-T2, T2-T1

Data Hold



Peak Hold



Relative Mode



Data Logging

20000

Trend Capture



MAX/MIN/AVG



Data Time Display



Data Comparsion



Display Type

3.5 Inches64K Color TFTL LCD (320*240)

Backlight Adjustment



Analogue Bar Graph



USB Interface



Mis-Plug Alarm



Battery Indication



Auto Power Off



Re-Chargeable    Battery



Input Protection



Input Impedance for DCV

=10MO

v

General Characteristics

Power

7.4V 2200mAh Li-ion Battery

LCD Size

70mm*52mm

Product Color

Red and Grey

Product Net Weight

638.6g

Product Size

103mm X 225mm X59 mm

Standard Accessories

Test Lead, Battery, Alligator Clip, PC Software CD, USB Interface, BNC Probe

Standard Individual Packing

Gift Box, Carrying Bag, English Manual

Standard Quantity Per Carton

20pcs

Standard Carton Measurement

480mm X 385mm X 505mm (0.085 CBM Per Standard Carton )

Standard Carton Gross Weight

26.5kg

Optional Accessories

Bluetooth Adaptor(UT-D07)




Specifications:

12 Months

GTIN: 6935750518113
