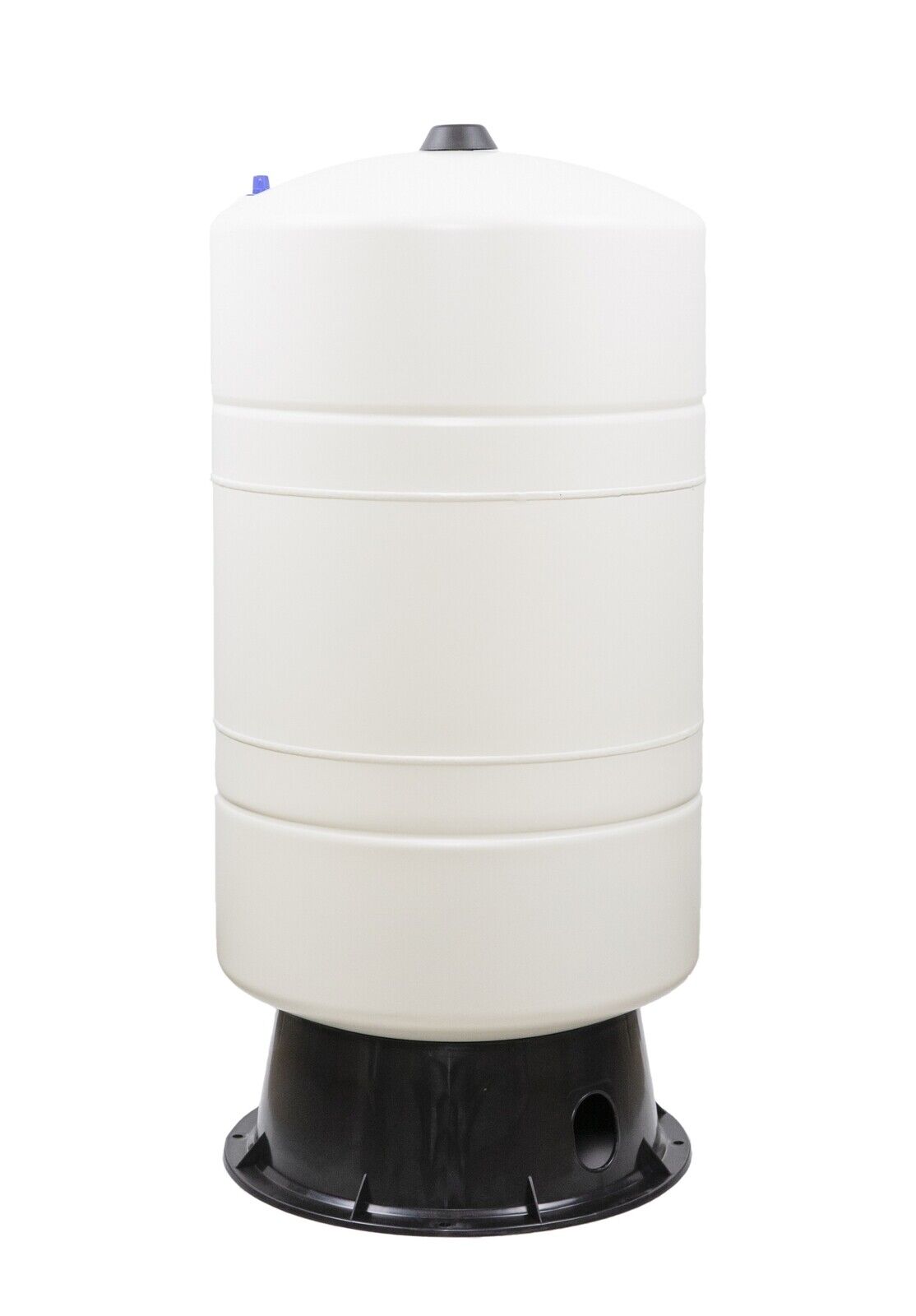

Rural Max Pressure Tank could be applied to a variety of drinking water systems, including turbocharging systems, thermal expansion, water pump systems, and protecting against water hammer.

Rural Max Pressure Tanks are made up of a natural polypropylene liner and high-quality butyl rubber diaphragm. These parts are fixed to the tank wall with a steel lock ring. The brass valve is sealed by the thread O-ring bonnet to prevent air leakage. Water enters the pressure tank through a stainless steel pipe. The diaphragm and liner have been strengthened in specified quick-wearing regions to prolong the tank’s life.

The external of the pressure tank is coated with a layer of double polyurethane paint over an epoxy undercoat, providing hundreds of hours of UV protection.

To ensure the structure and consistent quality of each pressure tank, it must pass multiple stages of quality testing during production.

• Height: 76 cm
• Width: 35 cm
