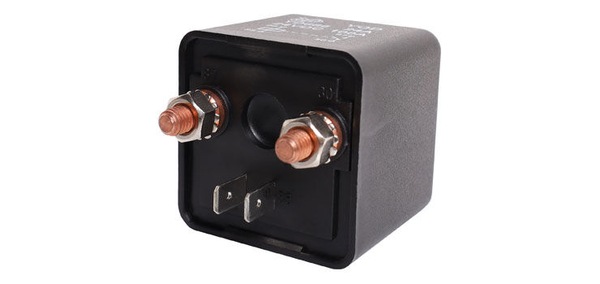

S4344 100A 24VDC High Current SPST Automotive Relay 4.8W Max Coil Power

Image 1
Image 2
$40.95

Collect 40 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

Suitable for high current DC automotive applications. Not suitable for AC use. M6 bolt for contact load connection. 6.3mm spade terminals for contact coil connection.


 Specifications

  • Max DC switching: 75V @ 100A / 2800W
  • Contact material: Silver alloy
  • Coil resistance: 30?
  • Max coil power: 4.8W
  • Insulation resistance:  >100M? @ 500V DC
  • Dielectric strength (for 1 min): 500V AC between open contacts
  • 750V AC between coil & contact
  • Connection: (Coil 6.3mm & M6 bolt for contact load)
  • Life: 100,000 operations electrical, 10 million mechanical
  • Dimensions: ?46W x 46L x 77H mm

    *Specifications are subject to change without notice.



GTIN: 9321758253755
