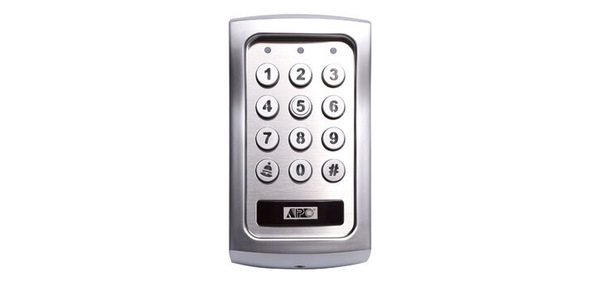

S5377A HID RFID Vandal Resistant Control Keypad with Card Reader

Image 1
Image 2
Image 3
$224.99

Collect 224 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

This weatherproof vandal resistant door keypad controller is designed for controlling a door strike in home or business security installations. It combines a digital keypad and proximity EM card reader in one unit. This unit also features a door bell ideal for guests and service members. There is two outputs for this unit. Output Relay 1: 2A Rating N.C & N.O. Contacts for Door Lock Actuation Control. Output Relay 2: 2A Rating N.C & N.O. Contacts for External Door Lock Actuation Control.

Features
  • Weatherproof design & construction (IP54)
  • Vandal Resistent
  • Compatible with optional controllers and reader keypads for system expansion
  • Built-in logics for stand alone, split-decoded and multi-station operations
  • Controls "Going In" with user codes/cards
  • "Going Out" with feature programmable egress button
  • Door Bell for guests/service persons /tradesmen
  • Stainless steel faceplate
  • Die-Cast Zinc Alloy Protection Bracket for Surface Mount

Specifications:

  • Operating Voltage: 12-24V DC, Auto Adjusting
  • Operating Current:
  • 62mA (quiescent) to 130mA@12V DC
  • 30mA (quiescent) to 61mA@24V DC
  • Storage and Operation Temperature: -20°C to + 70°C
  • Storage and Operation Humidity: 5-95% relative humidity non-condensing
  • Working Environment & Ingress Protection: all weather, IP 65
  • Number of Users: 1,000 (Codes and/or Cards) + 50 Duress Codes
  • Proximity Card: Standard EM Card or Keyfob, 125KHz, Manchester 64bit
  • Number of Visitor Codes: 50, programmable for one time or with time limit
  • Timings for Code Entry and Card Reading:
  • 10 seconds waiting for next digit entry
  • 30 seconds waiting for code entry after card reading
  • Timers: 1-99, 999 seconds (over 24 hours possible) Independent Programmable Timers for O/P 1&2
  • Egress Button: Programmable for Instant, Delay with Warning
  • Momentary or Holding contact for Exit Delay
  • Input Sensing Terminals: a) Door Position, b) Egress, c) O/P 1 inhibit
  • OutputControl Terminals: Transistor Open Collector 24V DC/100mA sink max for the following outputs a) Duress, b) Alarm Output, c) Inter-lock
  • Output Contact Ratings:
  • Output Relay 1 - N.C. & N.O. dry contacts, 2A/24V DC Max
  • Output Relay 2 - N.C. & N.O. dry contacts, 2A/24V DC Max
  • Tamper Switch - N.C. dry contact, 50mA/24V DC Max
  • Dimensions: 144 x 78 x 29/32mm
  • Weight: 380g net
  • Housing: Die-cast Zinc Alloy Protection Bracket
  • Faceplate Material: Stainless Steel

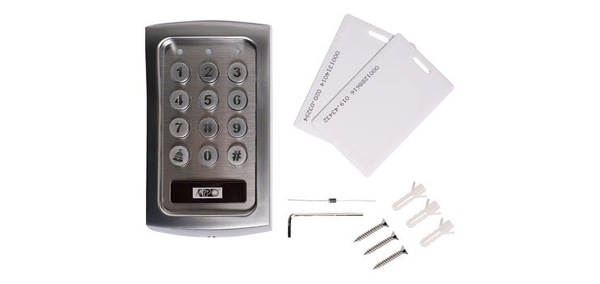

Package Contains:
1 x Keypad

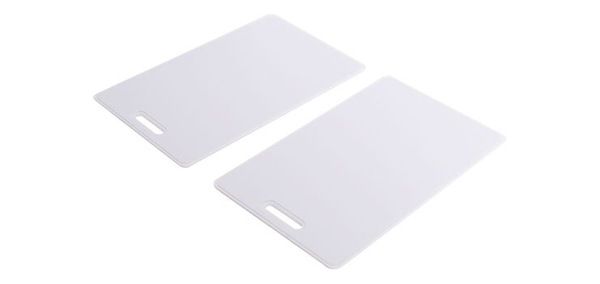

2 x EM Cards
1 x Mounting Screws
1 x Centre Pin Torx Screw Wrench
1 x User Manual


Specifications:

12 Months

SKU: S5377A
