Samson Audio 11cm Mono Passive Ground/Lift Metal Isolation Box Interface Black
,gravity=Center,allowExpansion)
Collect 89 Everyday Rewards points
Collect 89 Everyday Rewards points

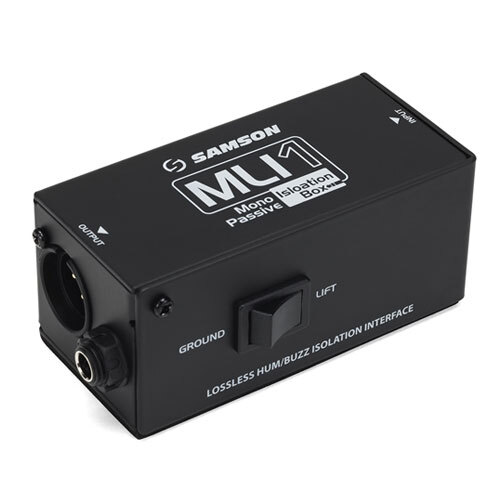

MLI1 is a line level passive isolation box designed to remove hum and buzz caused by ground loops, as well as to convert unbalanced signals to balanced signals for long cable runs.
Combining premium sound circuitry with durable, roadworthy construction, the MLI1 provides high-quality signal connection solutions for live, broadcast and studio applications.
The Ground Lift switch disconnects the ground from the Input and Output connections which eliminates hum caused by ground loops.
Features:
Mono line isolation box eliminates hum and buzz caused by ground loops
Samson STL transformer isolates input and output signals
Flexible connectivity with 1/4" and XLR input and output connections
Ruler flat frequency response from 10Hz–35kHz
All-metal, impact resistant design
Includes:
1x Mono Passive Isolation Box
Colour: Black
Dimensions: 110 x 54 x 46mm
Frequency Response: 10Hz–35kHz (±0.2dB typical), up to 75kHz (-1dB)
Dynamic Range: >140dB
Maximum Input: +15dBu @ 41Hz for <1% THD+N
Gain: +0.2dB
Rejection: 50/60Hz 126dB typical
Equivalent Input Noise: -115dBu
Intermodulation Distortion: 0.003%
Total Harmonic Distortion: 0.0006%
Input Impedance: 7.7kΩ
Output Impedance: 600Ω nominal
Ground Lift: Disconnects ground from input to output connectors. Case is always grounded to outputs.
Connectors: Input: XLR-1/4" combo, Output: XLR + 1/4" TRS
Chassis Construction: Powder coated, 14-gauge steel
Weight: 0.7lb / 0.32kg
GTIN: 809164022329
