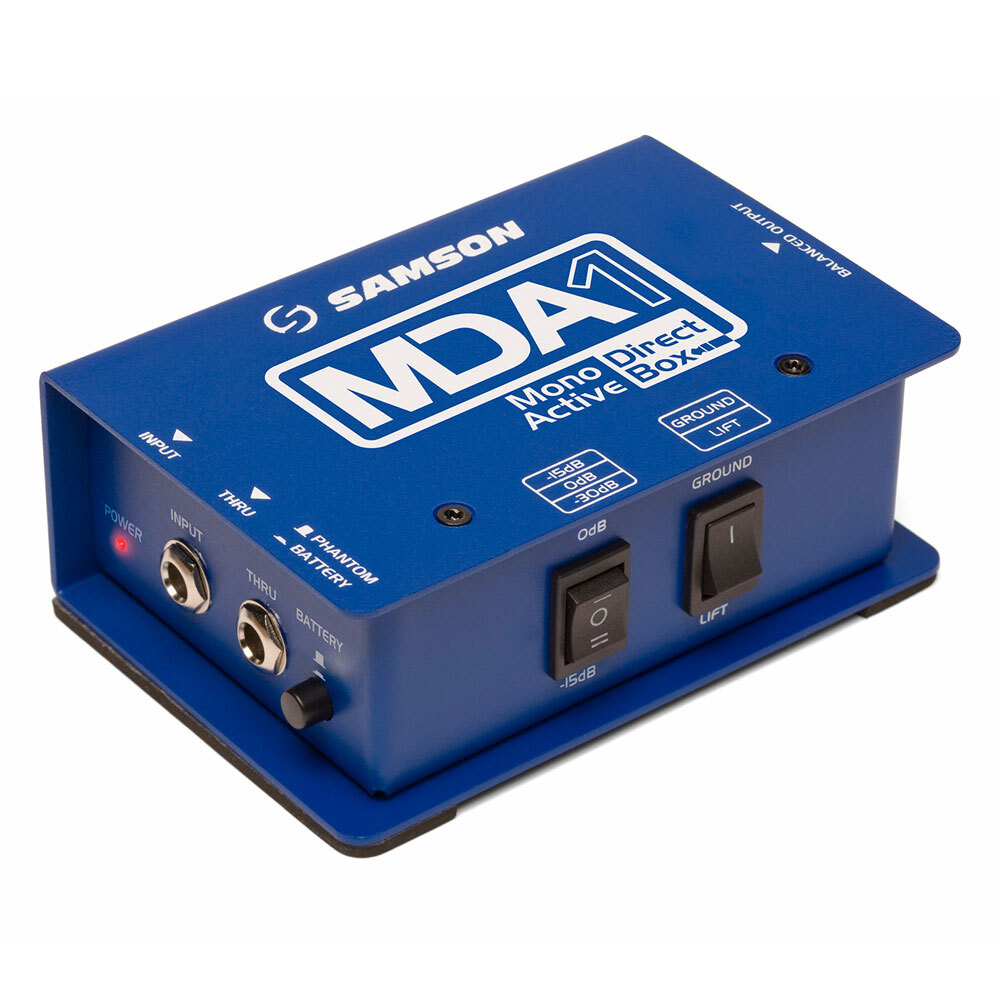

Samson MD1 Mono Active Direct Stand combines premium sound circuitry with durable, roadworthy construction, providing high-quality signal connection solutions for live sound and recording studio applications.
The MDA1 operates on either batteries or phantom power and allows clean, balanced lines to be sent from your guitars and basses.
The MDA1 Mono Active Direct Box is ideal for running longer signals to your mixer in high interference environments.
An input attenuator lets you adapt the MDA1 to a wide variety of signals, while a ground lift switch enables you to further remove hum and buzz. The MDA1 can run on Phantom Power or a 9V battery.
All-metal, impact-resistant design

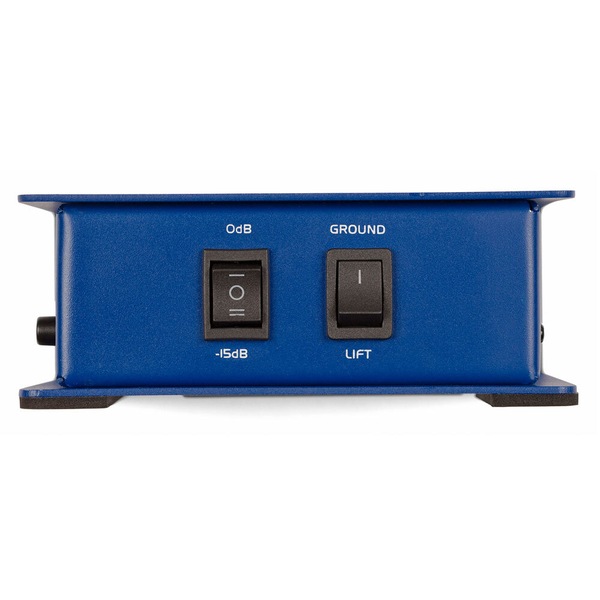

2-position 0dB/-15dB attenuation switch
Ground Lift switch

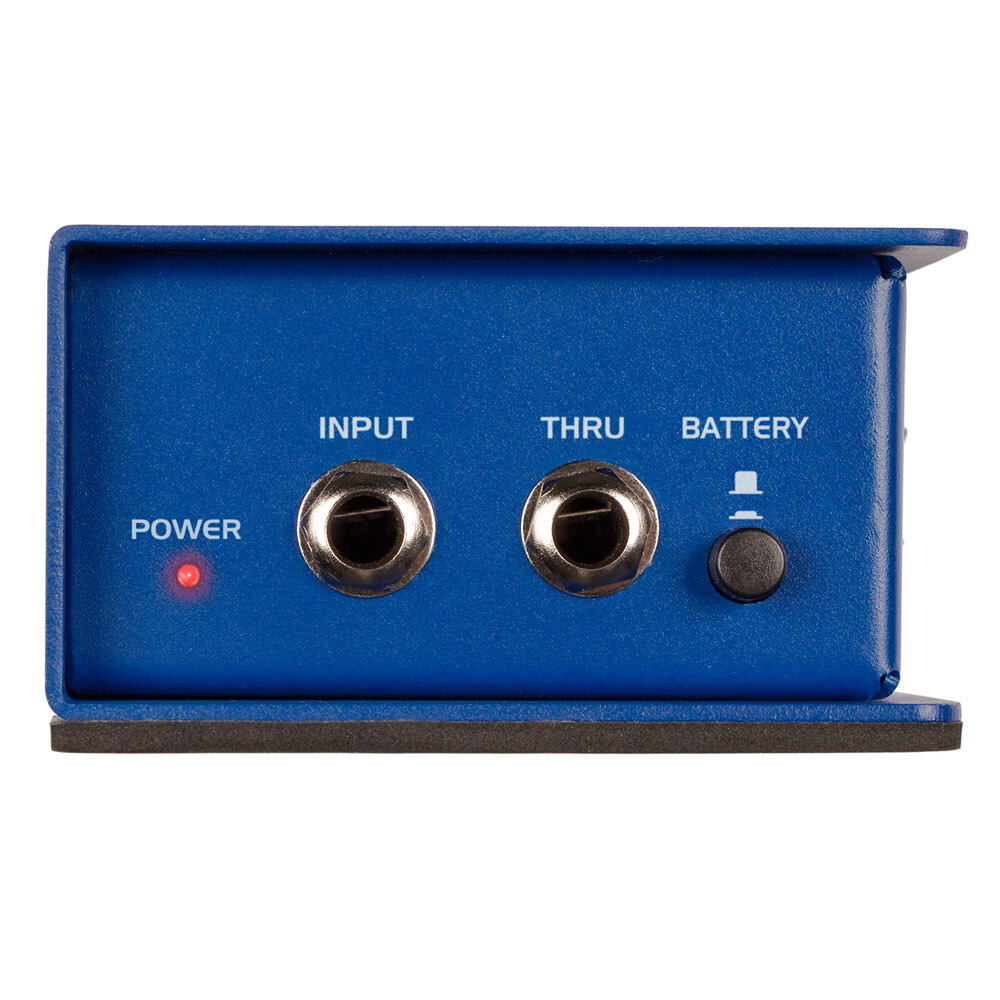

1/4" Input and Thru

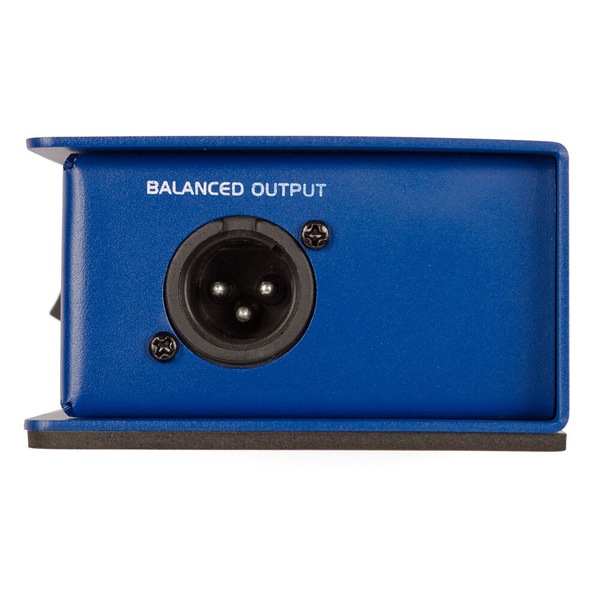

Balanced XLR output
48V Phantom and 9V Battery power options
Frequency response of 18Hz–35kHz
Ideal for guitars and basses
Runs on Phantom Power or single 9V battery • 3-position Pad switch (0dB, -15dB, -30dB)
Includes:
MD1A Direct Box
Manual
Colour: Blue
Type: Mono Active Direct Box
Frequency Response: 18Hz to 35kHz -3dB
Maximum Input: +2dBu (9 Volt Battery)
Gain: +4.8dB
Dynamic Range: 105dB @ Balanced Output
Noise Floor: -98dB (Pad Off)
Total harmonic distortion: <0.05% from 18Hz to 35kHz
Input impedance: 1MΩ (Pad On or Off)
Output Impedance: 200Ω
Input PAD Switch: 0dB, -15dB
Ground Lift: Disconnects XLR pin-1 (Output)
Connectors: 1/4” Phone Jack, unbalanced (In & Thru) XLR balanced (Output)
Power Supply: 48V Phantom Power or 9 Volt battery
Construction: 14 Gauge Steel Chassis
Dimensions: 127 x 86 x 50 mm
Weight: 611g
This item comes with a 12-month warranty.
