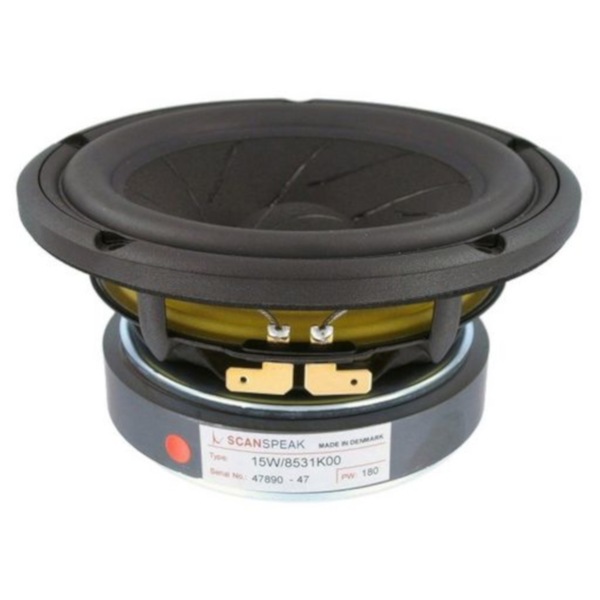

Scan Speaker 5 Mid Woofer Sliced Paper Cone Large Ferrite Magnet Revelator

Scan Speaker 5 Mid Woofer Sliced Paper Cone Large Ferrite Magnet Revelator

Be the first to review this product

Price	$369.90
	Collect 369 Everyday Rewards points Create a MyDeal Account or Login to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

15cm Midwoofer 8 ohm, Sliced Paper Cone, Large Ferrite Magnet

REVELATOR

The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.

Patented Symmetrical Drive Motor Design
Low-Loss linear suspension
Die cast Alu Chassis vented below spider

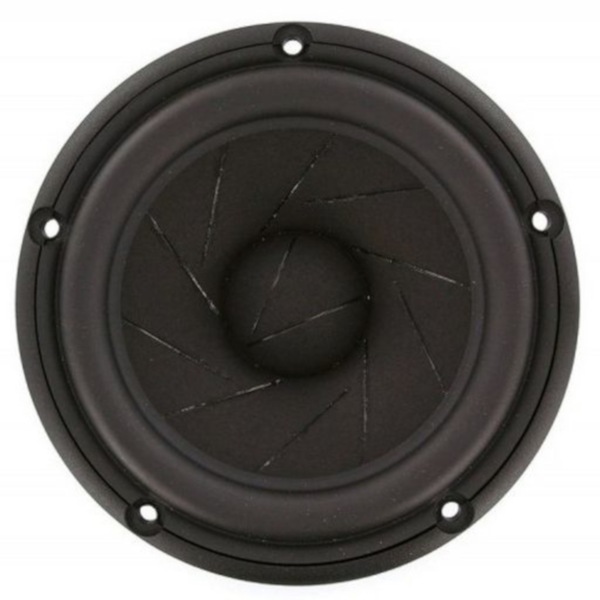

Sliced Cone (Controls Cone Breakups)
Low Damping SBR Rubber Surround
Large Ferrite Magnet System

Code	15W/8531K00
Description	15cm Midwoofer 8 ohm, Sliced Paper Cone, Large Ferrite Magnet
Impedance	8Ω (Re 6.8Ω)
Power	60Wrms
Fs	32Hz
Sens.	85.5dB
Qes	0.33
Qms	5.23
Qts	0.31
Cms	1.90mm/N
Coil	38mmØ

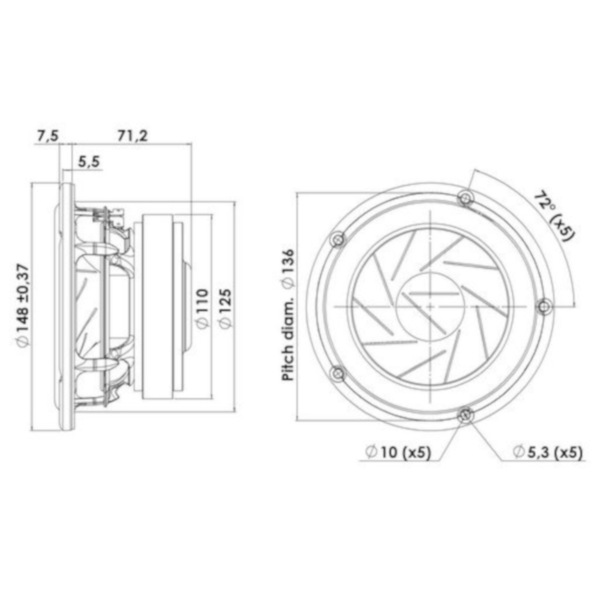

Depth	71mm
Impedance (Ohm)	8 ohm
Inch	5.5
Le	0.35mH
Mag.	1.7kg
Mms	13g
Power (RMS)	51-100 Watt
Re	6.8Ω
Rms	0.50kg/s
Sd	95cm²
Size	5.5"
Type	Mid-Woofer
Vas	24.0L
Width	148mm
Zn	8Ω

Specifications:

12 months

MPN: 15W-8531K00
