ZYCAST Single Input HD ModulatorÂ
The replacement of the industry's most popular modulator,HD-1603, accepts a 4K signal and will loop-through that samesignal, however modulated signal is still limited to 1080P, due to the limitations with TV tuners.
We have been testing the new Q4K-R1 for months now, whilethe Q4K-R1 is not the first 4K modulator on the market, it'sthe first stable 4K modulator. Like the HD1603, the Q4K-R1 supports Resi-linx IR targets and emitters. Resi-linx are the market leader in both IR and modulation and the only brand to have Foxtel approved product in both fields.

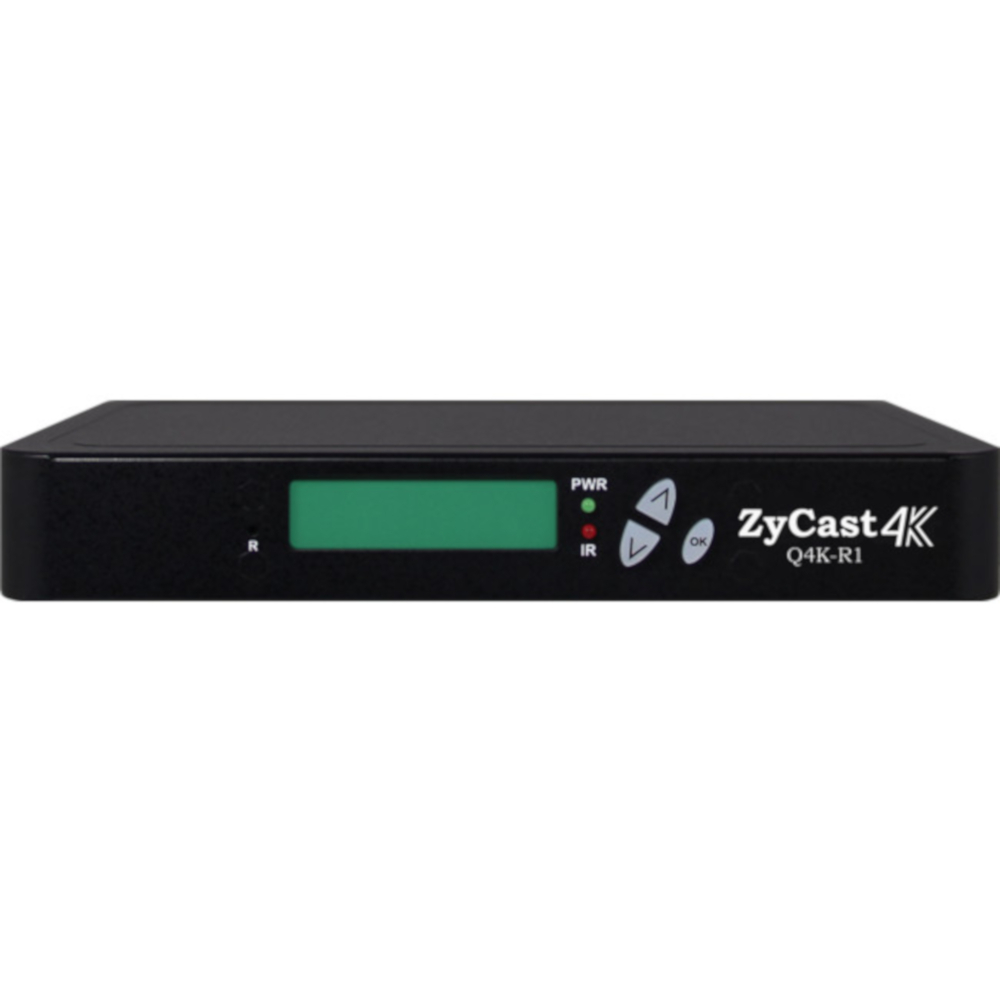

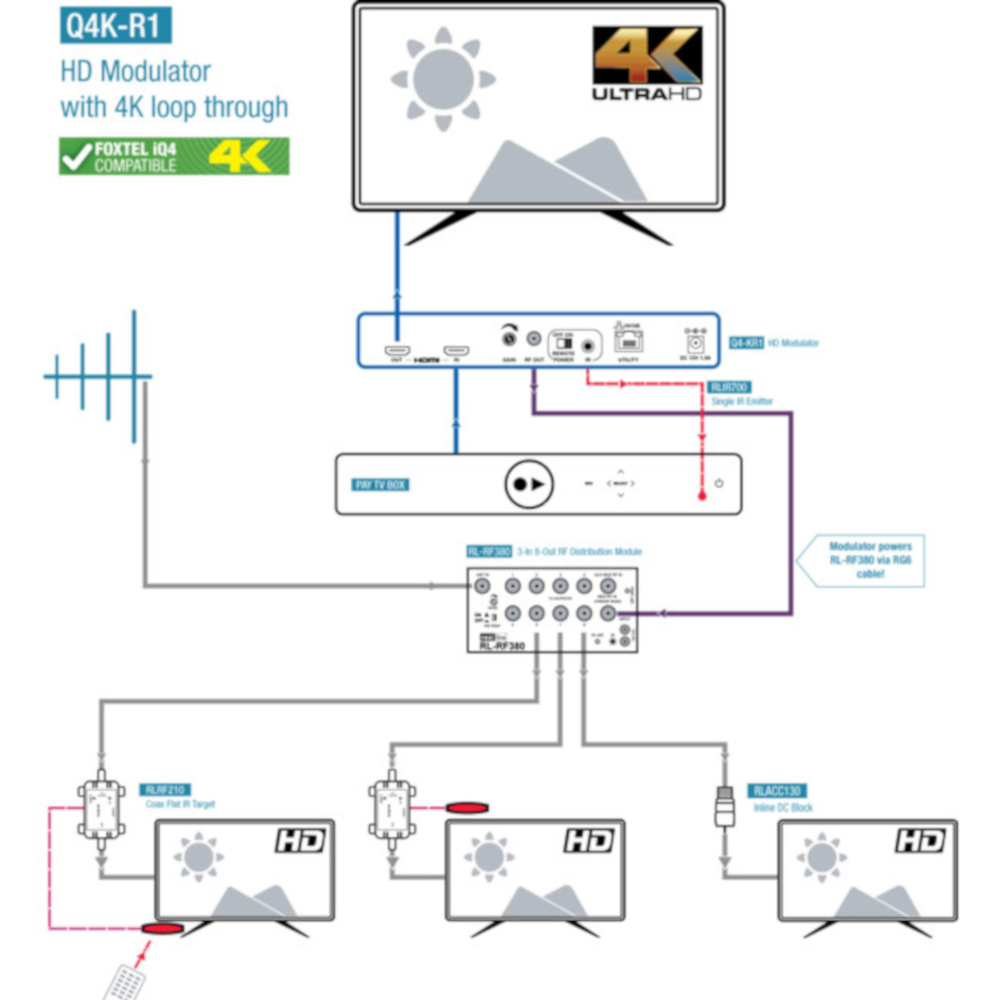

This unit has full menu via LCD display, improved MER resulting in higher quality picture and is configurable for New Zealand. Q4K-R1 allows you to distribute any HD source around your home/business installation over coax cable and control with ease.
{tab Specifications}
Video/ Audio Encoding Profile
|
|
Video |
|
Resolution |
1080p / 1080i / 720p |
Video Codecs |
H.264 |
Audio |
|
Audio Codecs |
MPEG1 Layer II MPEG4 AAC |
General
|
|
Local Monitoring |
LCD |
IR Emitter |
Single |
Web GUI Supported |
Firefox, Chrome, Safari |
Password Protected |
GUI:User Settable |
Power Supply |
12VDC 1.5A |
Consumption |
6.5 Watts |
Operation Temperature |
0c to +45c |
Storage Temperature |
-20c to +70c |
Dimension |
236mm x 145mm x 34mm |
Weight |
TBD |
Language |
English |
Â

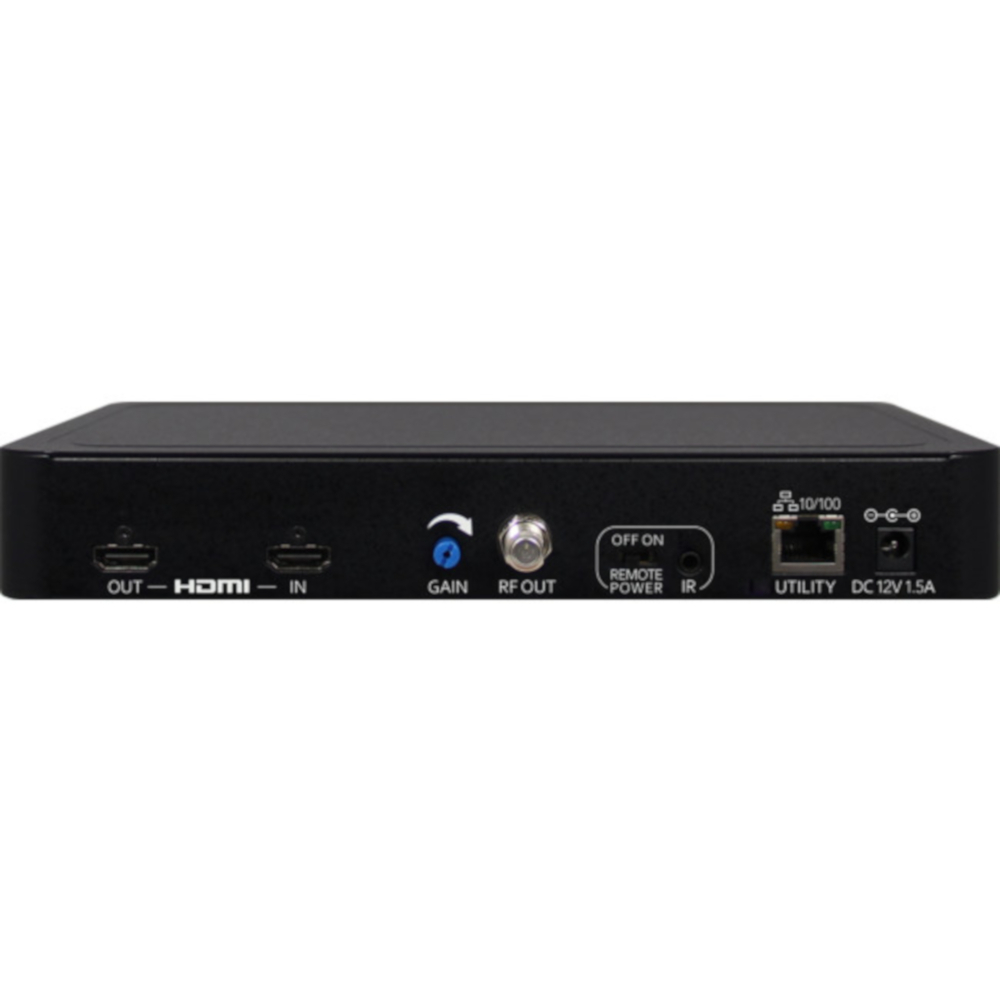

Video / Audio Input
|
|
HDMI 2.0 |
|
Connectors |
Dual (One for Input ; One for Loop-through) |
Audio |
Embedded PCM |
HDCP Compliance |
1.4 and 2.2 |
Resolution |
4k / UHD / 1080p / 1080i / 720p |
Output
|
|
QAM |
|
Standard |
DVB-T |
Connector |
1x "F" Female |
Frequency Range |
177.5MHz to 816.5MHz (Ch6-Ch69) |
 Output Level |
85 dBµV Typical (With 20dB Range Manually Adjustable) |
Flatness Across Full |
± 2 dB |
MER |
39 dB Typical |
Carrier (OFDM Mode) |
2K / 8K |
Guard Intervals |
1/32 |
Code Rate (FEC) |
7/8 |
Modulation |
64-QAM |
Output Impedance |
75 ohm |
RF Output Return Loss |
10 dB Typical |
LCN |
Embedded, Varies by Country Regulations |
