Solar Powered Stainless Steel Farm Gate Opener with Automatic Electric Gate Lock

Solar Powered Stainless Steel Farm Gate Opener with Automatic Electric Gate Lock

Limited Stock

$875

Collect 875 Everyday Rewards points

Free Shipping

Dispatch in 2 business days

Sold & shipped by Wholesale Gate Openers

Secure ways to pay at checkout

(0)

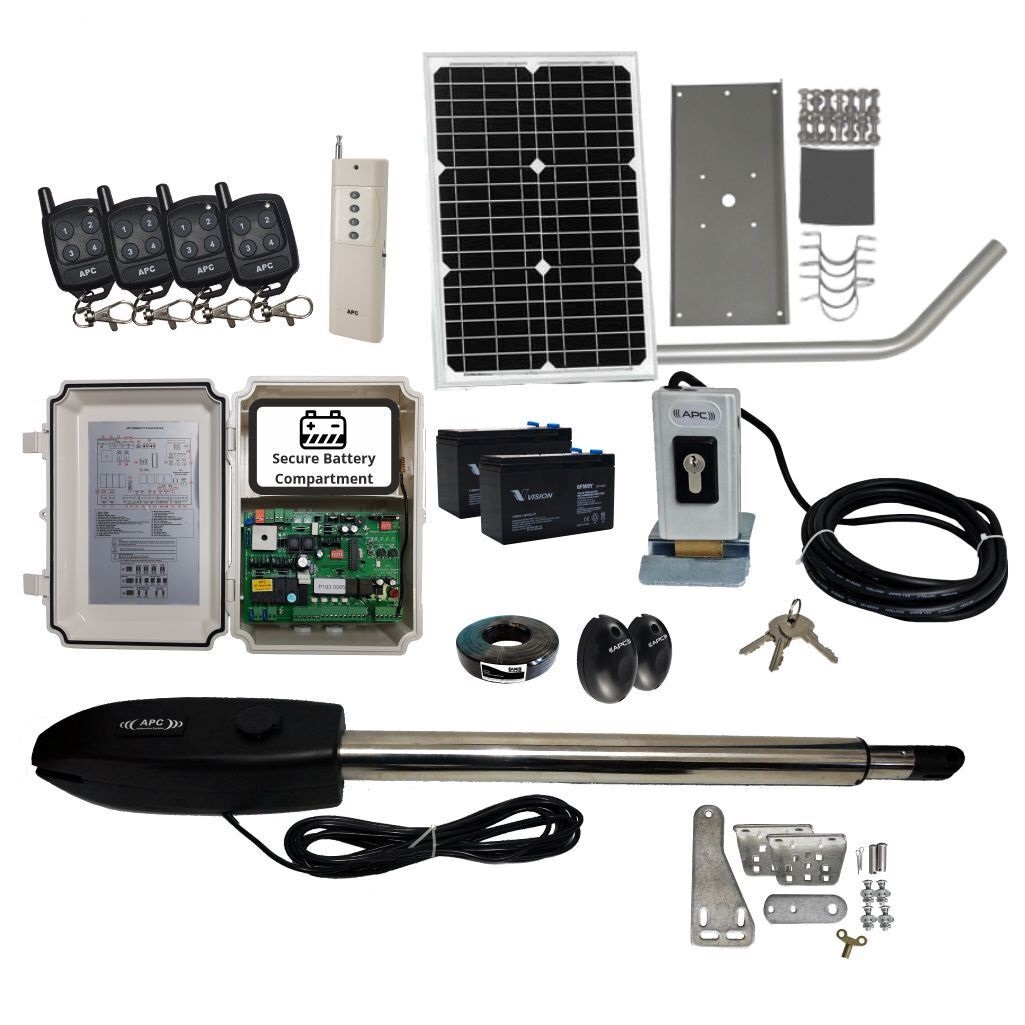

Kit Includes

Slimline Stainless Steel Linear Actuator Kit (QTY: 1)
Weatherproof Control Box with Built in Battery Compartment (QTY: 1)
Four Button Keyring Remote (QTY: 4)
Four Button Long Distance Remote (QTY: 1)
7aH High Capacity Battery (QTY: 2)
Gate Sensor | Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
10m 4 Core Non Shielded Cable (QTY: 1)
24v 20 Watts Solar Panel (QTY: 1)
Solar Panel Fence Post & Bracket for 20 Watt Solar Panels (QTY: 1)
24V Automatic Electric Gate Lock (QTY: 1)

Product Information

Heavy Duty Slimline Stainless Steel Telescopic Linear Actuator

Heavy Duty 24V Motor with powerful and quiet operation comprised of a cast alloy rear housing and a stainless steel piston for the ultimate compact design and neat appearance Easy to use manual override using the supplied butterfly key in a emergency situation. The system can handle light and heavy gates up to 250kg maximum weight or up to 3.5m maximum length.

Emergency Clutch Override

Easy manual override in case of an emergency using the supplied butterfly key, slot in and turn clockwise to operate the gates manually.

All Metal Gears

Powerful and whisper quiet 24V motor and all metal gears

Actuator Specifications

Gear Type	Metal Lead Screw, All Metal Gears
Motor Voltage	24v DC
Manual override	Via override butterfly key supplied
Working temperature	-10° - 50°
Duty Cycle	20%
Maximum stroke	350mm
Gates size	3.5m max
Gate weight	250kg max

Installation Geometry

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security

System Features

Standalone Solar System
High Capacity Battery System
Built In Solar Regulator
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes

Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output

Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. Wired and wireless Accessories can also be use to control the Lock 2 function.

Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Lock Output

Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

24V 20 Watt Solar Panel (Upgradable to 20 Watt or 60 Watt options)

Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.

Specifications
Maximum Power	20W/40W/60W
Optimum Operational Voltage	36V
Open Circuit Voltage	43.2V
20W Panel Dimensions	640 x 300 x 25mm
40W Upgrade Panel Dimensions	535 x 515 x 30mm
60W Upgrade Panel Dimensions	805 x 535 x 30mm

24V 9aH Battery System

Supplied with the automation kit the 24V 9aH battery system will allow for continued use of the gate system weather in day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sunlight. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use. In a case of extended use requirements or higher duty there are upgrade options to 17aH and 33aH battery systems.

Remote Features

Specifications

Power Input	20W 24V Solar Panel (Upgradable)
Regulator	Built In On Board Regulator
Motor Output Voltage	24v DC
Battery System	24V 9aH (Upgradable)
Working temperature	-10° - 50°
RF	Rolling code 433.92mhz
Lock Output (Primary)	24V DC
Lock Output (Secondary)	12V DC
Auxiliary Inputs	0V Momentary Pulse
Accessories Voltage	24V DC
Over current	1A to 5A

Long Distance Remote

The RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances you can operate the gate system from around the property, at the home or from the workshop. Multiple long range remotes can be used on the one system.

PE2000 Photoelectric Safety Sensor Set

The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

Up to 15 Metres Infrared beam operating distance

Only powers on when the command is given to close the gates

Alignment led to assist in the installation process

Weather sealed with the supplied cover seals

Easy screw down wiring termination

Automatic Electric Lock

The 24V electric gate lock is a completely automatic solution to lock the gate once reaching the closed position and automatically unlock as soon as the command is given for the gates to operate whether by remote or any other accessory.

The electric gate lock will connect horizontally to the gate on the furthest side away from the hinge. When closing it will engage into its armature plate on the adjacent post. The armature plate is a blank canvas and can be welded or screwed to the post. The electric lock itself is wired back to the control board by the supplied 6 metre cable

Specifications:

Kit Includes

Slimline Stainless Steel Linear Actuator Kit (QTY: 1)
Weatherproof Control Box with Built in Battery Compartment (QTY: 1)
Four Button Keyring Remote (QTY: 4)
Four Button Long Distance Remote (QTY: 1)
7aH High Capacity Battery (QTY: 2)
Gate Sensor | Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
10m 4 Core Non Shielded Cable (QTY: 1)
24v 20 Watts Solar Panel (QTY: 1)
Solar Panel Fence Post & Bracket for 20 Watt Solar Panels (QTY: 1)
24V Automatic Electric Gate Lock (QTY: 1)
