Solar Waterproof PWM Charge Controller 6V/12V 5A

Image 1
$49.90

Collect 49 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

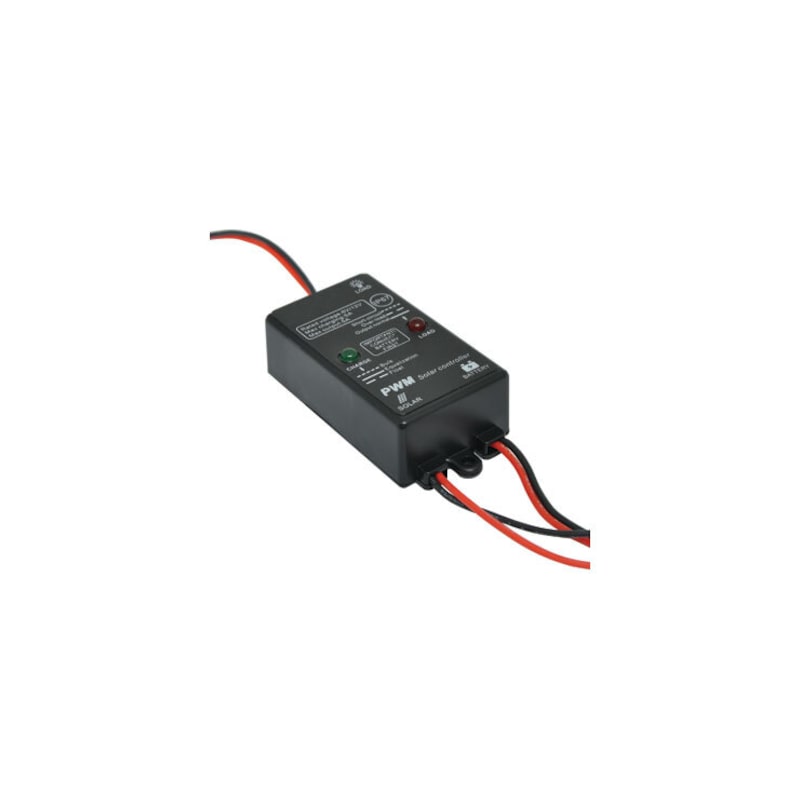

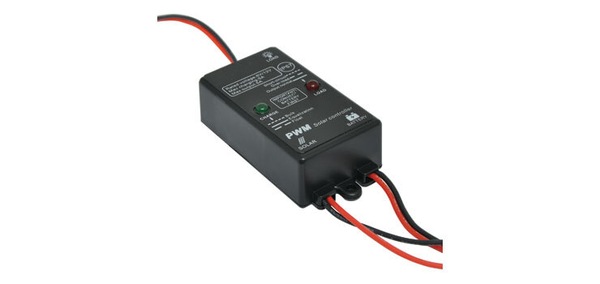

This compact PWM solar charge controller is ideal for 6V & 12V battery systems and provides a max charge current up to 5A (suits solar panels up to 60W). The entire PCB assembly is housed in an epoxy filled housing measuring just 80Wx37Dx22Hmm. The internal circuitry provides protection against several conditions which can potentially damage your battery or the controller itself. These include over charge, over discharge, over current, reverse polarity and short circuits (when used with a 5A protection fuse).

  • Waterproof IP67
  • Rated Voltage:DC 6V/12V
  • Max input VOC: 11V(6V) / 22V(12V)
  • Max Current: 5A
  • Voltage of solar panels: 30W (5A,6V)/60W (5A,12v)
  • Float: 13.8V
  • Charge reconnect: 6.5V (6V) / 13V (12V)
  • Discharge stop: 5.6V(6V) / 11.2V(12V)
  • Discharge reconnect: 6.3V(6V) / 12.6V(12V)
  • Working Temp:-10- +40°
  • Weight:80g
  • Dimensions: 8L x 3.7W x 2.2Hcm

SKU: N2005
