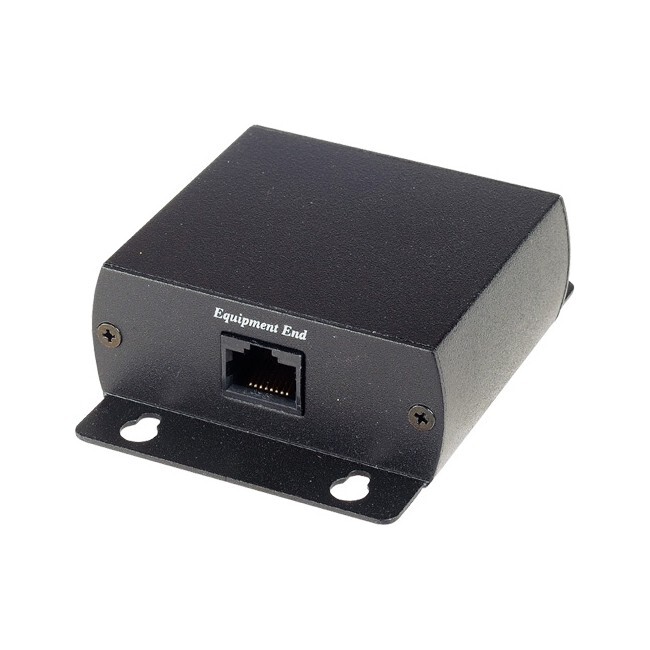

SP006 Network 8.7cm Surge Protector RJ45 Jack for CCTV Home Security Camera BLK

Image 1
Hurry! 4 items left!
$89.10

Collect 89 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by KG Superstore
Secure ways to pay at checkout

Popular Products

SP006 SURGE PROTECTOR

Specifications:

  • RJ45 Jack to RJ45 Jack, Hi Frequency for both CCTV and CATV use

  • Four Pairs protection

  • Surge Protection Attack Time: 1 ns

  • Maximum Surge Current: 4 KV

  • Surge Life:300 surges of 100Amps

  • Normal Resistance Across Coax: 10,000 M£[

  • BANDPASS: 0~1 GHz

  • Power Passing Capability 130V AC/DC, 65 Vrms at 10Amps

  • Insertion Loss: Less than 0.2 dB

  • Return Loss (75 ohms):16dB

  • Return Loss (75 ohms): 16dB

  • Dimension: 87 x 67 x 27 mm

  • Weight: 134g

Features:

  • Protects equipment from high voltage surges from nearby lightning strikes.

  • Two stage protection: under 1ns-90V, over 10ns-12V.

  • Wide range of applications: CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR etc.

  • Protects UTP Twisted Pair transmission products


Specifications:

RJ45 Jack to RJ45 Jack, Hi Frequency for both CCTV and CATV useStandard Consumer Warranty

GTIN: 9328202030283

Estimated Delivery Time Frame:2-7
