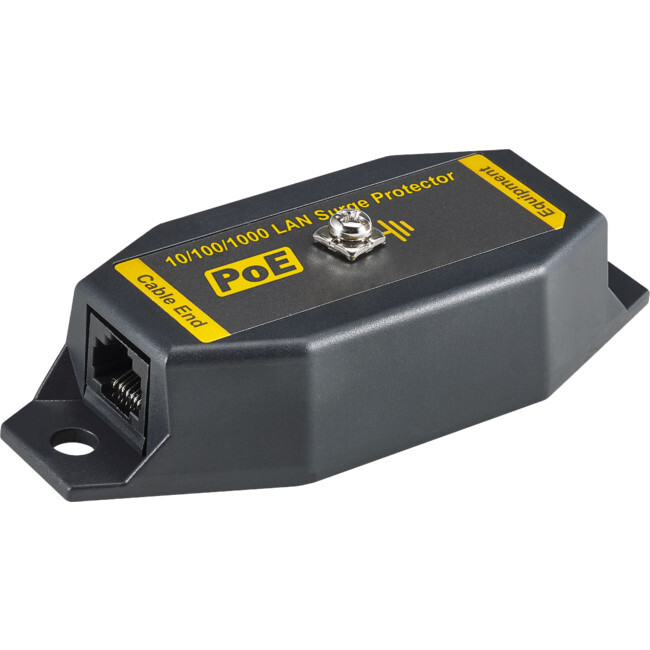

SP06PG 6KV PoE 10/100/1000 LAN Surge Protector/Connector w/ 4-Pair Power Black

Image 1
Image 2
Image 3
Hurry! 13 items left!
$60.30

Collect 60 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by KG Superstore
Secure ways to pay at checkout

Popular Products

The SP06PG can be used for all kinds of LAN equipment, supporting the highest speeds (gigabit) and largest POE budgets including the latest 802.3bt. With IP CCTV and wireless access points being exposed to weather, ensure you place an SP06PG at the far ends of the cable runs, as close as possible to the hardware.

Features
10/100/1000 Base-T PoE LAN surge protection
IEEE802.3af/at/bt and 4-pair PoE compatible
Mid-Span and End-Span signature supported
RJ45 Jack to RJ45 Jack
6KV surge protection (IEC-61000-4-5)
4-pair Power and signal line protection

Specifications
Surge Protection Attack Time: 1 ns
Maximum Surge Voltage: 6KV
Surge Life: 30000 times surges at 6KV
Normal Resistance Across Cord: 10,000 MO
Surge Resistance: Approx. 0O
Power Passing Capability: Max. DC 60V, Up to 90W depending on the standard: Max. current 0.9A on data
Insertion Loss: Less than 0.5 dB
Return Loss (75 ohms): 16dB
Connectors Type: RJ45 Jack x 2 ( In - Out)

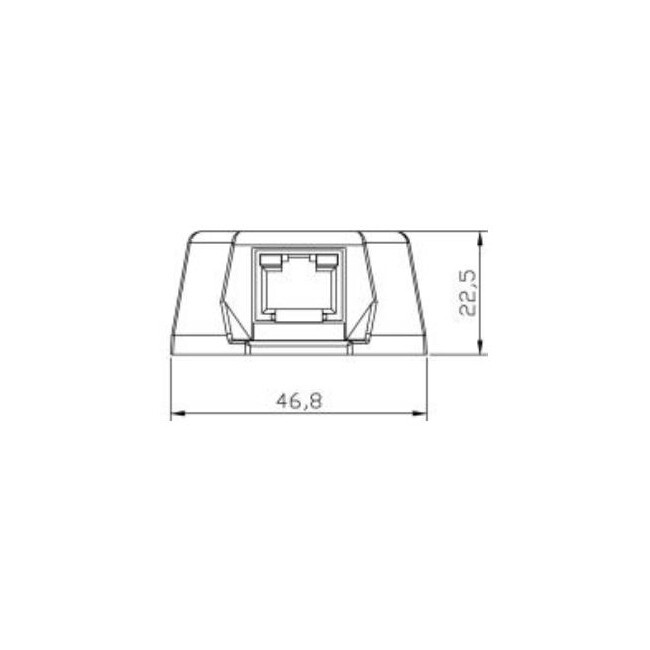

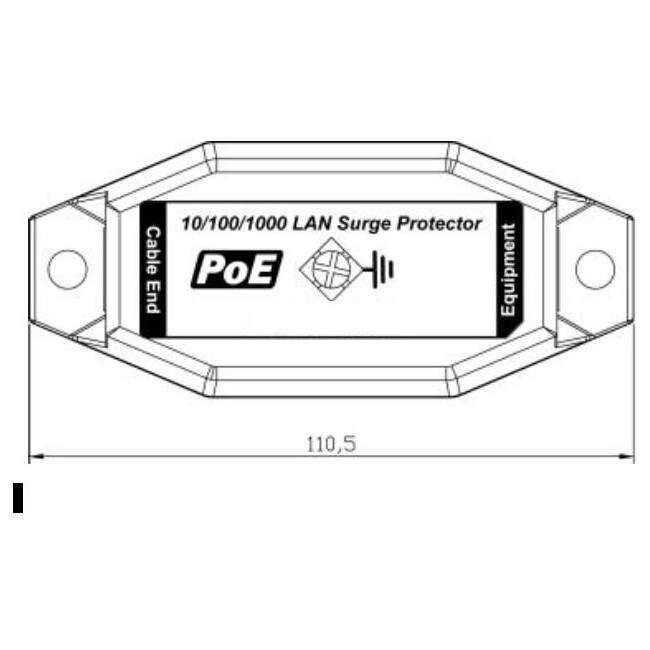

Dimensions Approx.: 46.8 x 22.5 x110.5 mm (WxLxH)
Weight: <50 g


Specifications:

Standard Consumer Warranty

MPN: SP06PG
