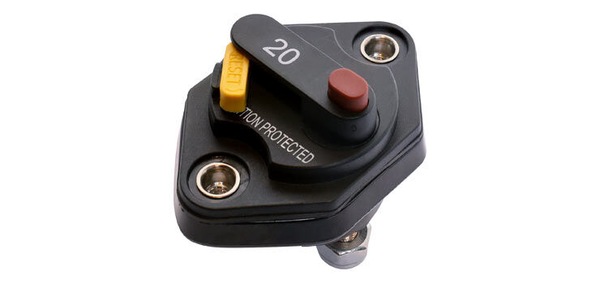

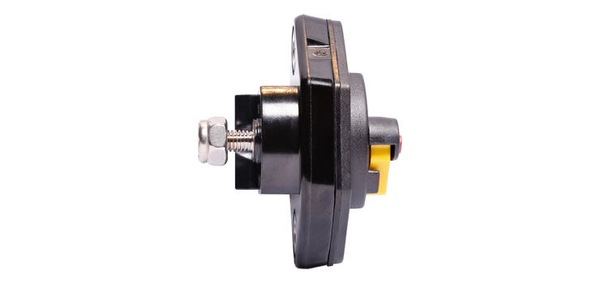

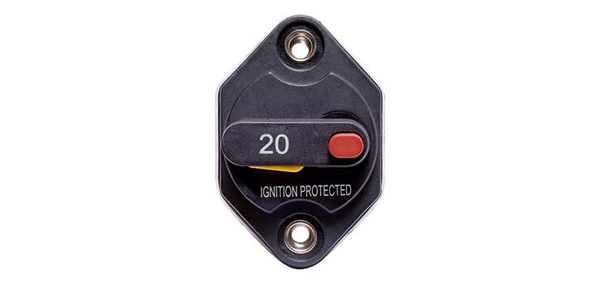

SS5882 Compact Panel Mount IP66 Waterproof Mount Circuit Breaker 20A DC

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
$49.90

Collect 49 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Bourne Superstore
Secure ways to pay at checkout
Overview

This 20A high current panel mount circuit breaker is ideal for use in 12V or 24V DC power systems. It's compact profile design takes up minimal space on your switch panel and can be easily reset using the lever switch.  It features a IP66 weatherproof casing with M6 terminal bolts for connection to power cabling. Typically used in auxiliary and accessory circuits in automotive and marine applications. Also suitable for battery charger designs. Tested to SAE J553, ABYC E-11 & SAE J1171 (ignition protected).

Specifications
  • Max. Voltage: 32V DC
  • Rating: 20A DC
  • Interrupt Rating: 3000A @ 32V DC (as per SAE & ABYC E-11)
  • IP Rating: IP66
  • Operating Temperature: -40°C to 85°C
  • Testing: SAE J553, ABYC E-11 & SAE J1171
  • Material: UL94V-0
  • External Dimensions: 55H x 37W x 33mm

    *Specifications are subject to change without notice.

GTIN: 9321758256794
