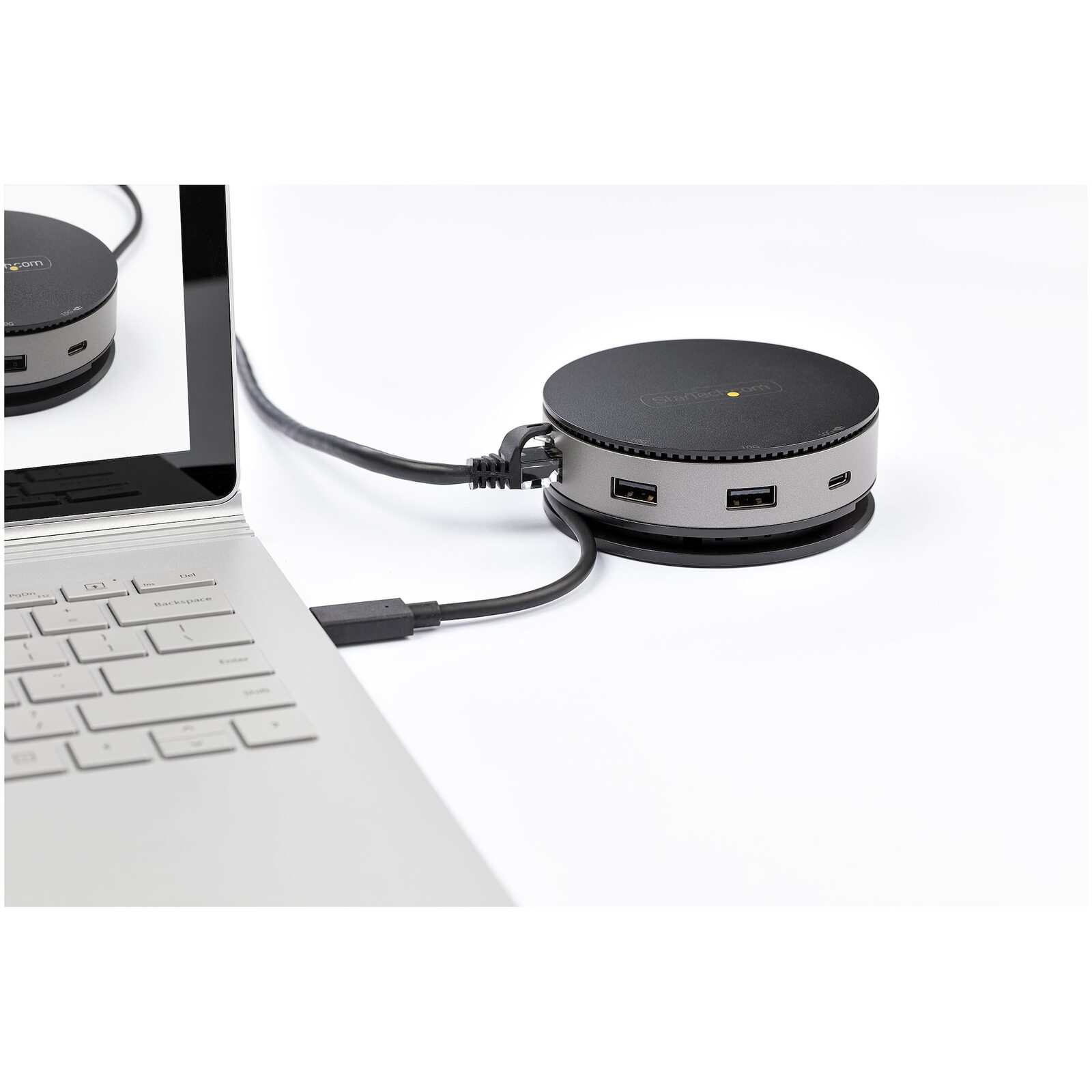

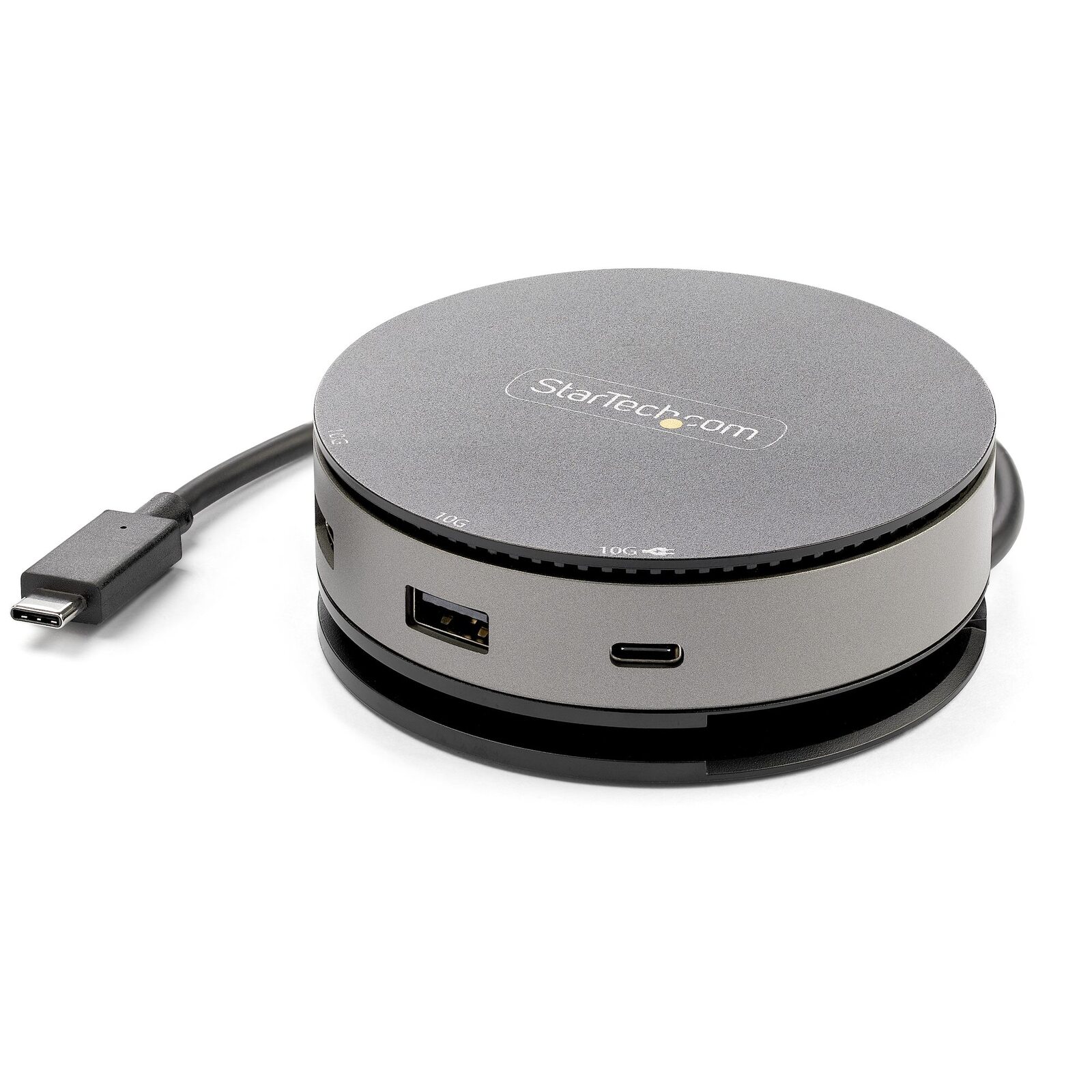

USB-C 10Gbps Mini Dock 4K60Hz HDMI/DisplayPort/1080p VGA

This USB-C Gen 2 10Gbps multiport adapter, with backward USB-C laptop compatibility, turns your USB-C ® or Thunderbolt™ 3 Windows laptop, MacBook Pro, iPad Pro, Surface, Chromebook, or Android tablet into a workstation, anywhere you go. The USB 3.2 Gen 2 Type-C hub adapter features a unique portable, circular design and all of the essential connections

  • HDMI, DisplayPort, VGA video options
  • 10Gbps USB-C & USB-A peripheral ports
  • Attached 24cm (10 in) USB-C® host cable
Three Video Output Options

This USB-C multiport adapter features HDMI, DisplayPort, and VGA ports providing you with three  single video output options for your workstation setup or boardroom presentations including support for an ultra-wide monitor.

  • HDMI (Up to 4K 60Hz with DP 1.4 and HDMI 2.0 HDR)
  • DisplayPort (Up to 4K 60Hz with DP 1.4)
  • VGA (Up to 1080p)
Designed for Portability & Ease of Use

The USB-C travel dock features a compact circular design and an attached extended length 24cm (10 in.) host cable, accommodating a wide variety of setups. Bus-powered for most applications, there's no need to carry around a separate bulky power adapter. If extra power required, you can use your external USB-C laptop power adapter with support for up to 75W Power Delivery pass-through (15W for docking station & rest for charging).

Installation is fast and simple, with native support in most operating systems, and at only 7 ounces (198 g) and taking up less space than your smartphone, this dock easily fits in your laptop bag or briefcase with a convenient wraparound cable.

Essential Port Configuration

In addition to the video outputs, the portable USB-C dock gives you two 10Gbps USB-A ports and one 10Gbps USB-C port to connect the latest and legacy USB devices. The adapter also integrates a Gigabit Ethernet port to access a wired network.


Specifications:

HDMI, DisplayPort, VGA video options

Connector(s)
Connector Type(s): DisplayPort Receptacle : Ethernet Gigabit Receptacle Latching: HDMI Receptacle : USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps) Receptacle : USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Receptacle : VGA (15 pin, High Density D-Sub) Receptacle
Host Connectors: USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps) Plug

Environmental
Humidity: 0% to 95%(non-condensing) at 25°C
Operating Temperature: 0 to 50⁰C
Storage Temperature: -20 to 70⁰C

Hardware
4K Support: Yes
Audio: No
Bus Type: USB 3.1 Gen 2
Chipset ID: Genesys Logic GL9510
Genesys Logic GL3590
Realtek RTL8153
Realtek RTD2142S
Displays Supported: 1
Fast-Charge Port(s): Yes
Industry Standards: 1 Gigabit connectivity to any 1000Base-T device (IEEE802.3ab Compliant)
100 Megabit connectivity to any 100Base-TX device (IEEE802.3u Compliant)
10 Megabit connectivity to any 10Base-T device (IEEE802.3i Compliant)
Interface: USB 3.2 Gen 2 - 10 Gbit/s
Ports: 6
USB Pass-Through: Yes

Packaging Information
Package Height: 3.7 cm [1.5 in]
Package Length: 14.5 cm [5.7 in]
Package Width: 13.3 cm [5.2 in]
Shipping (Package) Weight: 278 g [9.8 oz]

Performance
Maximum Data Transfer Rate: 10 Gbps
Maximum Digital Resolutions: 4K 60Hz
Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s

Physical Characteristics
Color: Black & Gray
Material: Plastic
Product Height: 3.3 cm [1.3 in]
Product Length: 9 cm [3.5 in]
Product Width: 9 cm [3.5 in]
Weight of Product: 201 g [7.1 oz]

Prominence
Description CDW 75 - 1st Line: StarTech.com USB C Multiport Adapter - Mini Dock HDMI/DP/VGA - PD/USB/GbE

Software
OS Compatibility: Windows 10
Windows 8.1
macOS Sierra (10.12)
macOS High Sierra (10.13)
macOS Mojave (10.14)
macOS Catalina (10.15)
macOS Big Sur (11.0)
Chrome OS 69.x
Android OS 9.x
iPadOS

What's in the Box
Included in Package: Quick-Start Guide : USB-C Multiport Adapter

This item comes with a 36 months warranty

GTIN: 065030882552

Reference ID: 5034906
