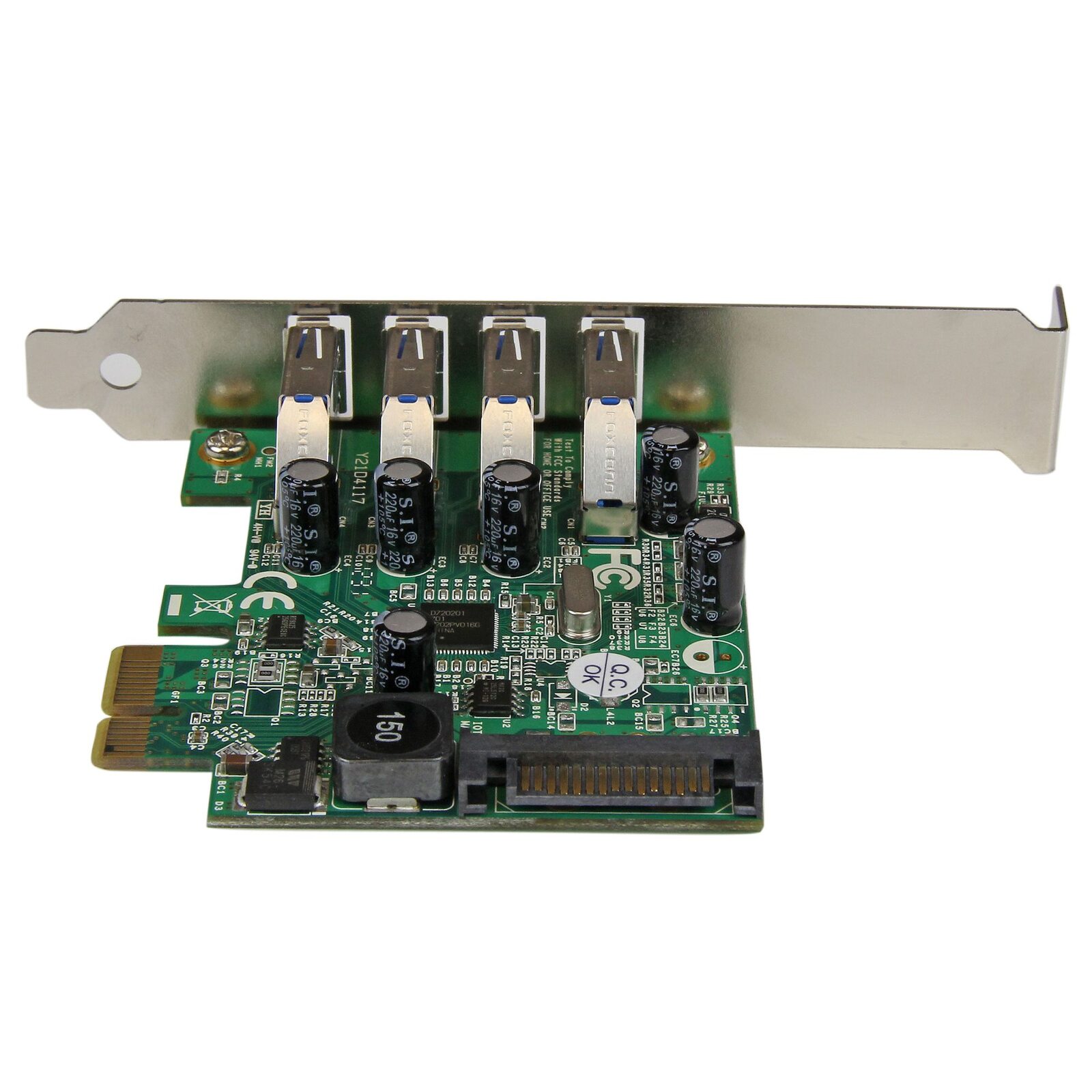

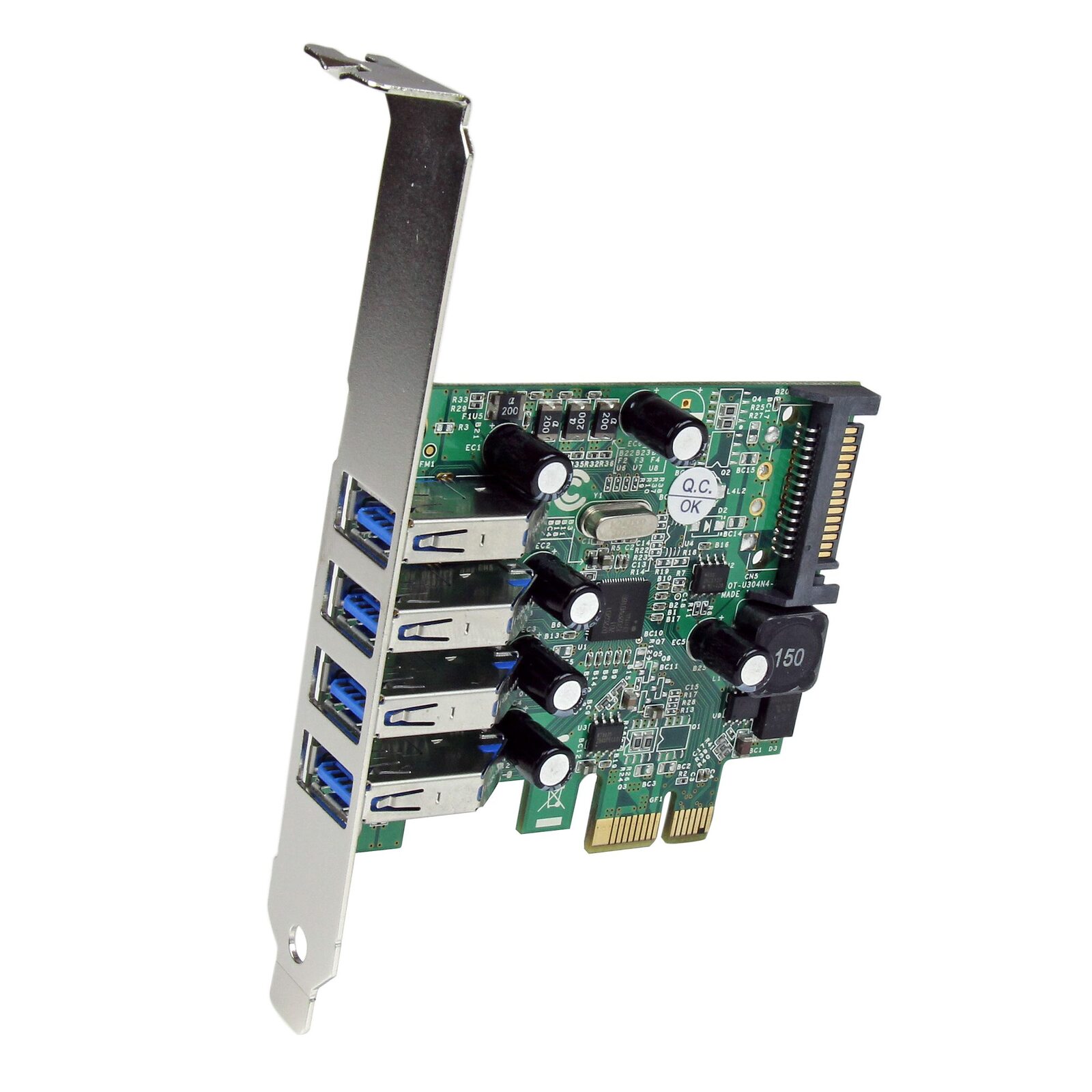

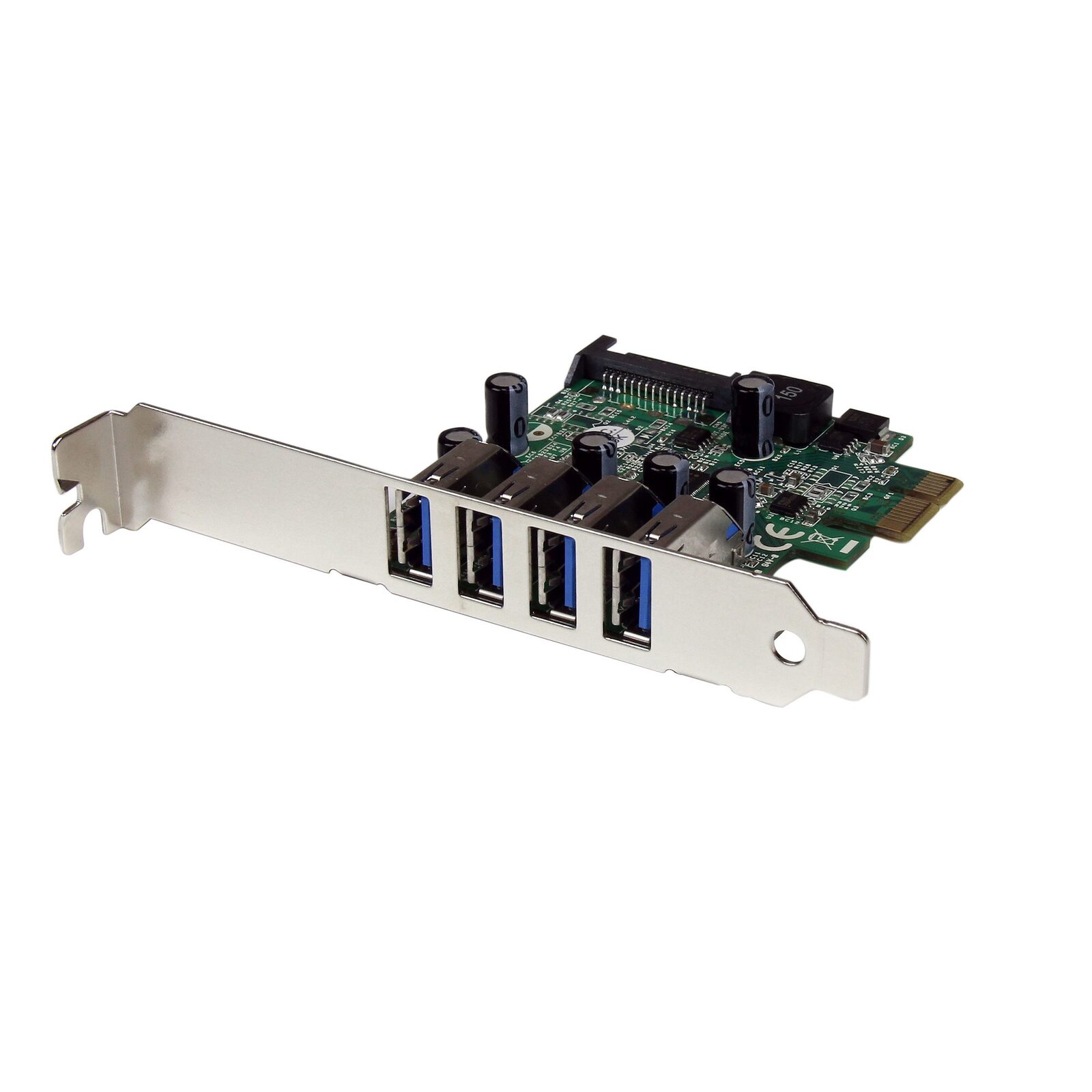

Star Tech 4 Port USB 3.0 PCI Express Card with UASP Support

The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

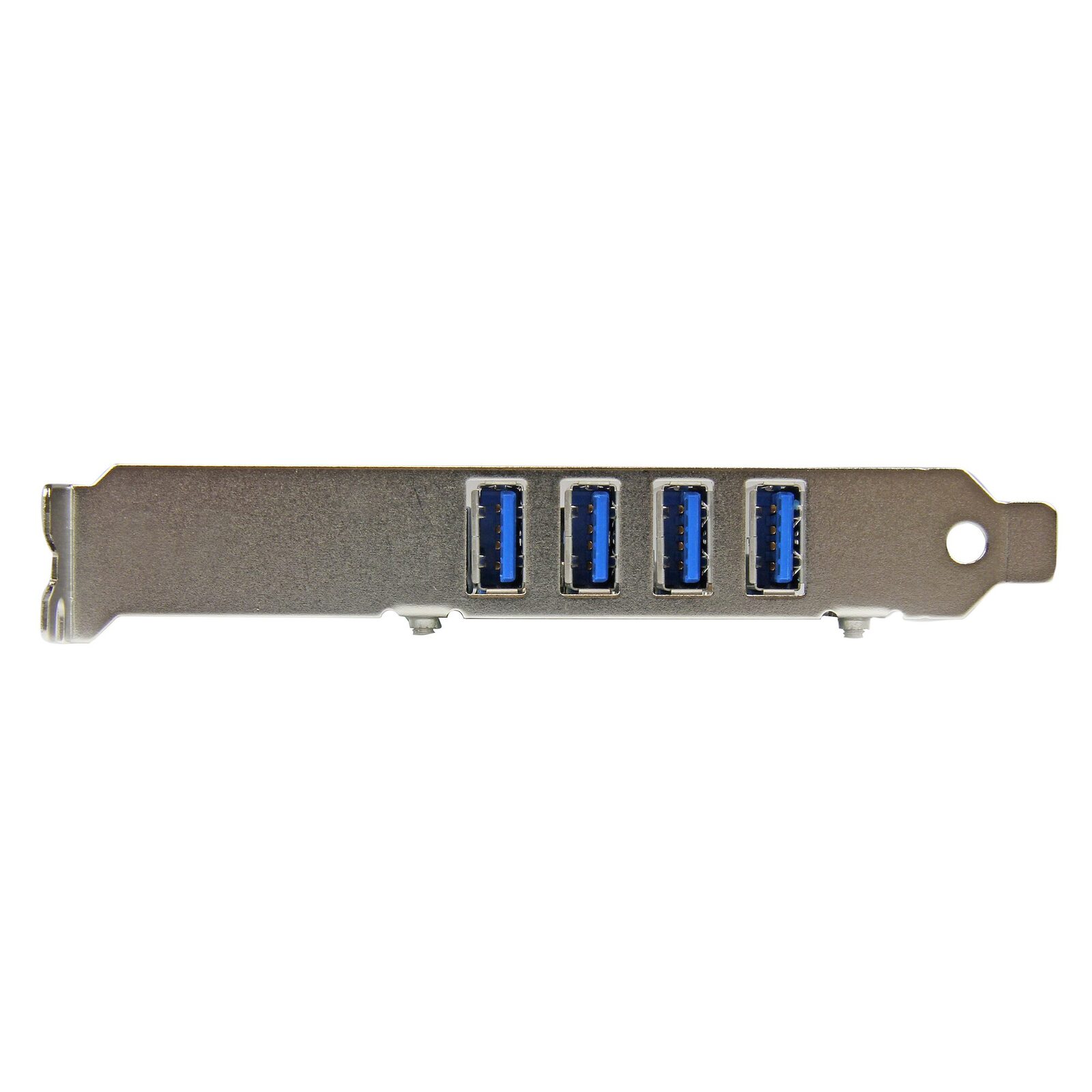

The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.

Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.


Specifications:

Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers

Packaging Information
Package Width  : 16.2 cm [6.4 in]
Shipping (Package) Weight  : 138 g [4.9 oz]
Package Quantity  : 1
Package Length  : 13.2 cm [5.2 in]
Package Height  : 33 mm [1.3 in]

Hardware
Ports  : 4
Port Style  : Integrated on Card
Interface  : USB 3.0
Chipset ID  : Renesas/NEC - µPD720201
Card Type  : Standard Profile (LP bracket incl.)
Bus Type  : PCI Express

Environmental
Storage Temperature  : -25°C to 70°C (-13°F to 158°F)
Operating Temperature  : 5°C to 50°C (41°F to 122°F)
Humidity  : 20% ~ 80% RH

Connector(s)
Internal Ports  : SATA Power (15 pin) Plug
External Ports  : USB Type-A (9 pin) USB 3.0 (5 Gbps) Female
Connector Type(s)  : PCI Express x1 Male

Performance
Type and Rate  : USB 3.0 - 5 Gbit/s
UASP Support  : Yes

Physical Characteristics
Material  : Steel
Product Height  : 6.8 cm [2.7 in]
Product Length  : 75 mm [3 in]
Product Width  : 19 mm [0.7 in]
Weight of Product  : 68 g [2.4 oz]

Software
OS Compatibility  : Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019


Special Notes / Requirements
Note  : The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
System and Cable Requirements  : Available PCI Express expansion slot

What's in the Box
Included in Package  : Driver CD
Instruction Manual
Low Profile Bracket
PCI Express USB 3.0 Card

This item comes with a 2 Years warranty

GTIN: 065030848961
