Star Tech USB 3.0 Universal Docking Station Stand for 2.5/3.5" HDD Hard Drives

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Best Price in the Last 14 Days
Hurry! 5 items left!
$135
You save $27Was $162

Collect 135 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by KG Superstore
Secure ways to pay at checkout

Star Tech USB 3.0 universal HDD Dock - 2.5/3.5in SATA & IDE - UASP

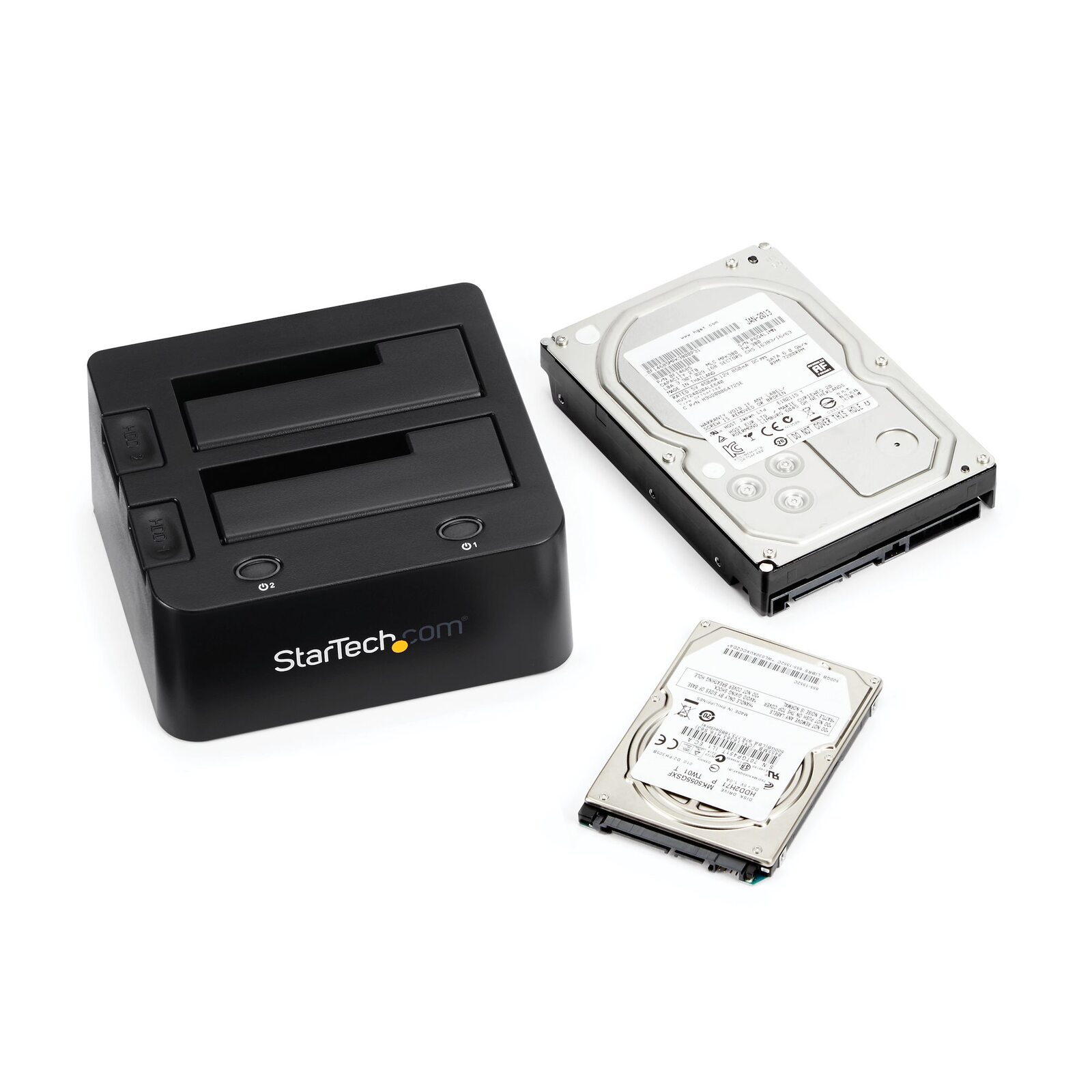

The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.

Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.

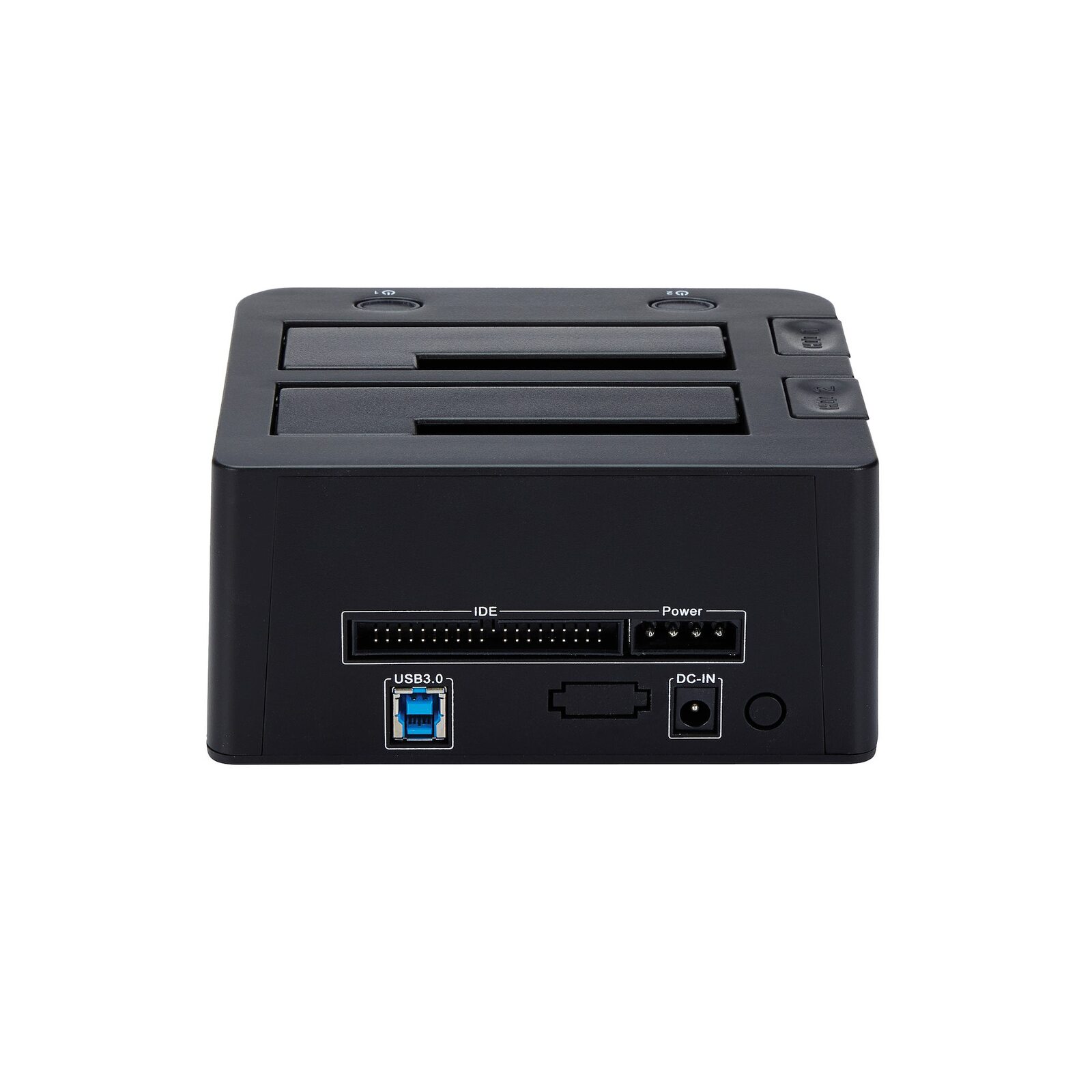

The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.

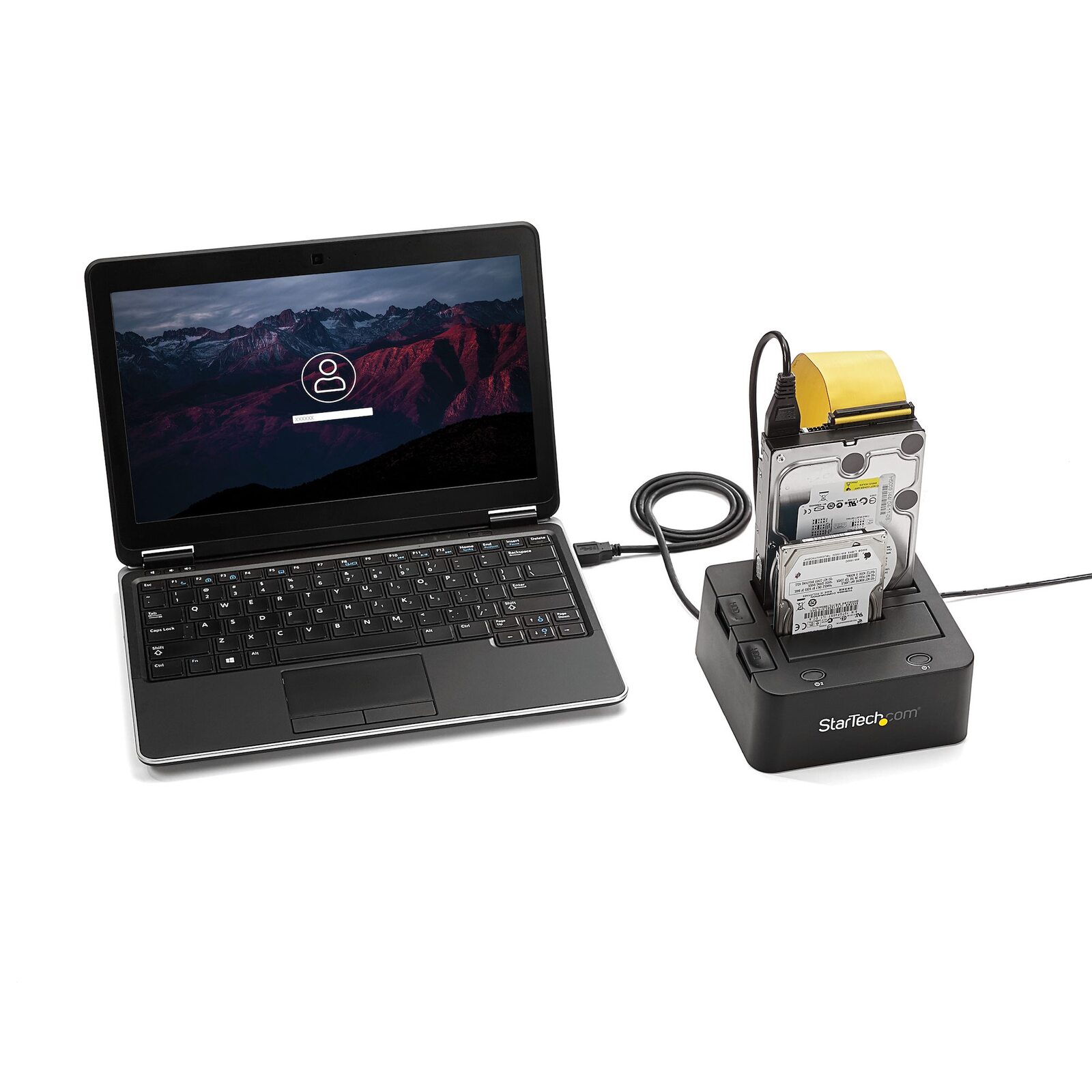

A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase  the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).


Specifications:

The slot-loading design holds the SATA and IDE drivesupright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup

Packaging Information
Package Height  : 21.4 cm [8.4 in]
Package Length  : 18.7 cm [7.4 in]
Package Width  : 12.3 cm [4.8 in]
Shipping (Package) Weight  : 1.1 kg [2.4 lb]

Performance
Hardware Raid Supported  : No
Insertion Rating  : 15,000 Cycles (SATA)
Max Drive Capacity  : Currently tested with up to 6TB 7200 RPM 3.5" hard drives and 2TB 5400 RPM 2.5" hard drive
Maximum Data Transfer Rate  : 5 Gbps
MTBF  : 30000 hours
Type and Rate  : SATA III (6 Gbps)
USB 3.0 - 5 Gbit/s
UASP Support  : Yes

Physical Characteristics
Color  : Black
Material  : Plastic
Product Height  : 7 cm [2.8 in]
Product Length  : 14.7 cm [5.8 in]
Product Width  : 13 cm [5.1 in]
Weight of Product  : 552 g [19.5 oz]

Power
Center Tip Polarity  : Positive
Input Current  : 1.3 A
Input Voltage  : 100 - 240 AC
Output Current  : 3 A
Output Voltage  : 12V DC
Plug Type  : M
Power Consumption (In Watts)  : 36
Power Source  : AC Adapter Included

Prominence
Description CDW 75 - 1st Line  : StarTech.com Universal Dock for 2.5/35in SATA & IDE HDD - USB 3.0 with UASP

Software
OS Compatibility  : OS independent; No software or drivers required

What's in the Box
Included in Package  : 40 Pin + LP4 to 44 Pin IDE Cable

Indicators
LED Indicators  : Power and Drive Activity

Hardware
Number of Drives  : 2
Interface  : USB 3.0
Fan(s)  : No
Drive Size  : 2.5in & 3.5in
Drive Installation  : Removable
Compatible Drive Types  : SATA & IDE
Chipset ID  : JMicron - JMS561U
JMicron - JMD330

Environmental
Storage Temperature  : -40°C to 70°C (-40°F to 158°F)
Operating Temperature  : 5°C to 80° (41°F to 176°F)
Humidity  : 8% ~ 90% RH

Connector(s)
Host Connectors  : USB Type-B (9 pin) USB 3.0 Female
Drive Connectors  : SATA Data & Power Combo (7+15 pin) Receptacle
LP4 (4 pin; Large Drive Power) Male
IDE (40 Pin, EIDE/PATA) Male

What's in the Box
Included in Package  : IDE 40 to 40 Pin Cable
Instruction Manual
LP4 Power Cable
Universal Hard Drive Dock
Universal Power Adapter (NA/UK/EU/AUS)
USB 3.0 Cable

This item comes with a 2 Years warranty

GTIN: 065030859813
