Star Tech 4Port PCIe USB 3.0 Controller Card w/ 4 Independent Channels
The PEXUSB3S44V 4-Port PCI Express USB 3.0 Card lets you add four, dedicated 5 Gbps USB 3.0 ports to your PCIe x4-enabled PC. This independent port architecture improves USB 3.0 performance by transferring data on four individual channels to your computer, giving you faster file transfers.
When multiple devices are connected, traditional single bus USB 3.0 cards share your maximum bandwidth between all ports. By employing four host controller chipsets, each port operates on a separate independent transmission channel. Dedicating up to 5 Gbps to each USB port reduces performance bottlenecks, and effectively quadruples your total available to bandwidth to 20 Gbps.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
For high-power USB devices, this PCIe USB 3.0 card includes an optional SATA or LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0). The USB 3.0 card also supports USB Battery Charging Specification 1.2 (Apple Mode only), letting you charge compatible Apple devices (iPhones and iPads) faster than a standard USB 3.0 port.
The controller card is compliant with USB 3.0 standards while offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the USB 3.0 PCIe card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
When multiple devices are connected, traditional single bus USB 3.0 cards share your maximum bandwidth between all ports
Packaging Information
Package Length : 20.8 cm [8.2 in]
Package Width : 14.5 cm [5.7 in]
Shipping (Package) Weight : 202 g [7.1 oz]
Performance
Maximum Cable Length : 3 m [9.8 ft]
Maximum Data Transfer Rate : 5Gbps per port - 20Gbps Total
Type and Rate : USB 3.0 - 5 Gbit/s
UASP Support : Yes
Physical Characteristics
Material : Steel
Product Height : 12 cm [4.7 in]
Product Length : 16.7 cm [6.6 in]
Product Width : 15 mm [0.6 in]
Weight of Product : 92 g [3.2 oz]
Prominence
Description CDW 75 - 1st Line : StarTech.com 4 Port USB 3.0 PCIe Card w/ 4 Dedicated Channels - UASP
Software
OS Compatibility : Windows® Vista, 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
Linux 2.6.31 to 4.11.x LTS versions only
Special Notes / Requirements
System and Cable Requirements : Available PCI Express x4 or greater slot

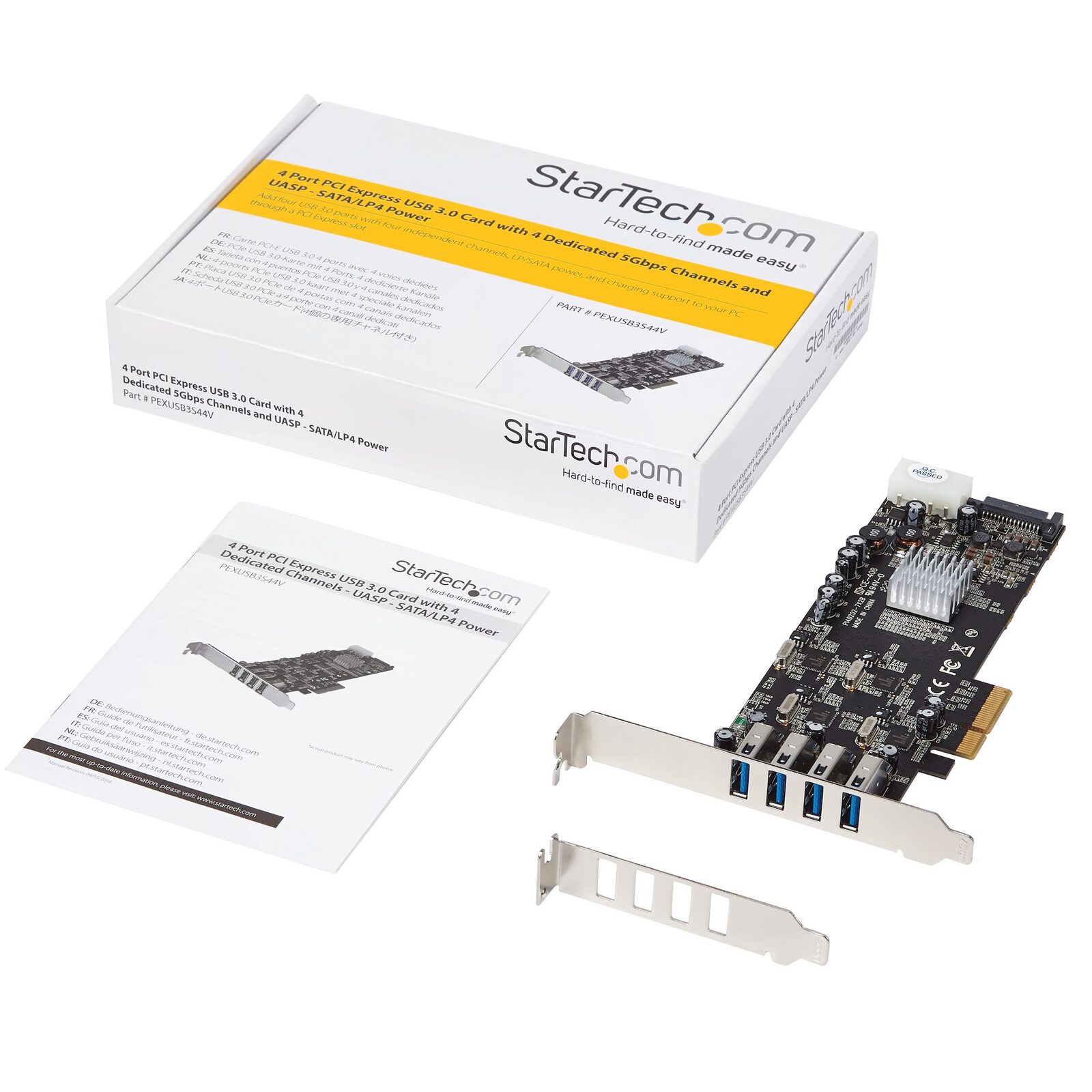

What's in the Box
Included in Package : 4 Port PCIe USB Card
Driver CD
Instruction Manual
Low Profile Bracket
Packaging Information
Package Height : 41 mm [1.6 in]
Hardware
Ports : 4
Port Style : Integrated on Card
Interface : USB 3.0
Industry Standards : USB 3.0 Specification Rev. 1.0
USB Battery Charging Specification Rev. 1.2 (Apple Mode only)
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Chipset ID : Renesas/NEC - µPD720202
Card Type : Standard Profile (LP bracket incl.)
Bus Type : PCI Express
Environmental
Storage Temperature : -20°C to 60°C (-4°F to 140°F)
Operating Temperature : 0°C to 50°C (32°F to 122°F)
Humidity : 5~85% RH
Connector(s)
Internal Ports : SATA Power (15 pin) Plug
LP4 (4 pin; Large Drive Power) Male
External Ports : USB Type-A (9 pin) USB 3.0 (5 Gbps) Female
Connector Type(s) : PCI Express x4 Male
This item comes with a 2 Years warranty
GTIN: 065030854627
Reference ID: 3992976
