StarTech.com MCMGBSCMM055 Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network - 550m Range - Gigabit Ethernet - 850nm - Full Duplex

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.
Extend your GbE network cost-effectively
The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
Applications
- Extend an Ethernet connection by up to 550 m (0.34 miles) over a fiber backbone
- Create an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber-optic networks/backbones
- Converts Ethernet to fiber, and fiber to copper to provide a cost-effective networking solution

HARDWARE
Industry Standards
IEEE 802.3z 1000BASE-SX
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x full-duplex flow control
IEEE 802.3 10BASE-T
IEEE 802.1q VLAN pass through
PoE
No
WDM
No
PERFORMANCE
Auto MDIX
Yes
Fiber Operating Mode
Full-Duplex
Jumbo Frame Support
9K max.
Max Transfer Distance
550 m (1804 ft)
Maximum Data Transfer Rate
1000 Mbps (1 Gbps)
MTBF
> 50,000 hours at 25°C
Supports a maximum distance of 550 m over MM fiber-optic cable (SC connection), and 100m over copper (RJ45 connection) Data Transfer Rate Copper
10/100/1000 Mbps
Data Transfer Rate Fiber: 1000 Mbps
ESD Surge Protection: 1KV. Contact discharge - 4KV. Air discharge - 8KV
Switching Architecture
Store-and-Forward
Type
Multi Mode
Wavelength
850nm
CONNECTOR(S)
Local Unit Connectors
1 - RJ-45 Female
Remote Unit Connectors
1 - Fiber Optic SC Duplex Female

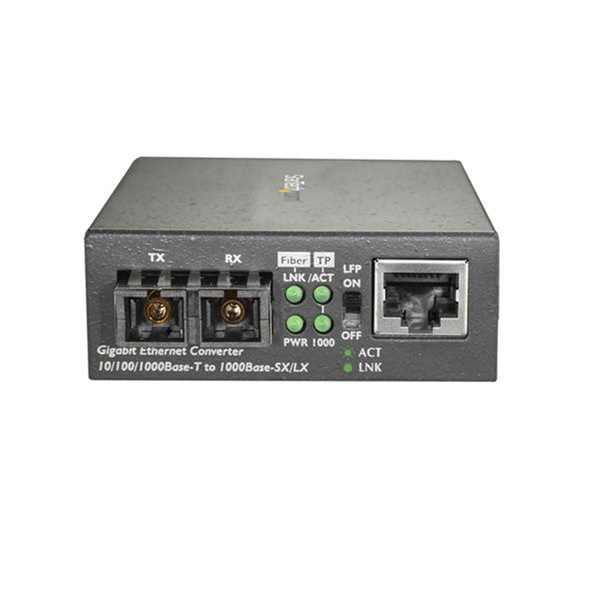

INDICATORS
LED Indicators
1 - 1000 Link: ON - Valid Gigabit Link
1 - FX Link/Activity
1 - Power
1 - TP Link/Activity
POWER
Center Tip Polarity
Positive
Input Current
0.5 A
Input Voltage
100 ~ 240 AC
Output Current
2.6 A
Output Voltage
5 DC
Plug Type
N
Power Consumption (In Watts)
5
Power Source
AC Adapter Included
ENVIRONMENTAL
Humidity
5 ~ 90% RH
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
PHYSICAL CHARACTERISTICS
Color
Brown
Enclosure Type
Steel
Product Height
1 in [26 mm]
Product Length
2.8 in [70 mm]
Product Weight
7.1 oz [200 g]
Product Width
3.8 in [97 mm]

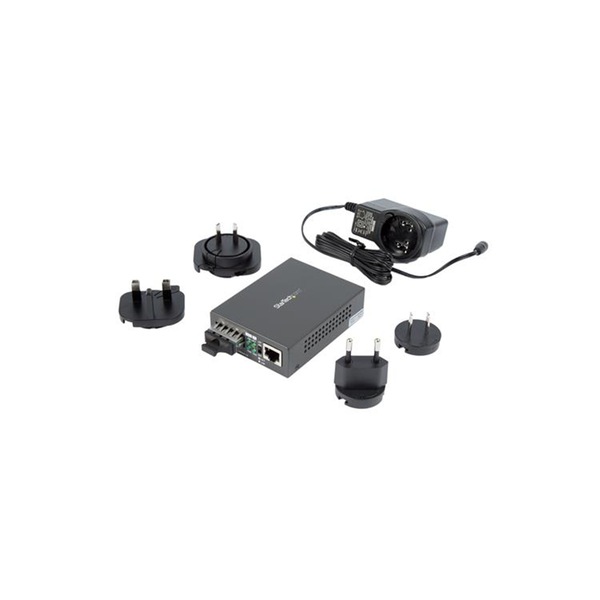

WHAT'S IN THE BOX
Included in Package
1 - media converter
1 - universal power adapter (NA/JP, UK, EU, ANZ)
1 - quick-start guide
- MPN: MCMGBSCMM055

GTIN: 065030878227
