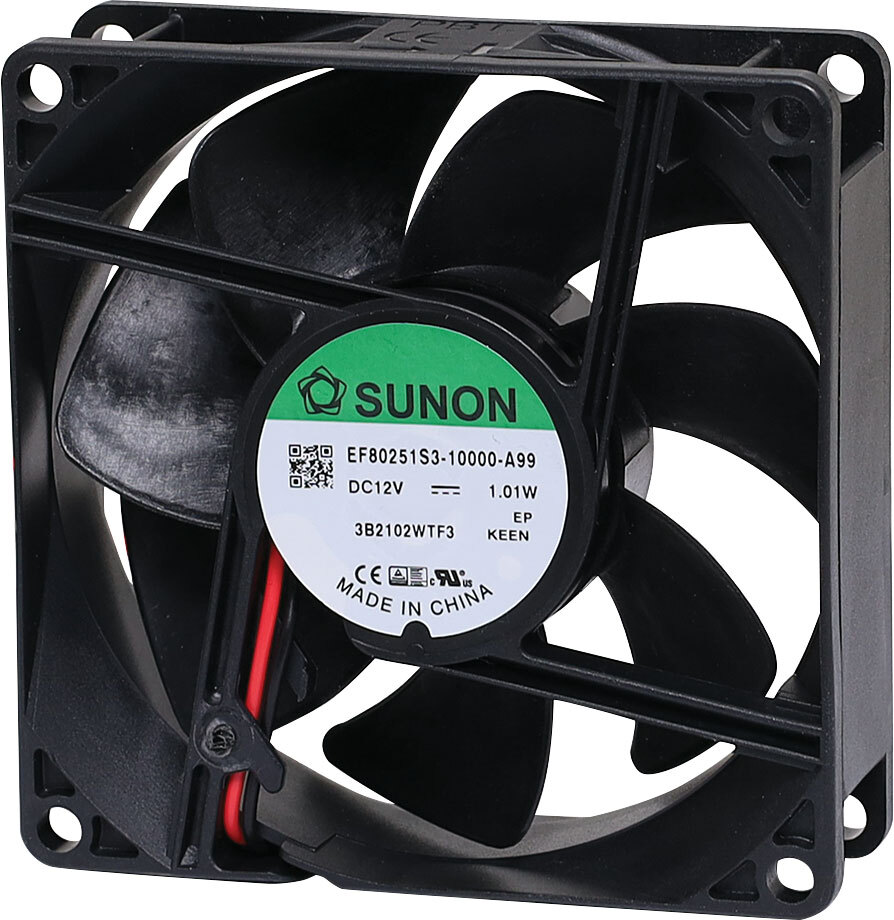

Sunon 70mA 80mm 12VDC Sleeve Bearing Thermoplastic Frame DC Motor Cooling Fan

A 12V DC 80mm Sunon Sleeve Bearing Cooling Fan (#EE80251S3-10000-A99) with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Mechanical Characteristics

• Motor Design: Brushless DC motor
• Bearing System: Lubricated sleeve bearing system
• Frame Material: Thermoplastic PBT of UL94V-0
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 8x 4.3mm holes
• Weight: 75g
• Dimensions: 80 x 80 x 25mm

Electrical Characteristics

• Rated Voltage: 12V DC
• Rated Current: 70mA (84mA max)
• Rated Power Consumption: 0.84W (1.01W max)
• Safety Power Consumption: 1.01W
• Operating Voltage Range: 4.5~13.8V DC
• Starting Voltage: 4.5V DC (25°C Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

Performance Characteristics

• Rated Speed: 2600 RPM ±10% at rated voltage
• Air Flow: 33 CFM
• Static Pressure: 0.11 Inch-H2O
• Noise Level: 28dB(A)
• Insulation Class: UL Class A
• Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
• Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
• Life Expectancy: 35,000 hours at 40°C, 65% RH, 90% CL
• Protection: Automatic restart
