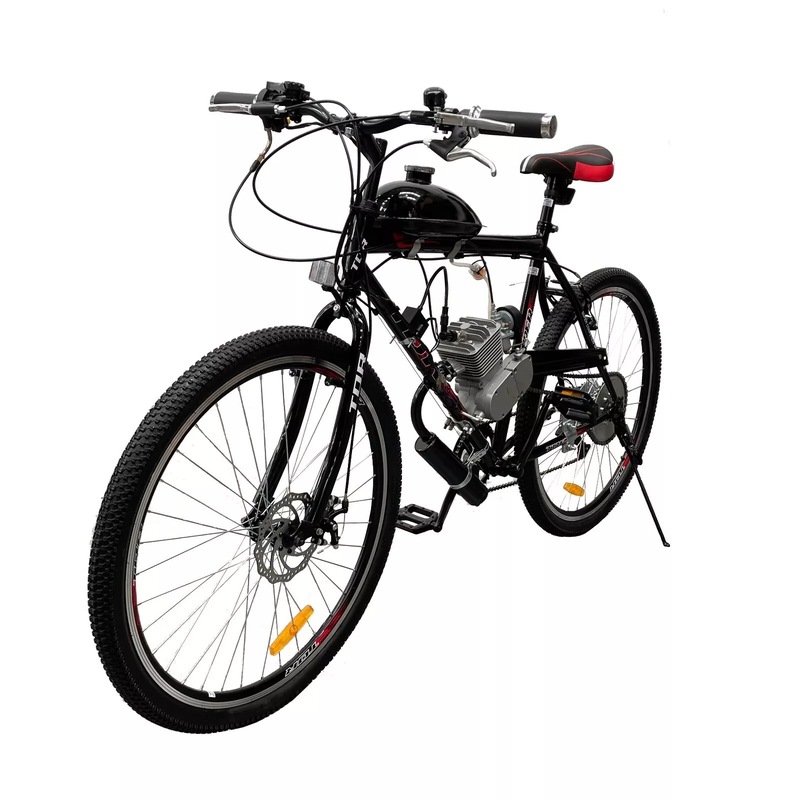

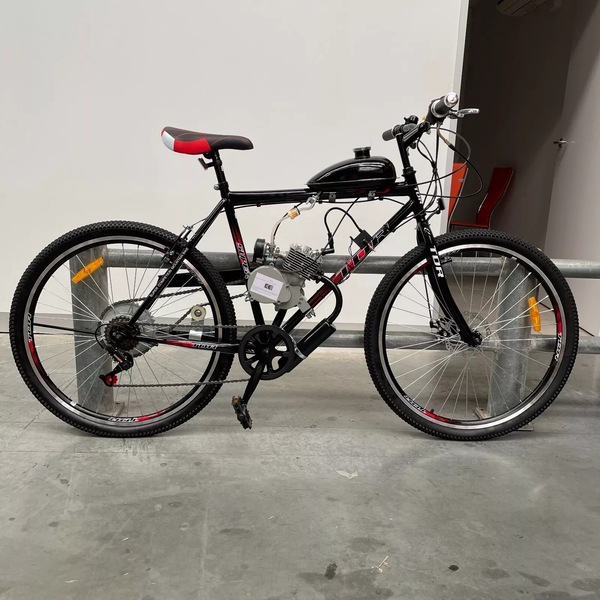

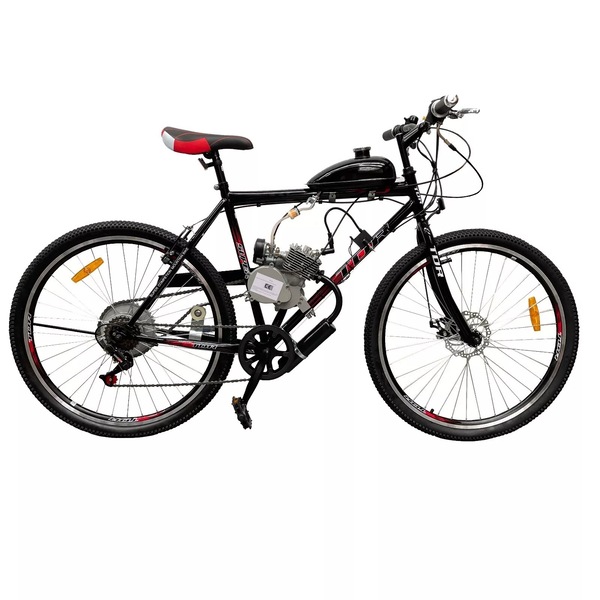

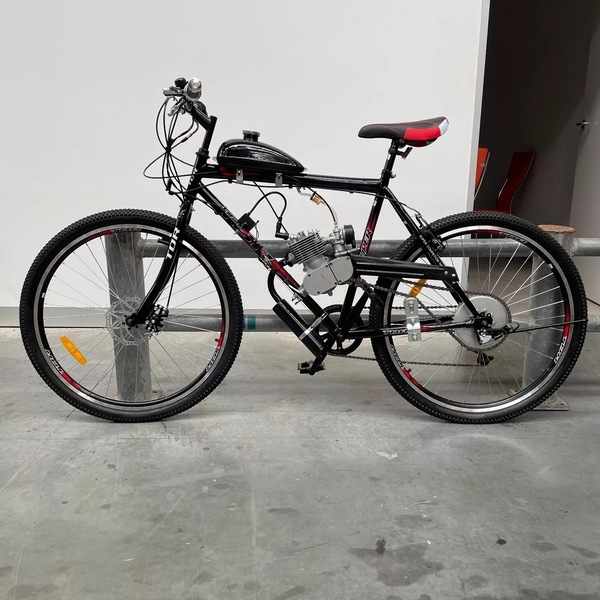

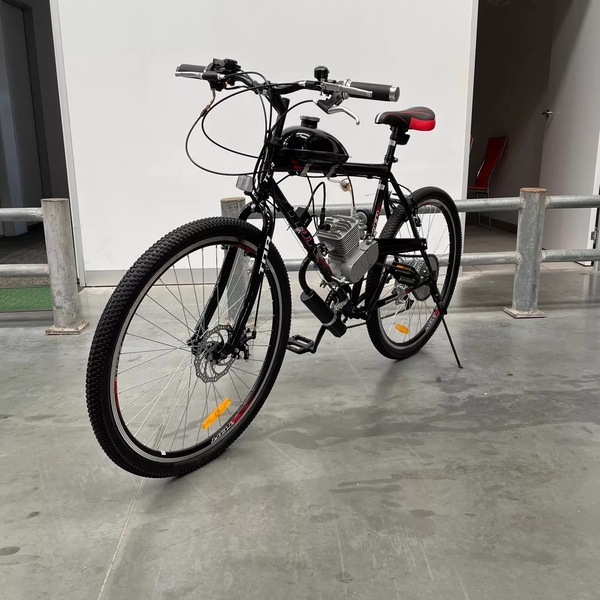

Color: Black & Red

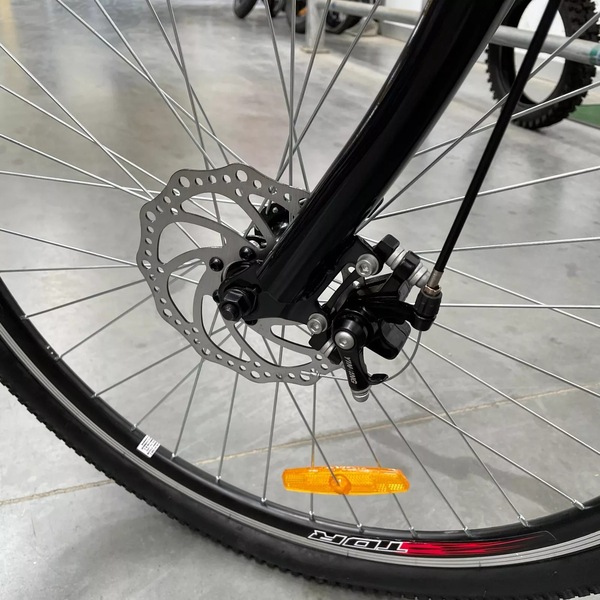

Brake: Front Disc Brake & Rear V-Brake
Derailleur: 7 Speeds Rear Derailleur

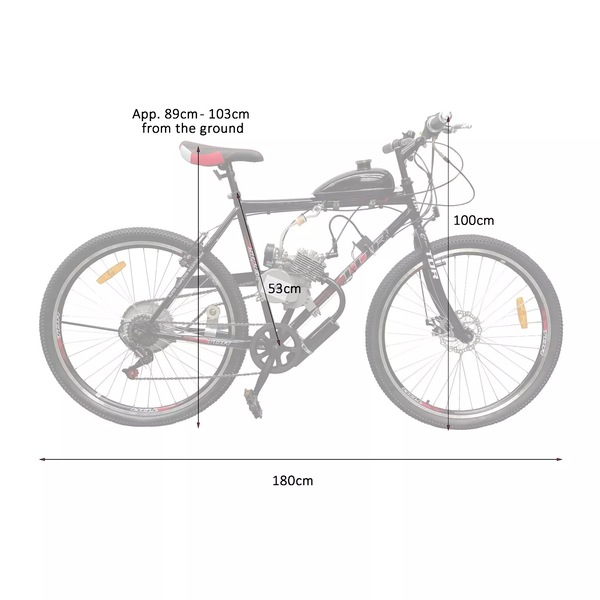

Wheel Size: 27.5 Inch
Rider Weight Limit: 100KG

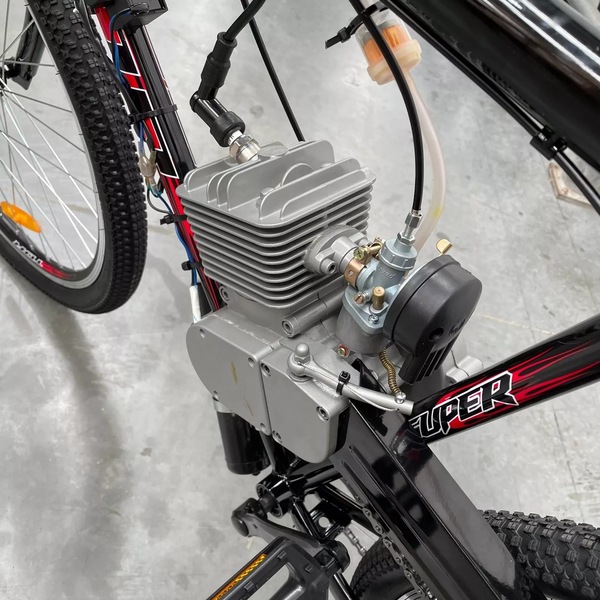

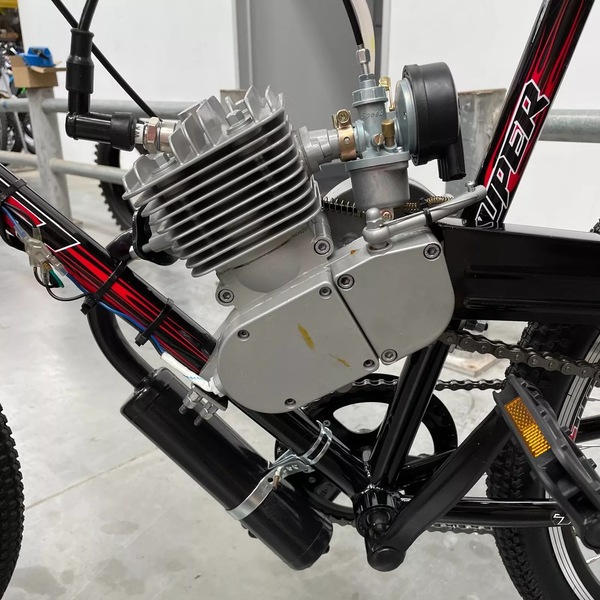

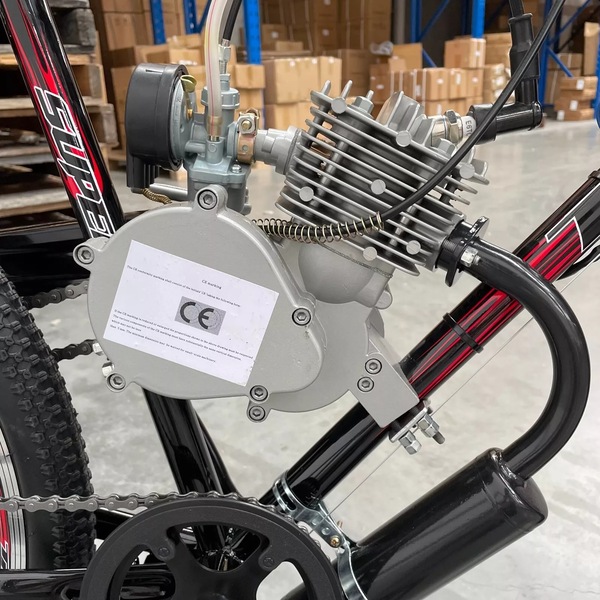

80CC Motorised Engine Kit
Bore & Stroke: 50mm x 40mm
Max Power: 6 - 6.5 Horsepower, 5000R/MIN
Compression Ratio: 7:1
Ignition: CDI
Start: Kick Start
Tank Size: 2 Litres
Fuel Consumption: 2.5L/100Km
Speed: up to 50KM/Hr. Depending On bike size, weight & road Conditions
Type Of Clutch: Rub Bloc Drying
Fuel: Unleaded 91 PETROL Mixed with 2 stroke oil
Start : Kick Start
Tank Capacity: 2L
Lubrication Oil: Two Stroke MOTORCYCLE Oil
Max Speed: 45km/h - 55 km/h
Packaging Box 1 (1380mm x 190mm x 710mm, Gross Weight: 18KG) - TDR 27.5 Inch Bicycle

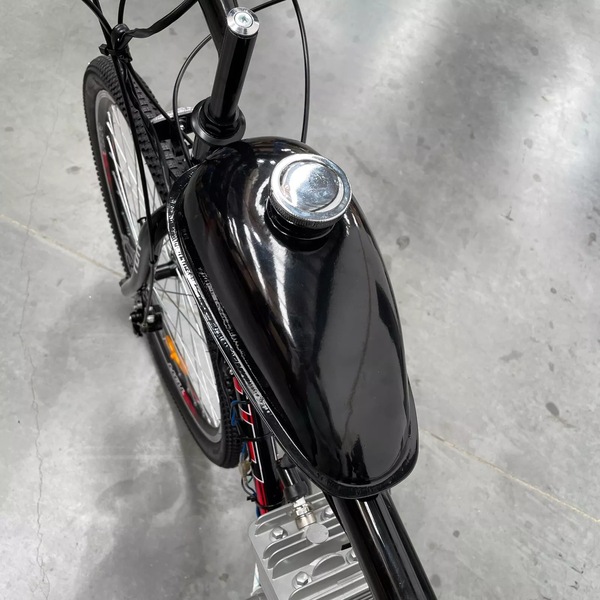

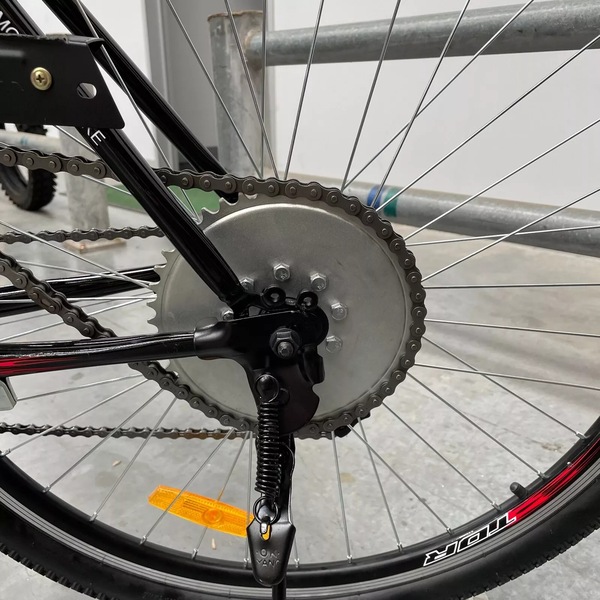

Packaging Box 2 (410mm x 365mm x 180mm, Gross Weight: 12KG) - Spark Plug, Chain Guard, Chrome Muffler, Drive Chain Idler, Push Clutch Lever, Chain, 2-Stroke Engine, CD Ignition Assembly, High Quality Main Bearings, Black Teardrop Gas Tank (2L), Carburetor, Magneto With Kill Switch (on throttle), Sprocket, Twist Throttle And Cable With Matching Grip.
Important Notes:
Shipping Surcharge may apply to some regional areas, please kindly contact us for confirmation. Otherwise, shipping invoice will be sent after purchased.
Please note this is new generation engine, there are a small screw in the package which can be screwed straight on the arm of lock, no longer brass bit needed.
All the products were taken in-kind, due to camera, light, display parameters and other factors, there may have colour aberration.
Speed limit & KM Range depend on bike weight, rider weight, road and weather conditions.
This bike is not assemble due to transportation regulations, it will be brand new in-box (2 Packages - Unassembled Bike and Engine Kit) and self assembly required. Please seek for local professional installation if not confident to install yourself as and no installation manual included.
Always wear a suitable helmet when riding. Not suggested for night use. If unavoidable, please make sure adequate lighting system is operating at night
The color of muffler may different due to stock availability
Please read the Break in Period instruction Guide:
Please Read Before Installation
Break in period for Motor – IMPORTANT
While each manufacturer might vary slightly in their break-in rec-ommendations, they are generic for all new motors.
• For the first 500 to 1,000 miles (2 to 4 tanks of fuel), avoid us-ing more than ¾ throttle.
• Always avert high engine speeds.
• Do not make hard stops, aggressive starts, or rapid acceleration unless there is an emergency.
• While breaking in your motor, increase your bike’s engine speed to the rev limit for short time periods.
• Please make sure you use the PREMIUM 2ST Engine OIL for Motorcycle, NOT Lawn Mower type.
• 2 stroke Mixing oil is very important and must be done right to the right ratio refer to the manual, we recommend 15:1 (370ml oil mixed with 5L fuel) for the first 3 tanks, 25:1 after that.
• 2 stroke motors the oil must be flushed out after the first 3 tanks of fuel.
• Never ride with unnecessarily high engine speeds. Shifting up a gear improves mileage, quiets the bike, and helps keep the en-vironment.
• Stop half-hour riding to cool down the engine
The poorly broken-in motor will see mediocre gas mileage and lower performance or even make the piston seize.
