Description:

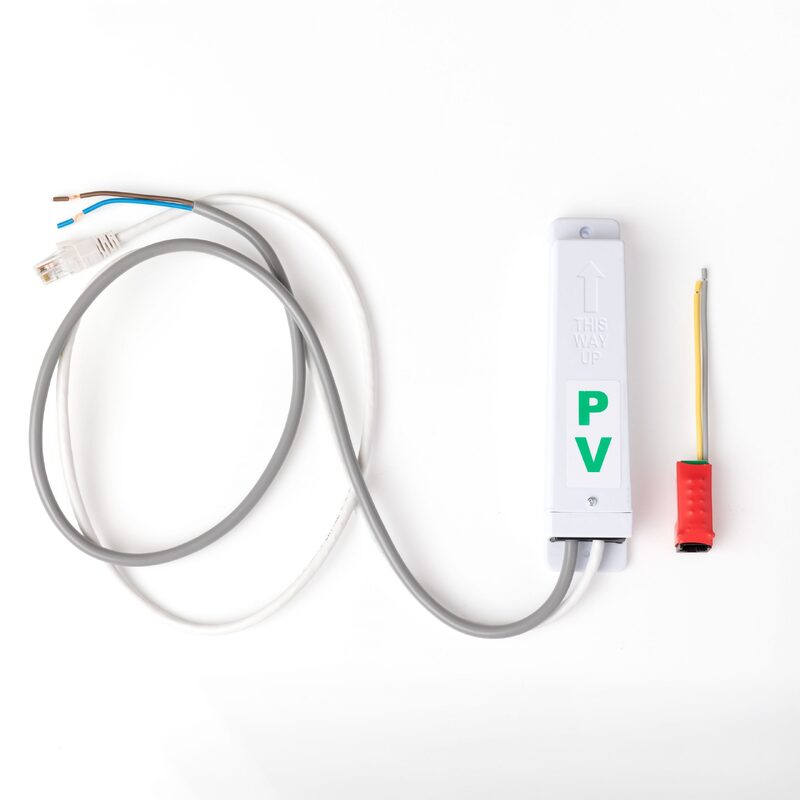

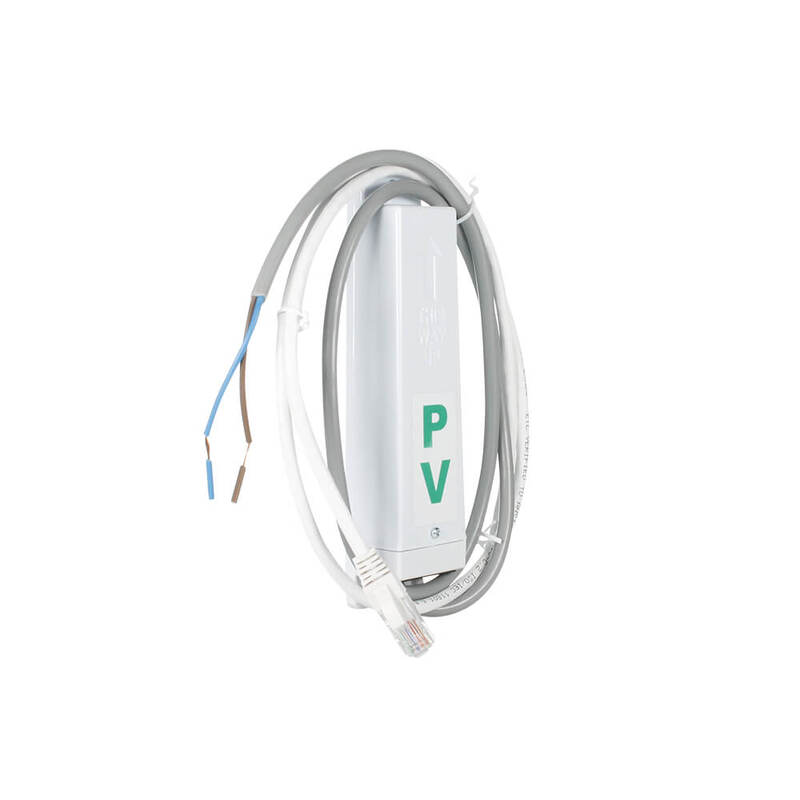

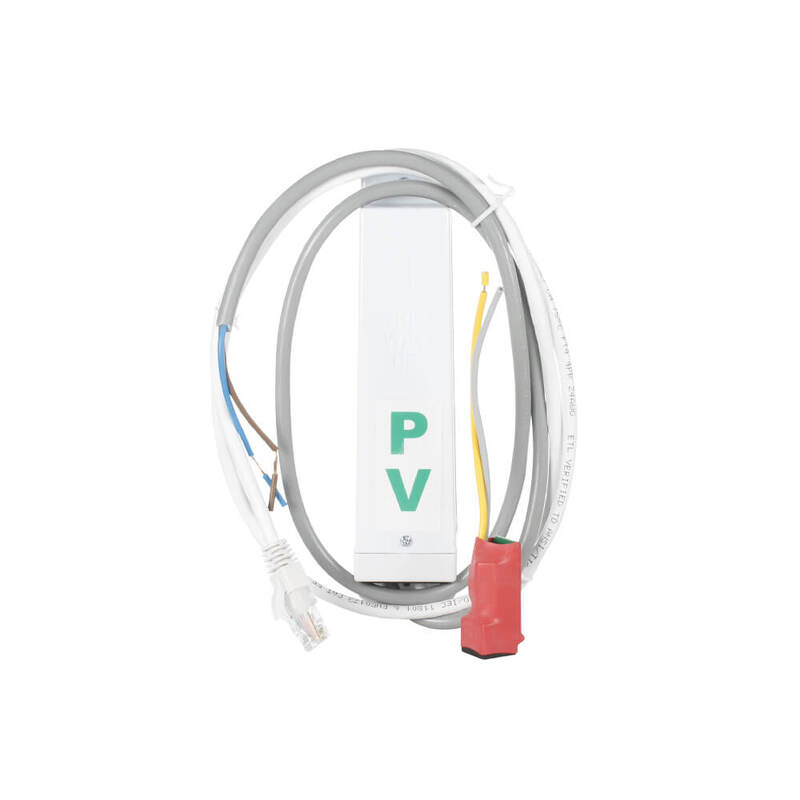

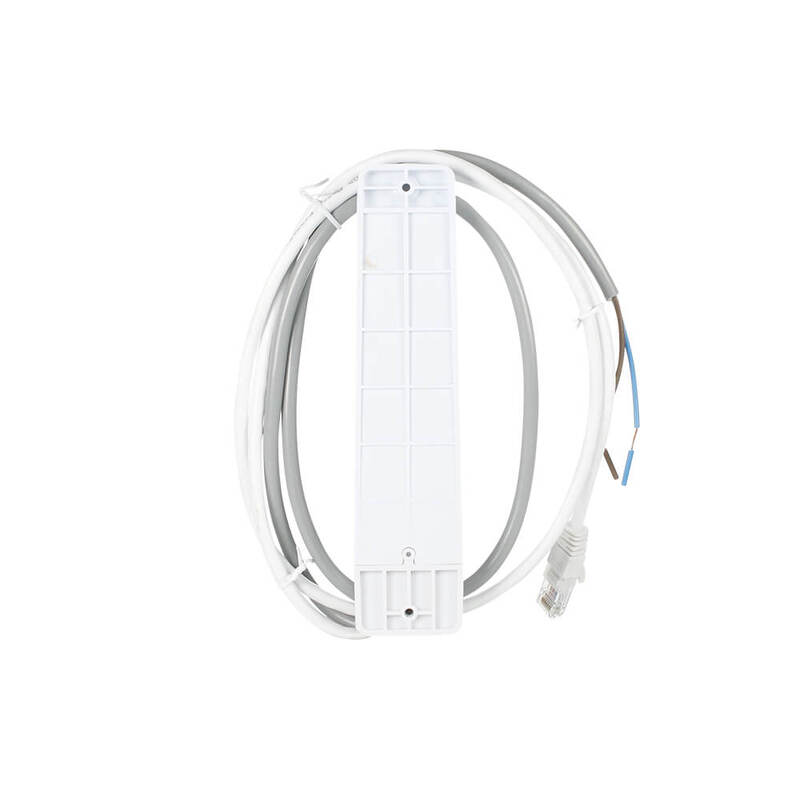

In today's world, reliable energy generation is paramount, especially during emergency situations. The TMAC TM01714 Generation Signalling Device (GSD) empowers you to have a direct say in controlling the generation capability of AS4777-compliant solar inverters. Here's why it's a game-changer for grid stability:
Key Benefits:
Grid Stability Assurance: The TMAC GSD is your guardian of grid stability. It enables you to assert DRM0 on the inverter DRED port when renewable generation levels pose a threat to grid stability. Say goodbye to widespread power outages during critical times.
Emergency Protocols: With the GSD, electricity network operators gain a powerful tool to implement emergency protocols swiftly. This ensures the continuity of supply even when renewable generation reaches critical levels.
Ripple Control Technology: The GSD operates on ripple control technology, receiving Audio Frequency Load Control (AFLC) signals to activate specific inverter generation modes precisely when needed.
Two-Level Generation Limiting: The GSD offers versatility with two levels of generation limiting for AS4777-compliant solar inverters. Choose DRM0 for a complete disconnection from the grid or DRM6 to limit generating capacity to 50% of the average output over the last 5 minutes.
FAQ:
Q: What is DRM0?
A: DRM0 is a mode that completely disconnects the inverter from the electricity grid. It ensures compliance with the Australian standard AS4777 and is a crucial feature for grid stability.
Q: Can I use the GSD in areas exposed to weather?
A: Absolutely! The TMAC TM01714 GSD is designed with an IP64 enclosure, making it suitable for mounting in areas exposed to weather. It's built to withstand various conditions.
Q: How does the GSD benefit electricity network operators?
A: Electricity network operators can use the GSD to swiftly activate emergency protocols, ensuring a continuous power supply to customers even in challenging grid situations.
Q: Is the GSD compatible with AS4777-compliant solar inverters?
A: Yes, the GSD is fully compatible with AS4777-compliant solar inverters, offering two different levels of generation limiting to meet specific grid stability needs.
When it comes to grid stability, the TMAC TM01714 Generation Signalling Device is your trusted ally. Take control of your solar energy generation, ensure uninterrupted power supply during emergencies, and embrace a more reliable and resilient energy future. Don't wait—invest in grid stability today!
| Specifications | Â |
| Overall Dimension | 174 x 38 x 26mm |
| Supply Voltage Range | 216-264VAC 50Hz |
| Power Consumption | 0.2W Max |
| DRM Options | DRM0, DRM6 available |
| IP Rating | IP64 (Suitable for mounting in areas exposed to weather) |
| SAA Approvals Number | SAA172887 |
Â
GSD Inverters Requirement
| Connection Category | Total Inverter Capacity | Types of Inverter Connections | Required to Install a GSD | Exclusions | Requirement for Inverters to be GSD capable and have GSD installed |
| Low voltage | Less than 10kVA | Initial connection | No | N/A | N/A |
| Low voltage | Less than 10kVA | Increase inverter capacity | No | N/A | N/A |
| Low voltage | Less than 10kVA | Replace inverter (no increase of supply) – not a warranty replacement N | No | N/A | N/A |
| Low voltage | 10kVA or higher | Initial connection | Yes Including hybrid inverters | Not required where inverter solely supplied by energy storage system (AC coupled batteries) Not required in non AFLC areas Not required for warranty ‘like for like’ replacement | All inverters |
| Low voltage | 10kVA or higher | Increase inverter capacity | Yes Including hybrid inverters | Not required where inverter solely supplied by energy storage system (AC coupled batteries) Not required in non AFLC areas Not required for warranty ‘like for like’ replacement | All new inverters only |
| Low voltage | 10kVA or higher | Replace inverter (no increase of supply) – not a warranty replacement | Yes Including hybrid inverters | Not required where inverter solely supplied by energy storage system (AC coupled batteries) Not required in non AFLC areas Not required for warranty ‘like for like’ replacement | All new inverters only |
| Low voltage | Any | Replace inverter (no increase of supply) – warranty replacement | No | N/A | N/A |
| High voltage | Any | Any | No | N/A | N/A |
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
MPN: TM01714
Estimated Delivery Time Frame:1-7 Business Days
