Reliable drying unit with high dehumidification capacity.

Thanks to its compact design and stable castor wheels with roll-stop detent, this powerful industrial condensation dryer can be used particularly flexibly for a wide range of dehumidification tasks in storage rooms or production environments. The DH 25 S dehumidifies up to 40 liters per day and is a very economical solution to ensure dry ambient air for sensitive stored goods or to avoid harmful moisture-related consequences on products, machines and building structure in industrial processes.

Humidity control can be either humidity-dependent via the target value preselection on the internal hygrostat or in humidity-independent permanent operation. Even in cooler environments, mold and corrosion don't stand a chance with this industrial dryer, because the DH 25 S is equipped with a reliable automatic hot gas defrosting system that ensures efficient dry-keeping operation even at low temperatures.

Propane (R290) as an environmentally friendly refrigerant in dehumidifiers

Every year, synthetic refrigerants release several million tons of environmentally harmful CO2 emissions (greenhouse gases) into the air. Therefore, the use of alternative refrigerants is one of our most important goals. By using propane (R290) as a refrigerant, this dehumidifier makes a valuable contribution to climate protection.

The natural refrigerant propane (R290) is an organic compound and belongs to the hydrocarbons. Unlike synthetic refrigerants, environmentally friendly propane (R290) has neither ozone depletion potential (ODP=0) nor a significant greenhouse effect (GWP=3). Additional plus for the environment: Due to its excellent thermodynamic properties, propane (R290) is a particularly energy-efficient refrigerant and thus additionally reduces your energy costs.

Features

• Prevention of mold and corrosion damage
• Prevention of condensate formation
• Protection against moisture damage to building fabric, production facilities and inventory
• Increasing the reliability of electronic equipment
• Air drying for process optimization in industry
• Protection and preservation of valuable goods
• Reduction of unpleasant odors
• Lower heating costs due to optimized air humidity
• Quiet and effective drying

• Advantages in practice:

• Reliable drying unit with high dehumidification capacity
• Particularly economical solution for typical dehumidification applications in production or storage rooms
• Aluminum tube evaporator for effective dehumidification performance even at low room humidity levels
• Timer function
• Optimal price-performance ratio

Specifications

General information

•      Article number    1.125.000.204

Dehumidification performance

•      At 20 °C / 60 % RH [l/24h]    16
•      At 30 °C / 80 % RH [l/24h]    40

Air flow rate

•      Level Max. [m³/h]    450

Operating range

•      Min. temperature [°C]    1
•      Max. temperature [°C]    35
•      Min. humidity [% RH]    35
•      Max. humidity [% RH]    98

Electrical values

•      Mains connection    220 - 240 V/50 Hz
•      Nominal current consumption [A]    3.1
•      Power input [kW]    0.7
•      Required current starting phase [A]    14
•      Recommended fusing [A]    16

Electric connection

•      Connection plug    CEE 7/7
•      Cable length [m]    5

Compressor

•      refrigerant    R290
•      Amount of refrigerant [g]    152
•      GWP factor    3
•      CO2 equivalent    0
•      Pressure outlet side [MPa]    2.5
•      Pressure suction side [MPa]    1

Sound values

•      Distance 3 m [dB(A)]    51

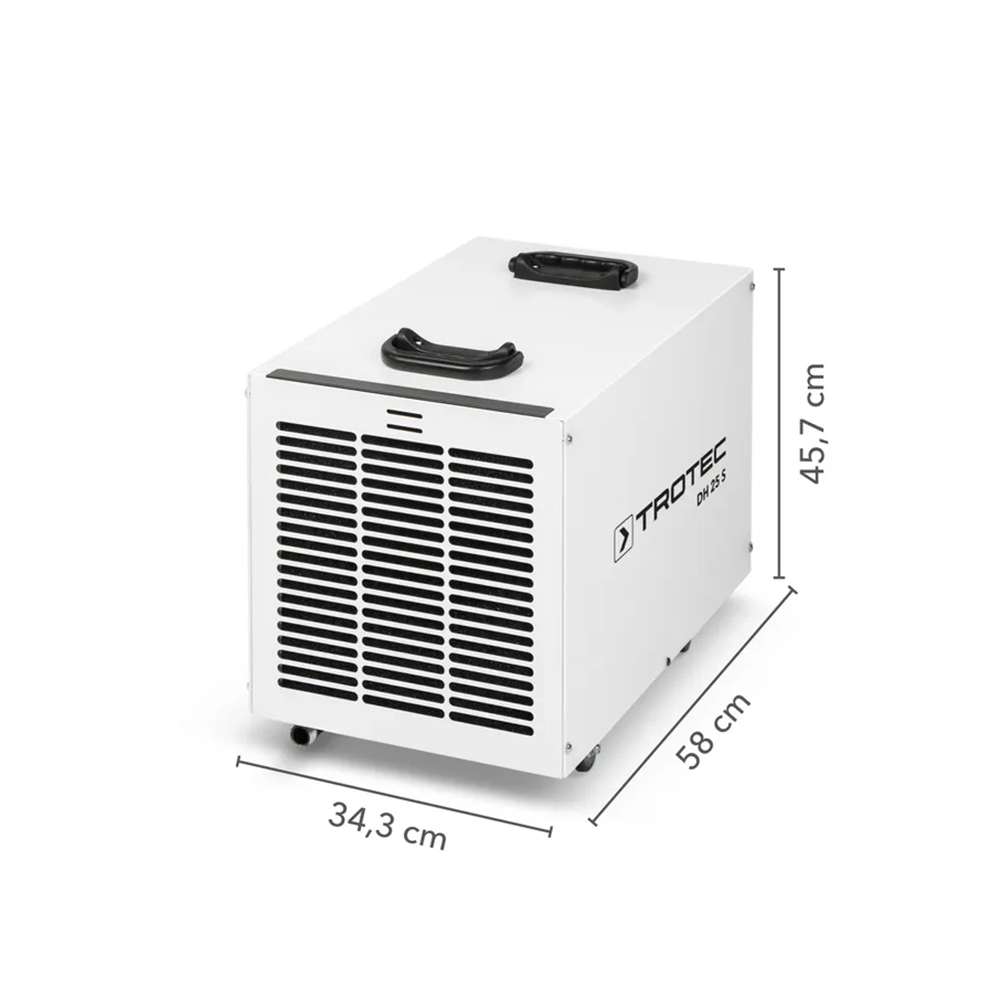

Dimensions

•      Length (packaging excluded) [mm]    580
•      Width (packaging excluded) [mm]    350
•      Height (packaging excluded) [mm]    455

Weight

•      (packaging excluded) [kg]    30

EQUIPMENT, FEATURES AND FUNCTIONS
Mobility

•      Rubber-tyred metal wheels
•      Carry/transport handle(s)
•      Swivel casters with parking brakes
•      Forklift
•      Plastic wheels
•      Non-marking full-rubber wheels
•      Adjustable bar handle

Automatic dehumidification

•      Non-stop dehumidification
•      Electronic hygrostat
•      Hygrostat-controlled
•      Analogue hygrostat
•      Program-controlled

Automatic defrost system

•      Hot gas
•      Electronic

Hygrostat

•      Internal

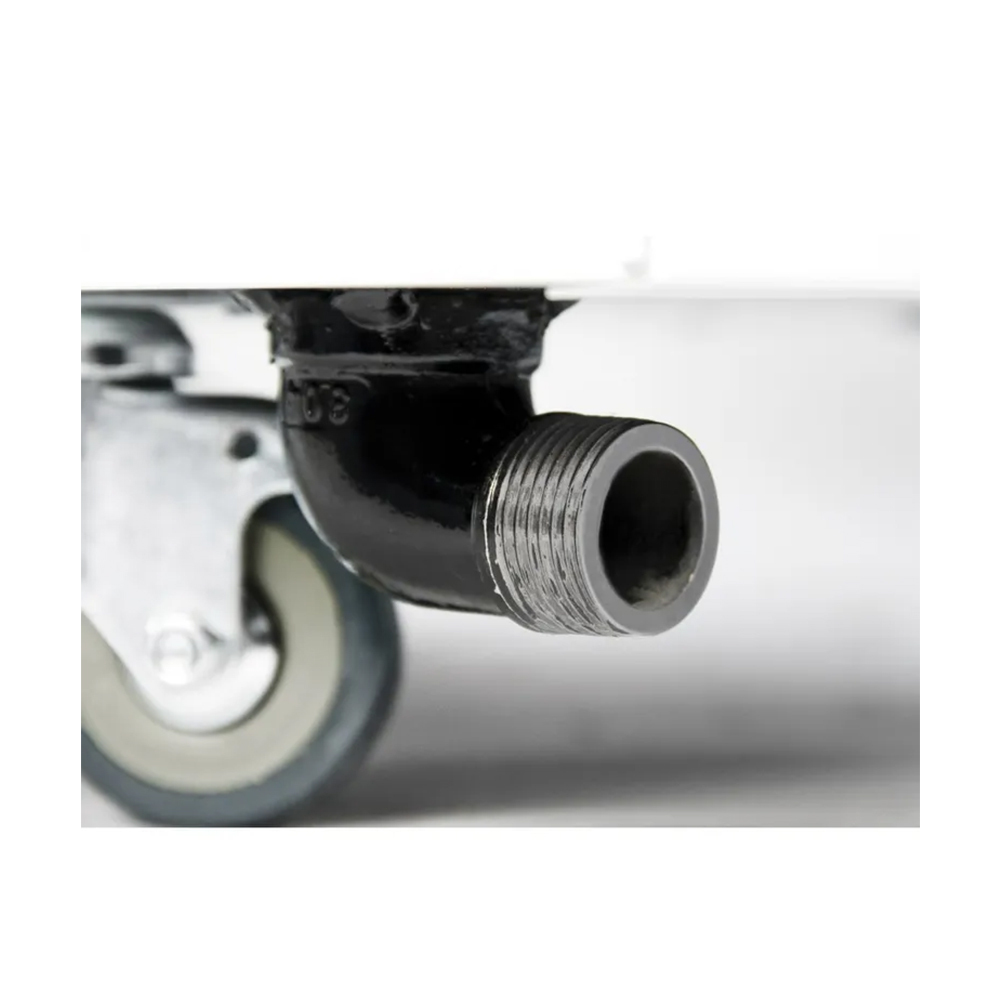

Condensate drain

•      Hose connection possible
•      Hose included in the scope of delivery
•      Condensate pump
•      Recommended hose size [mm]

Condensate pump

•      Pump height [m]
•      Max. conveying capacity [l/h]
•      Integrated condensate pump
•      Residual water draining function

What's In The Box

• [1] x Trotec DH 25 S Portable Dehumidifier - 40L /Day | Industrial Condenser Dryer
