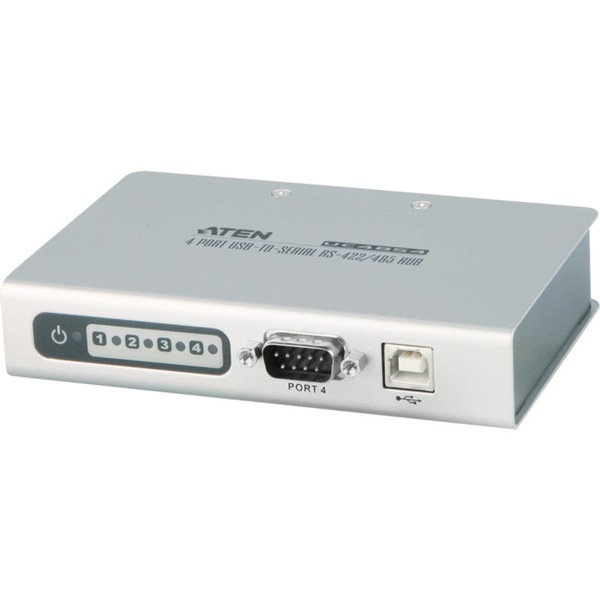

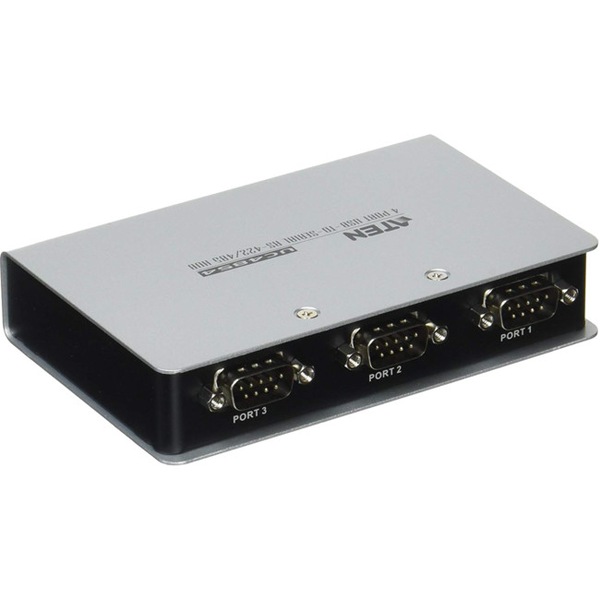

ATEN UC4854 4 Port USB To Rs422 / 485 Hub Converts a USB Port To a Legacy Rs-422 or Rs-485 Com

Image 1
Image 2
Shop More Products
Features
4 Search Product or keyword 4-Port USB to RS-485/422 Hub UC4854

The ATEN USB-to-Serial RS-422/485 Hub provides anexternal plug-and-play RS-422 / RS-485 serial connection forcomputers, notebooks, laptops, and handheld computing devices that support the USB specification. It provides a quick, simple, and cost-effective solution and is ideal for various communication and automation applications.

ATEN provides 4 models in this series: 2/4-Port USB-to-Serial RS-422/485 Hub;

  • Easy way to add 4 RS-422/RS-485 serial ports
  • Fully compliant with USB 1.1; USB 2.0 compatible
  • Supports RS-422/RS-485 serial interface
  • Supports RS-422 or RS-485 signal on individual ports
  • Supports automatic handshake mode
  • Up to 115.2 Kbps data transfer rate for each serial port
  • Dual data buffers for each upstream and downstreamdata transfer
  • No IRQ, DMA, I/O address resources required
  • Supports hot-swapping and plug-and-play
  • Built-in 16KV ESD protection
  • Supports both bus power and external power
  • Works with cellular phones, PDAs, digital cameras,modems and ISDN terminal adapters
  • OS support - Windows

Specifications
Device Connections 4
Connectors
USB Port 1 x USB Type B Female (White)
Power 1 x DC Jack
Serial 4 x DB-9 Male (Black)
LEDs
Ports 4 (Green)
Power 1 (Orange)
Data Rate 115.2 Kbps (max.)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Power Mode Bus Powered; use of Power Adapter is optional
Power Consumption DC5V:0.50W:2BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm
(4.92 x 3.15 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
