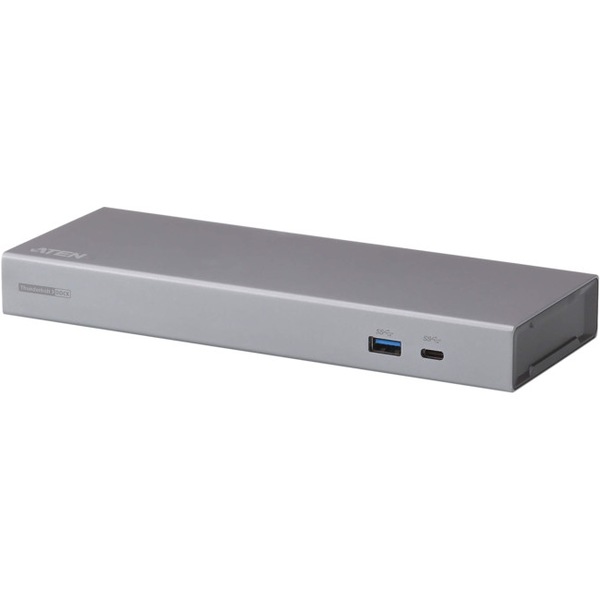

The UH7230 Thunderbolt 3 Multiport Dock connects a laptop to Ethernet, DisplayPort, USB-C 3.1 Gen 1, speaker and microphone ports through a single cable. The all-in-one dock provides a total of 8 ports and is designed to instantly connect and disconnect from your Thunderbolt 3 laptop. The UH7230 supports a single Thunderbolt monitor with resolution up to 5K (5120 x 2880 @ 60Hz), and dual 4K (4096 x 2160 @ 60Hz) multi-display setups on a DisplayPort and a Thunderbolt ora USB-C displays. Gigabit Ethernet port delivers Internet speeds up to one Gigabit (1000 Mbps). Thismultiport dock also supports USB Power Delivery 2.0, which means the UH7230 can provide power to matched USB-C Windows or Mac laptops with PD Profile specifications of 20V/4.25A, 15V/3A, 9V/3Aand5V/3A.
The ATEN Thunderbolt™ 3 Multiport Dock is designed for creating a simplified and productive state-of-the-art workspace. With included Thunderbolt™cable, it delivers more connectivity to your MacBook Pro or Windows laptop and more charging capability than ever before. Harness the full potential of Thunderbolt™ 3 and embrace the next generation of workstation connectivity.It is ideal for creative professionals and those who work with high-resolution, and graphic-intensive images, video, and CAD drawings, such as video producers, graphicand web designers, architects, and more.
Combining a truly immersive next-generation visual experience with amazing throughput speeds, the UH7230 multiport dock allows you to connect two 4K displays (one DisplayPort and one Thunderbolt™ 3 USB-C port) or one latest generation 5K display, with nearly 16 million more pixels than an HDTV. Enjoy the astonishing resolution, contrast and color depth, whether you are editing videos or digital media, designing graphics or using any application that requires high-definition visuals.
With Thunderbolt™ 3s phenomenal bandwidth, up to40Gbps, transferring a 4K movie needs less than 30 seconds. This means you can transfer files faster, reduce waiting andaccomplish more in the same amount of time.
UH7230 is an intuitive central hub for not only connectivity expansion but also for charging your laptop andUSB accessories. It supports up to 85W of power delivery forMac or Windows laptops.

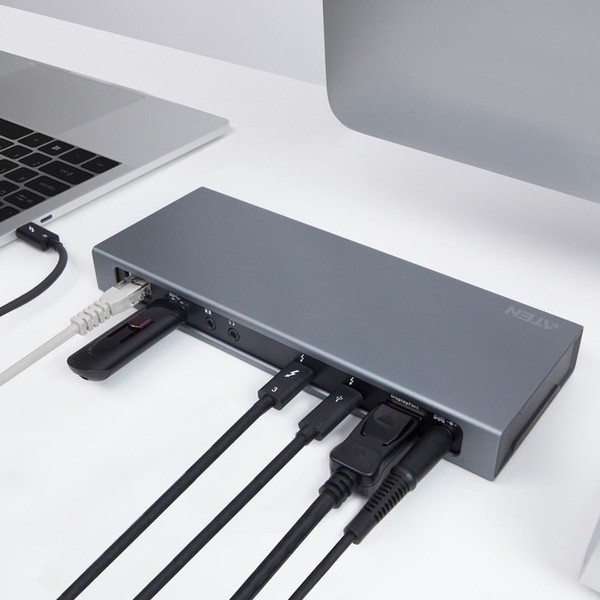

Using the single Thunderbolt™ 3cable(included), the docking station expands the connectivity up to 8 ports, including audio, Gigabit Ethernet, DisplayPort, Thunderbolt™ 3 USB-C and USB 3.1 Gen 1 ports to accommodate your most demanding computing needs. A Thunderbolt™ 3 port is also provided to daisy chain upto 5 additional Thunderbolt™ 3 devices, such as data storage.
Your computers Thunderbolt 3 ports might not function properly until you update one or more of the following on your computer:
• BIOS
• Thunderbolt firmware
• Thunderbolt 3 controller drivers
• Thunderbolt 3 software
The required updates will vary depending on your computer.
For an up-to-date list of affected computers and instructions, visit
If your manufacturer isn't listed on the Thunderbolt website, contact your manufacturer.

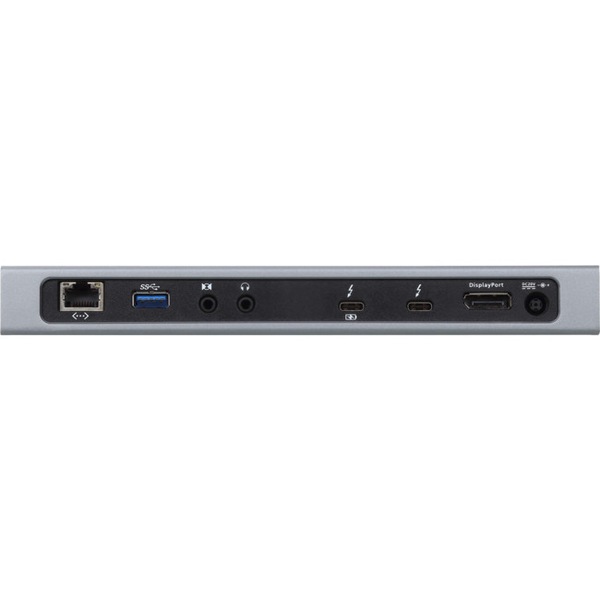

Computer Connections | 1 Thunderbolt Computer |
Device Connections | 5 Max. (via Thunderbolt Daisy-chaining) |
Connectors | |
Computer | 1 x Thunderbolt 3 (USB-C) Female (Black) |
Device | 1 x Thunderbolt 3 (USB-C) Female (Black) 2 x USB 3.1 Gen1 Type-A Female (Blue) 1 x USB 3.1 Gen1 Type-C Female (Black, data only) |
LAN Ports | 1 x Gigabit Ethernet Female (Black) |
Audio Inputs | 1 x 3.5mm Stereo Input Female (Black) |
Audio Outputs | 1 x 3.5mm Stereo Output Female (Black) |
Power Jack | 1 |
Video Output | 1x DisplayPort Female 1x Thunderbolt 3 (USB-C) Female |
Video Resolution | Single-View: Thunderbolt 3 (USB-C) Monitor - 5K@60 USB-C Monitor - 4096*2160@60 DisplayPort Monitor - 4096*2160@60 Dual-View: Thunderbolt 3 (USB-C) Monitor or USB-C Monitor - 4096*2160@60 DisplayPort Monitor- 4096*2160@60 |
Power Consumption | DC 20V , 170W |
Package Contents | 1 x Thunderbolt 3 (USB-C) Cable 1 x Power Adapter w/ AC power cord |
Environmental | |
Operating Temperature | 0-40°C |
Storage Temperature | -20-60°C |
Humidity | 0-80% RH, Non-condensing |
Physical Properties | |
Housing | Aluminum |
Weight | 0.37 kg ( 0.83 lb ) |
Dimensions (L x W x H) | 22.20 x 8.20 x 2.60 cm (8.74 x 3.23 x 1.02 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
