DOSS UHF103E Single Ch UHF Wireless Mic System Kit Pll 654-694Mhz

DOSS UHF103E Single Ch UHF Wireless Mic System Kit Pll 654-694Mhz

$166

Collect 166 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

(0)

SINGLE CHANNEL UHF WIRELESS HAND HELD SYSTEM KIT

Reliable UHF technology
Reaches up to 100m range, depends on Radio Frequency signalabsorption, reflection, and interference.

Wireless microphone
The lightweight microphone with heart-shaped directional characteristic delivers superb audio quality while reducing unwanted background noise. Its small LCD shows the most important information, the selected group, the set channel,the battery indicator as well as the stored transmission frequency.

User Notice
The frequency range of 654 to 694MHz

Infrared Sync
It could not be simpler, with just a touch of a button, the transmitter and receiver can be synchronized easily.

Auto scan available channel
Manual frequency setting available to operate up to 8 sets of UHF103E simultaneously for a flexible larger installation.

Technical Specs

Carrier Frequency Range:UHF 654-694MHz
Operating Temperature range: -18 ºC (0º F)to +57ºC (+135ºF)
T.H.D: 0.5% typical, ref. +/- 30 kHz deviation, 400Hz tone
Dynamic range: >105 dB A-weighted
Operating Range: 100m(approximately 300 feet under typical conditions)
Audio Frequency Response: +/- 2dB, Minimum 50Hz, Maximum 20kHz

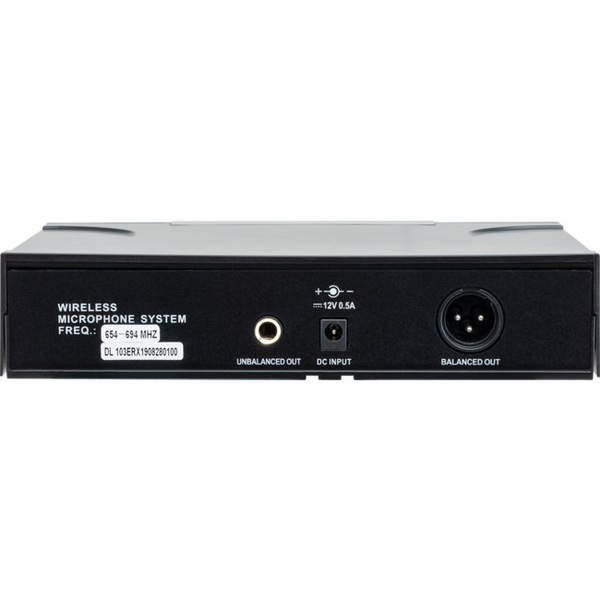

Audio output level (ref. +/- 30kHz deviation with 400Hz tone XLR connector (into 600 Ohm load): -30dBV, 1/4 inch connector (into 3000 Ohm load): -9dBV
Output Impedance: XLR connector: 200 Ohm, 1/4 inch connector: 1k Ohm
XLR output Impedance balanced Pin 1: Ground (cable shield) Pin 2: Positive Pin 3: Negative
Sensitivity: -105dBm for 12dB SINAD, typical
Image rejection: >70dB, typical
Power Requirements: 12V DC 500mA supplied by external power supply
205(W) x 130(D) x 45(H)mm

Wireless Hand Held Microphone(UH-103E)

Cartridge: Dynamic (Handheld)
Antenna: Built-in
RF transmitter Output: 30mW Max
Power requirements: 2x AA size alkaline or rechargeable batteries
Battery Life: +/- 8 hours (Alkaline)
Dimensions: 230mm length x 50mm diameter
Weight: 250g (without batteries)
Housing: Moulded Metal Alloy

Optional bodypack transmitter (UB104E)

Gain adjustment range: 30dB
Input impedance: 500K ohm
RF transmitter output: 30mW maximum
Dimensions: 90(H) x 68(W) x 26(D)mm
Weight: 99.8g (without batteries)
Housing: Moulded ABS case
Power requirements: 2x AA size alkaline or rechargeable batteries
Battery life: > 8 hours (alkaline)

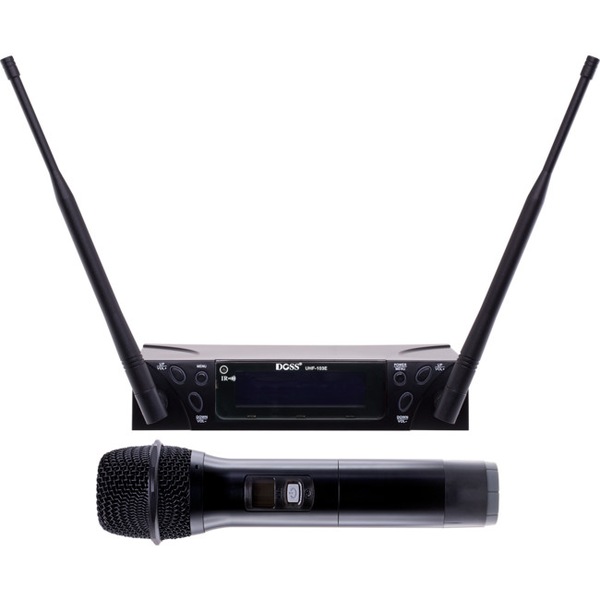

Kit contents:

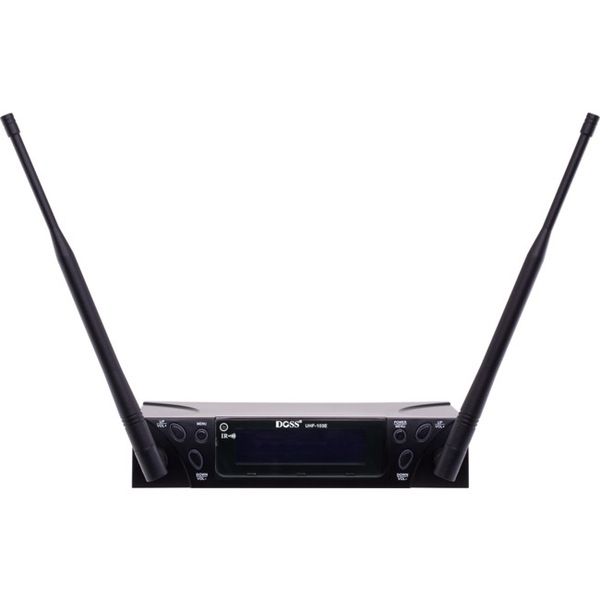

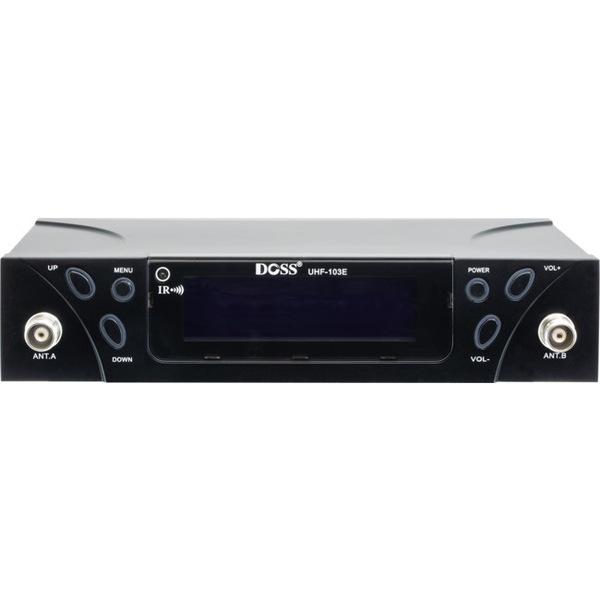

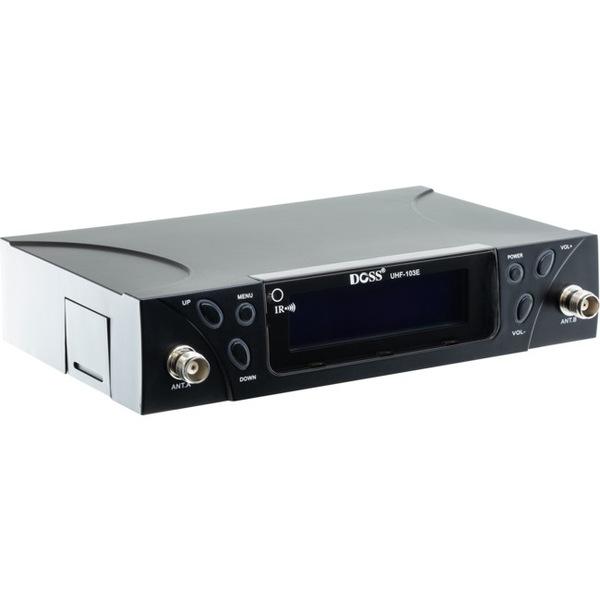

UHF wireless receiver
Hand held wireless microphone (UH103E)
2x Antennas
1.5m length 6.5mm plug to plug mono lead
12V 500mA power supply
2x AA batteries

Weight: 1.544
