URSALINK LORAWAN AU915/AS923 OUTDOOR PIPE PRESSURE IOT SENSOR

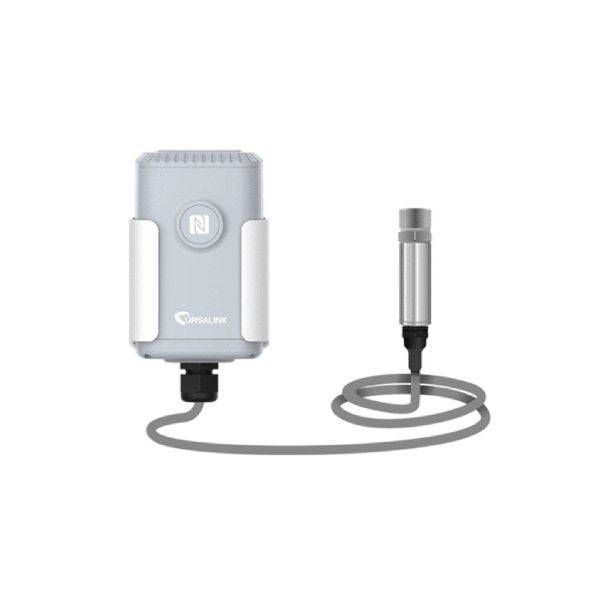

The EM500-PP pipe pressure IoT sensor is a long range wireless sensor compatible with standard LoRaWAN AU915/AS923 protocol. Combined with advanced LoRa technology and 19000mAh battery make it a low-power consumption product with years-long use life. It is designed to measure the pressure of water/oil/gas from a 1/4” pipe connection and it is the fundamental component of a leak detection system.
The EM500-PP-915 is an Outdoor IP66 rated Pipe pressure sensor, used for pressure monitoring in pipelines and tanks.
Great for many applications including smart city, Smart farming / Agriculture.
FEATURES
Robust IP66 rated enclosure
Configuration via NFC
LoRaWAN AU915/AS923
Ursalink Cloud compliant
Low power consumption
SPECIFICATIONS
Manufacturer's Code: EM500-PP-915
Frequency: AU915/AS923
Tx Power: 20dBm
Sensitivity: -147dBm @300bps
Mode: OTAA/ABP Class A
Antenna: Integrated Ceramic Antenna
Pressure Type: Gauge Pressure
Range: 0~1600kPa (16Bar)
Accuracy: ±0.3%FS
Resolution: 1kPa (0.01Bar)
Overload: 150%FS
Process Connection: 1/4” Male
Operating Temperature: -30°C to +70°C
Dimension: 105.4 × 71× 69.5 mm (Waterproof connector and sensor not included)
Power Input: 19000 mAh Li-SOCL2 battery
Mounting: Pole, DIN rail, wall
IP Rating: IP66 (can be upgraded to IP67), Sensor-IP65
Configuration: Mobile APP or PC software via NFC or USB Type-C
PACKAGE CONTENTS
1 x Ursalink Lorawan Au915 As923 Outdoor Pipe Pressure Iot Sensor
1 x DIN/Pole/Wall Mounting kit
SKU: EM500-PP-915
