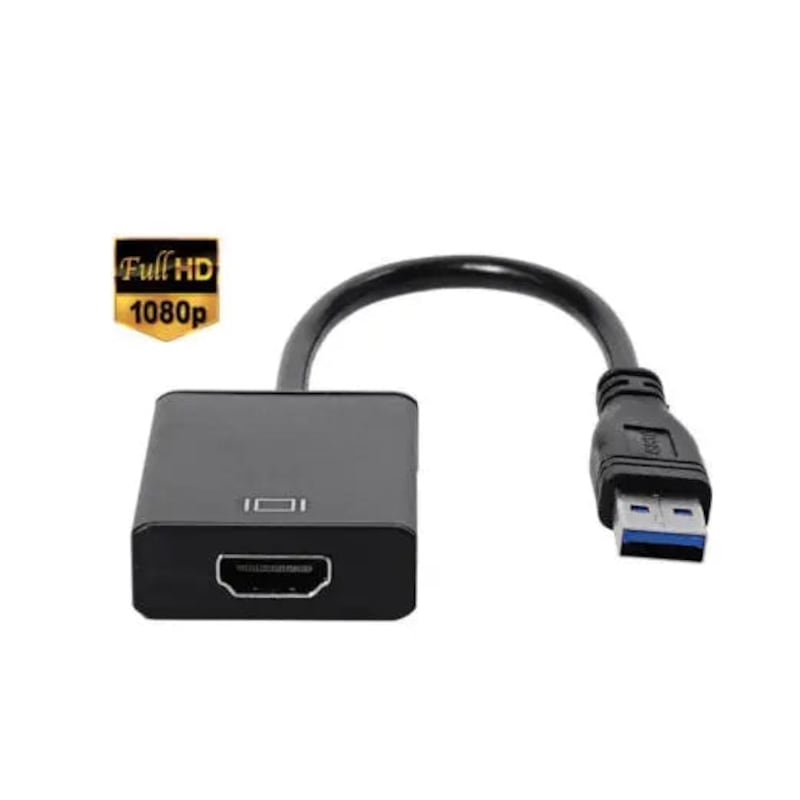

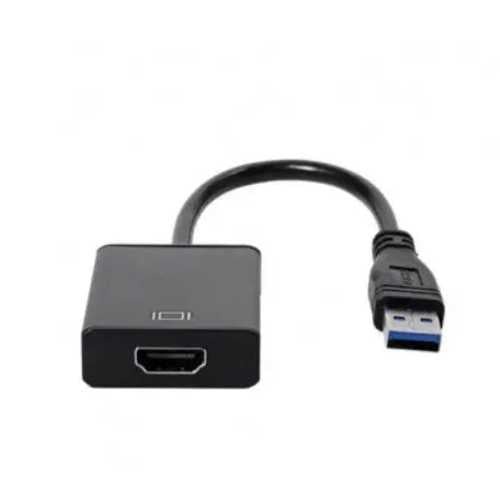

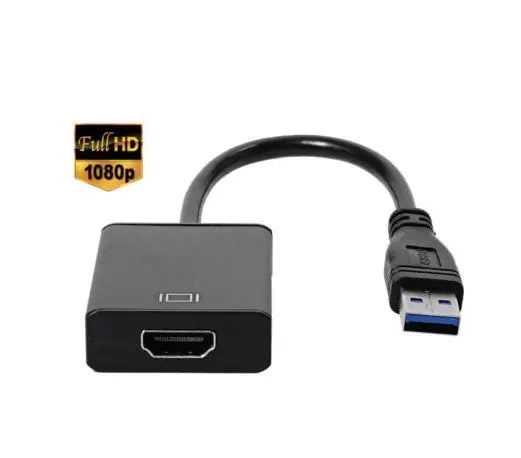

USB 3.0 Male to HDMI Female HD 1080P Converter Cable

Please use this driver: https://www.driverscape.com/download/usb-3.0-to-hdmi-adapter

This USB3.0 to HDMI HD converter, allows you to connect the desktop and laptop USB interface to high-definition display device. So you can watch full HD video or slideshows on the big screen with HDMI input ports such as HDTVs, projectors, slideshows, and more to hear even more rocking music. Output resolution up to 1080p (this is the resolution of your computer's output signal).

• Please Note If your main screen display resolution is set higher than 1920 * 1080, the expansion screen will not be displayed after connecting the device. At this time, please set the main screen resolution to 1920 * 1080 can be used normally.
• Mirror and Extend Mode This USB to HDMI convertor have extend mode let your laptop for visibility of multiple tasks at the same time; Mirror mode gives your laptop to a large screen for a visual enjoyment. Ideal for Simultaneous implementation of many tasks, video conference, corporate training, etc. Use the "WIN+P" shortcut keys to switch mirror and extend mode in Windows system.
• Please Note The frame rate of this HDMI adapter cable is relatively low, so it is more suitable for static screen use, such as monitoring screen expansion, office screen expansion. Not suitable for use as a game of entertainment and HD movie playback, otherwise there will be dropped frames. Please confirm your usage needs before purchasing.

Specifications:

Brand Name: Generic

Type : HDMI

Cables Connector A : USB

Connector B : HDMI

Gender : Male-Female

Maximum operating current :300MA

Working environment :0 to +70

Range of working temperature :-15 ~ 55

Power supply: No external power supply; USB3.0 power supply

Support USB2.0 / USB3.0

HDMI resolution: Up to 1080P / 60HZ

The maximum transmission rate:5.0Gbps

Output DDC number: 5Volts P-P (TTL)

Size (L * W * H) :38mm * 15.mm * 60.2mm

Weight :About 55g

Features:
1. supports desktop or laptop USB2.0 / USB3.0 input

2. support video output: HDMI signal, support for HDMI 1.3b

3. in line with USB3.0 specification

4. Support USB3.0 backward compatible

5. support functions: 1 main display, 2 extended display, 3 mirror

6. HDMI output resolution: Support 480P / 576P / 720P / 1080P

7. Support computer operating system: Win7 (32 / 64bit) / Win8 (32 / 64bit) NOT support Windows 8.1.

8. supports multi-screen function (PC system, maximum support 6 screen, Mac Apple system supports up to 4 screen for windows OS), simultaneous output audio and video to HDTV, projectors, slide projector and other high-definition equipment display, easy to install.

System requirements: Windows 7, Windows 8, Windows 8.1, Windows 10(not all version supported)

Instructions:

1. Turn off or DEACTIVATE any Antivirus or Firewall, DO NOT UNISTALL.
2. You will start receiving pop ups from the products then find the driver.

Sometimes you may find the actual Driver file name for Windows Driver: "WinUsbDisplay.exe".

3. Hit INSTALL and wait..

To make it work on a Windows 11, you may have to install a different driver
MSDisplay_Windows_V2.0.1.7.3 exe file or https://drive.google.com/drive/folders/1YzNJ9EqZNb18GvGohN6vBmHSCtXKBsM6

Package Includes:

1 x USB 3.0 Male to HDMI Female Converter Cable
