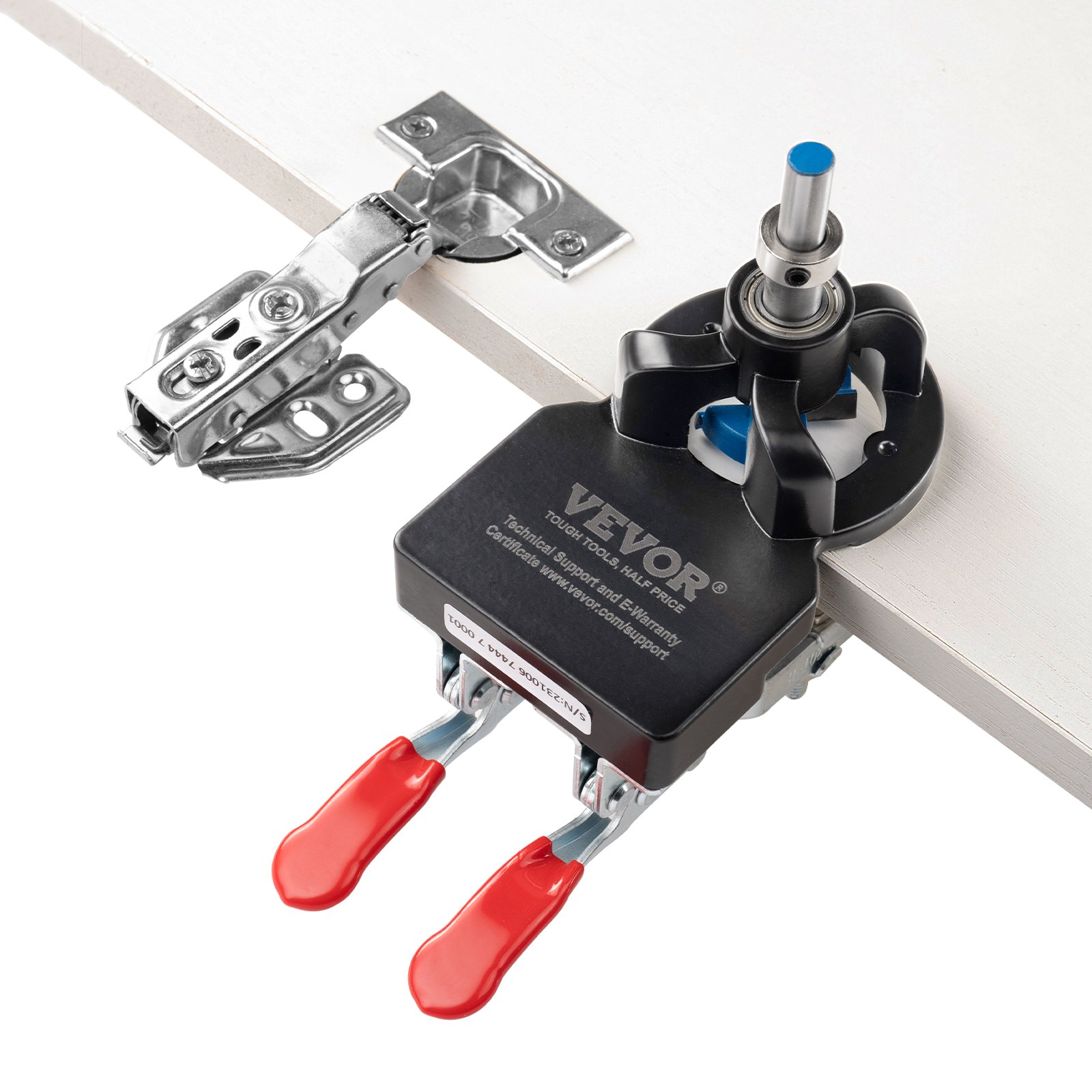

35 mm Concealed Door Hinge Jig, Aluminum Alloy Cabinet Hinge Jig, Accurate Locking Dual Clamp Fixation Hinge Drill Jig with Accessories, Woodworking Tool for Doors Cabinets Hinges

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
$59.99

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by Potiva Deals
35 mm Concealed Door Hinge Jig, Aluminum Alloy Cabinet Hinge Jig, Accurate Locking Dual Clamp Fixation Hinge Drill Jig with Accessories, Woodworking Tool for Doors Cabinets Hinges Mounting
About this item
  • Dual-Clamp Fixation: This adjustable dual-clamp hinge jig ensures precise alignment, unlike single-clamp versions, providing superior stability and preventing slippage. Its built-in dual-clamp design quickly and securely holds workpieces in place, preventing displacement of hole positions and ensuring drilling accuracy and stability. It also minimizes drilling deviations caused by workpiece movement, reducing errors and maintaining drilling precision.

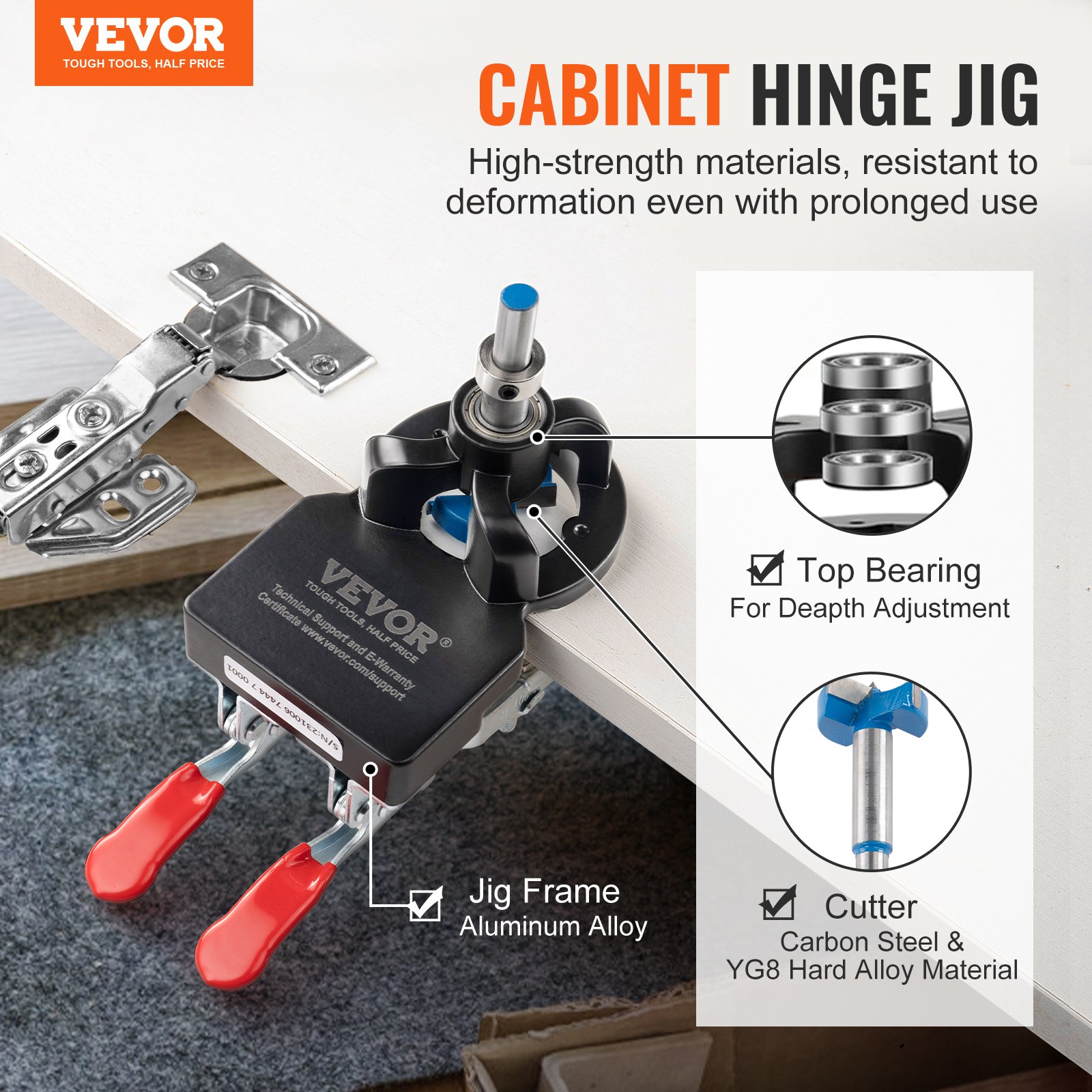

  • Sturdy and Durable: The door hinge jig frame is made of high-strength aluminum alloy, while the drilling tools are made of carbon steel and YG8 hard alloy. The overall structure is stable, ensuring durability and adaptability to different environments, including harsh weather conditions, high temperatures, and moisture. It maintains its strength and stability, with minimal risk of deformation or damage even with prolonged use.

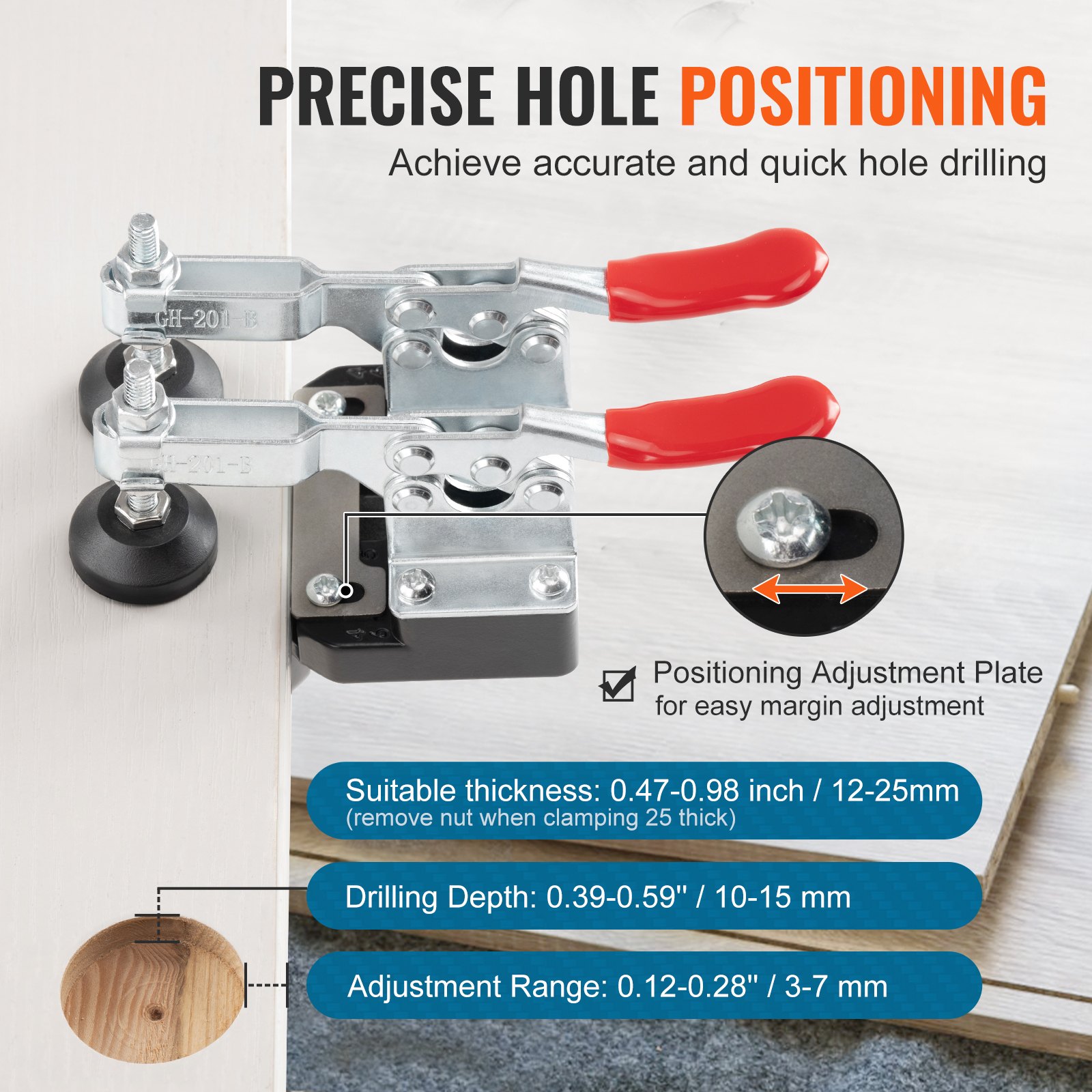

  • Precision Drilling: This tabletop concealed hinge jig achieves quick and precise hole alignment through the adjustable positioning plate for edge spacing and the top-bearing depth adjustment. You can easily adjust the edge spacing by loosening the screws, with a range of 0.12-0.28 inches (3-7 mm), and the drilling depth ranges from 0.39-0.59 inches (10-15 mm). The higher the top-bearing height, the more precise the holes it drills.

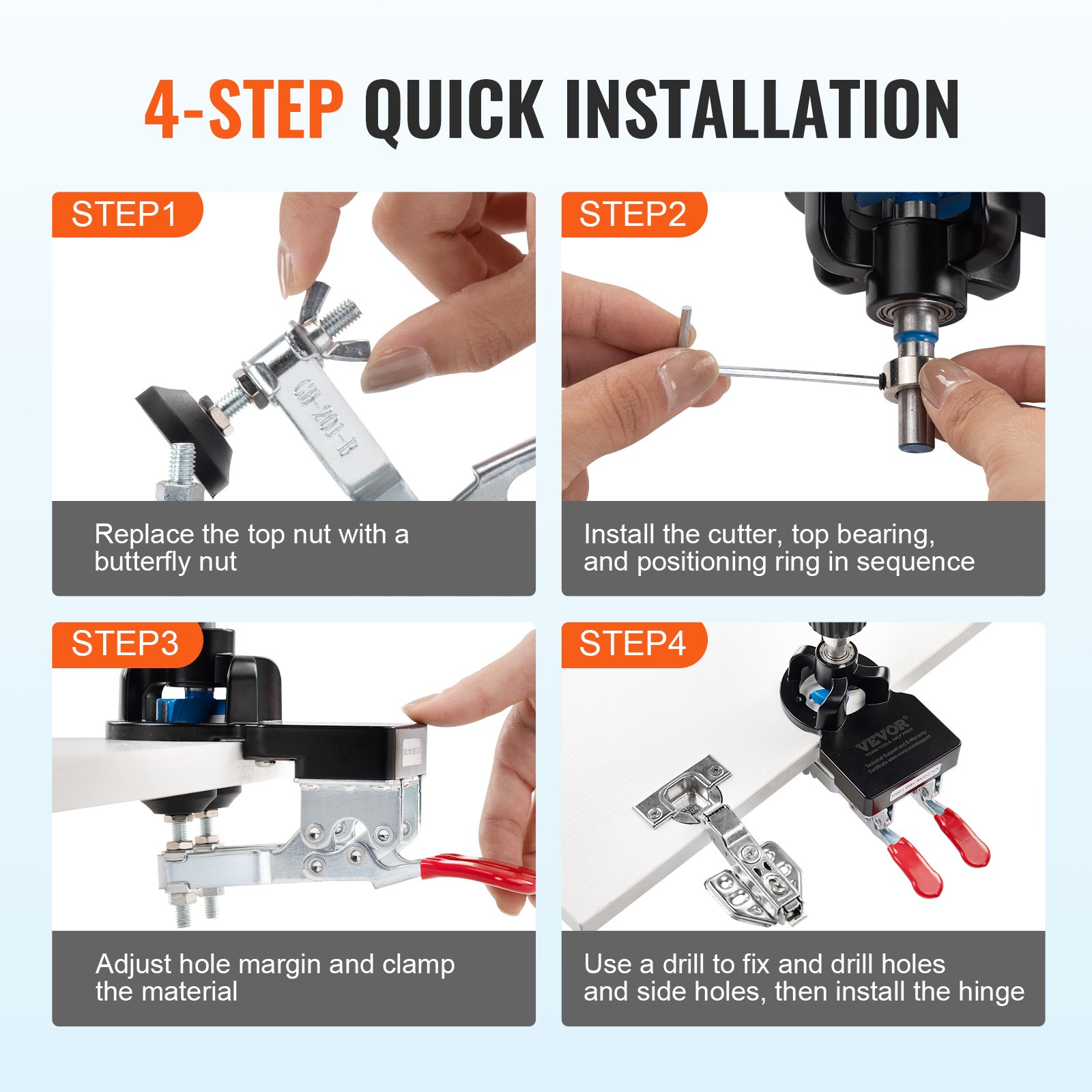

  • User-Friendly: Our hinge jig kit is easy to operate and install without professional assistance. Just follow the 4-step instructions in the manual: Step 1, replace the top nut with a butterfly nut; Step 2, install the tools, top bearing, and limit ring in sequence; Step 3, adjust the hole spacing and clamp the workpiece securely; Step 4, use an electric drill to fix, drill the holes and side holes, and install the hinge. You can complete the installation in just a few minutes.
  • Wide Application: This cabinet hinge jig is designed for 1.38'' hinges and can be used with various drill bits to meet different usage scenarios. It is ideal for everyday household equipment installations and repairs, such as cabinets, wardrobes, and door locks. It has a 1.38''/35 mm drill bit for drilling holes. The distances between hinge screws are 1.81'' (46 mm), 1.89'' (48 mm) or 2.05'' (52 mm).

Multifunctional Hinge Hole Opener
Adjustable Hole Spacing
Dual Clamp Fixation
Simple and Fast Installation
Fits 1.38'' Hinges
Edge Sealing Groove Design

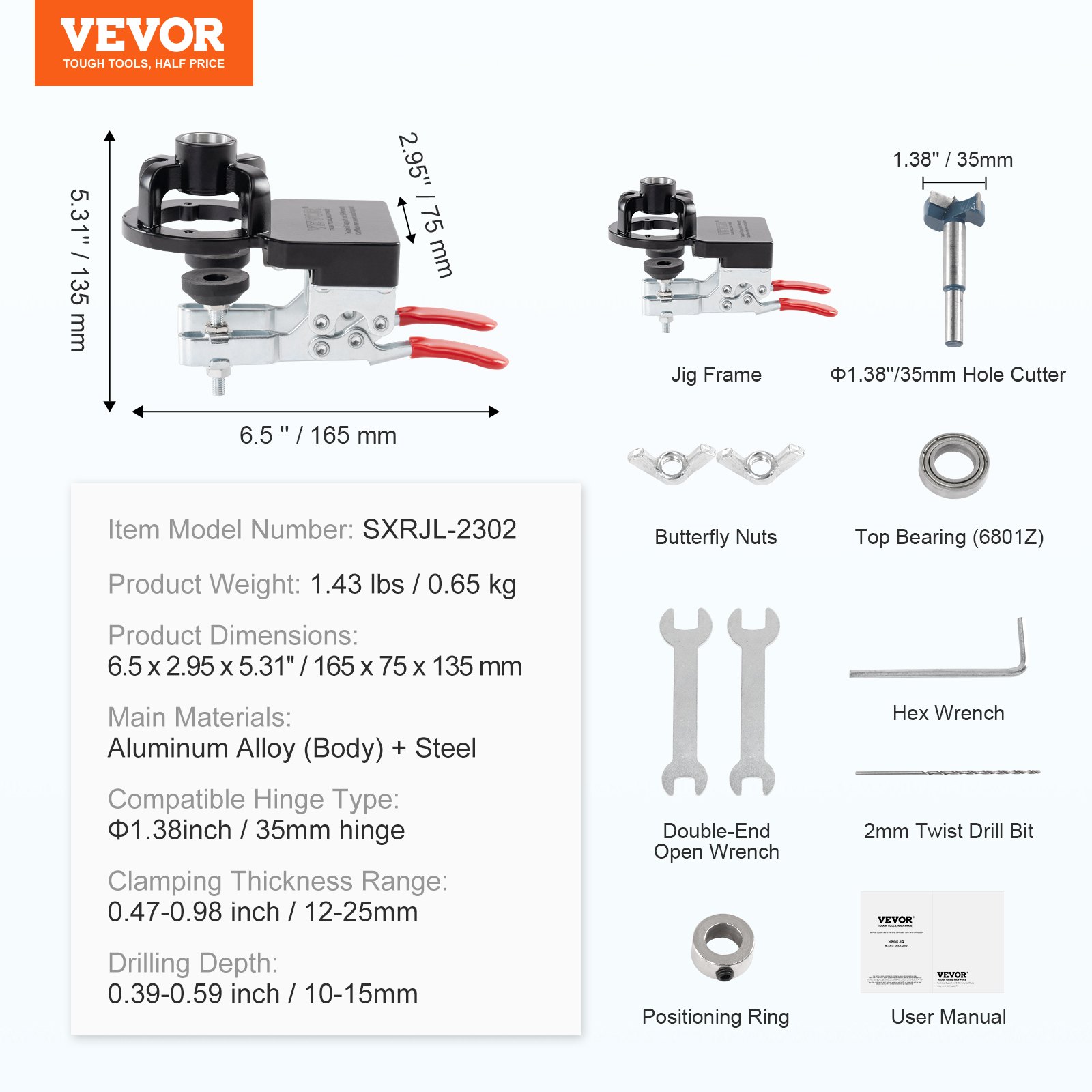

Main Materials: Aluminum Alloy (Body) + Steel,Item Model Number: SXRJL-2302,Product Weight: 1.43 lbs / 0.65 kg,Compatible Hinge Type: Φ1.38inch / 35mm hinge,Drilling Depth: 0.39-0.59 inch / 10-15mm,Clamping Thickness Range: 0.47-0.98 inch / 12-25mm,Product Dimensions: 6.50 x 2.95 x 5.31 inch / 165 x 75 x 135 mm

SKU: JLDWKKQTS35MMM9D7V0

Reference ID: 13577364
