Victron Energy MPPT 250/85 SmartSolar MPPT 250/85 Solar Charge Controller TR

Image 1
Hurry! 9 items left!
$1356

Collect 1356 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozimall
Secure ways to pay at checkout
  • Charge current up to 85A, and PV voltage up to 250V
  • Automatically adjust to a 12, 24 or 48V nominal battery voltage
  • Ultra-fast Maximum Power Point Tracking (MPPT)
  • Advanced Maximum Power Point Detection in case of partial shading conditions.
  • Bluetooth Smart built-in
  • Screw terminals


Model: MPPT 250/85 Ask about ground fault detection

Charge current: 85 A
Maximum PV Open Circuit Voltage: 250V
Maximum PV Power: 1.2kW (12V), 2.4kW (24V), 4.9kW (48V)
Battery voltage (nominal): 12 / 24 / 48 V auto select

PV voltage up to 250 V

The SmartSolar MPPT 250/85 and 250/100 charge controllers will charge a lower nominal-voltage battery from a higher nominal voltage PV array. The controller will automatically adjust to a 12, 24 or 48V nominal battery voltage.

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPT’s tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).

Flexible charge algorithm

Fully programmable charge algorithm (see the software page on the Victron website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Bluetooth Smart built-in

Dongle not needed The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

Optional: pluggable LCD display

Simply remove the rubberseal that protects the plug on the front of the controller, and plug-in the display.

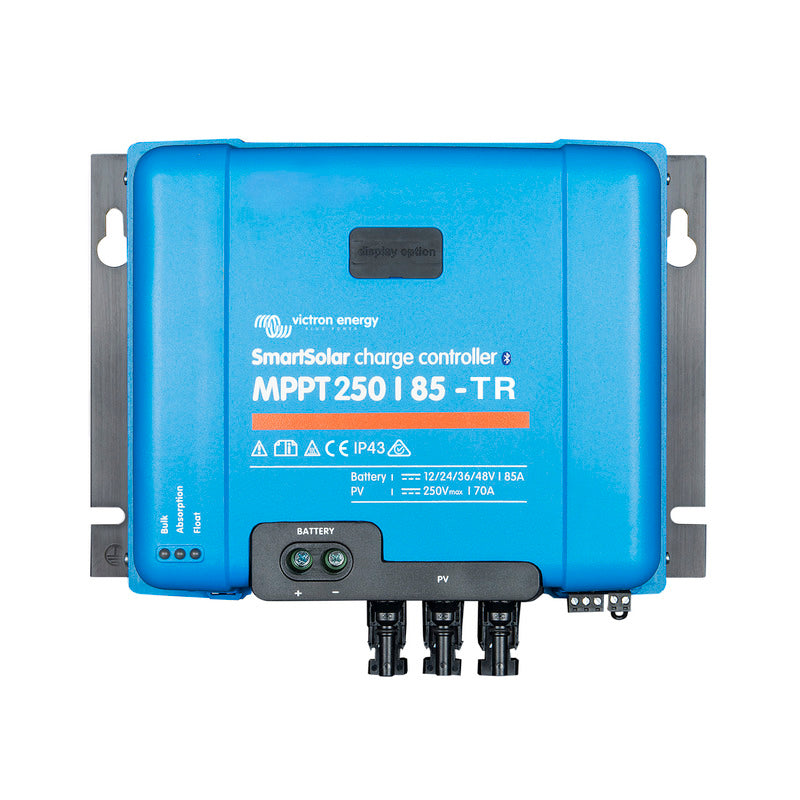

NOTE: Image includes optional pluggable dislplay.

Additional Information
    Part Number SCC125085210
    Manufacturer

    Victron Energy



    Downloads




    SKU: SCC125085210
