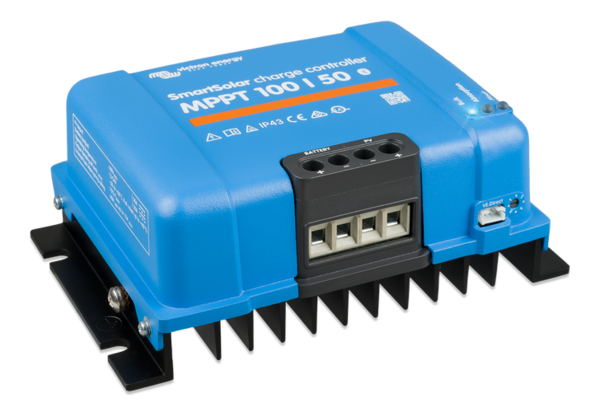

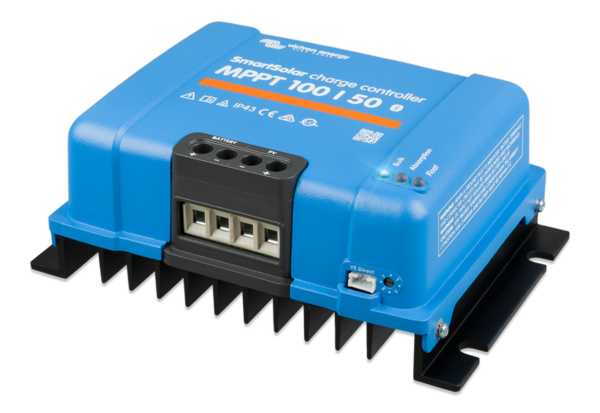

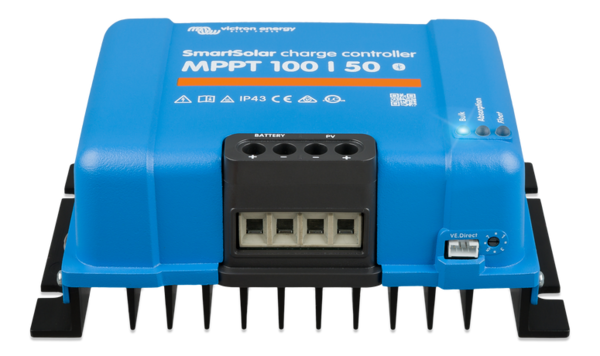

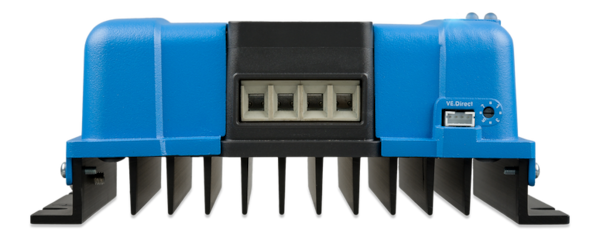

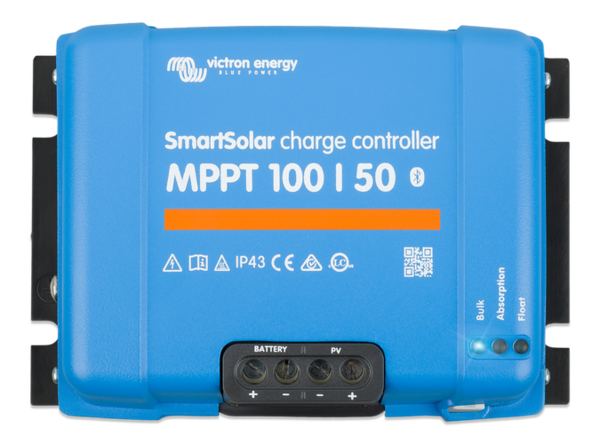

Model: SmartSolar MPPT 100/50
Charge current: 50 A
Maximum PV Open Circuit Voltage: 100V
Maximum PV Power: 700W (12V), 1400W (24V)
Battery voltage (nominal): 12 / 24 V auto select
PV Maximum Voltage: 100V
Rated charge current: 50A
Battery Voltage: 12/24V (auto select)
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPT’s tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).
Flexible charge algorithm
Several preconfigured algorithms.
One user programmable algorithm. Manual or automatic equalisation.
Battery temperature sensor. Battery voltage sense option.
| Part Number |
SCC110050210 |
|---|---|
| Manufacturer |
Victron Energy |
|
BlueSolar and SmartSolar Charge Controller MPPT - Overview |
 |
SmartSolar MPPT 100/30 & 100/50 |
