Collect 165 Everyday Rewards points
Dispatch in 2 business days

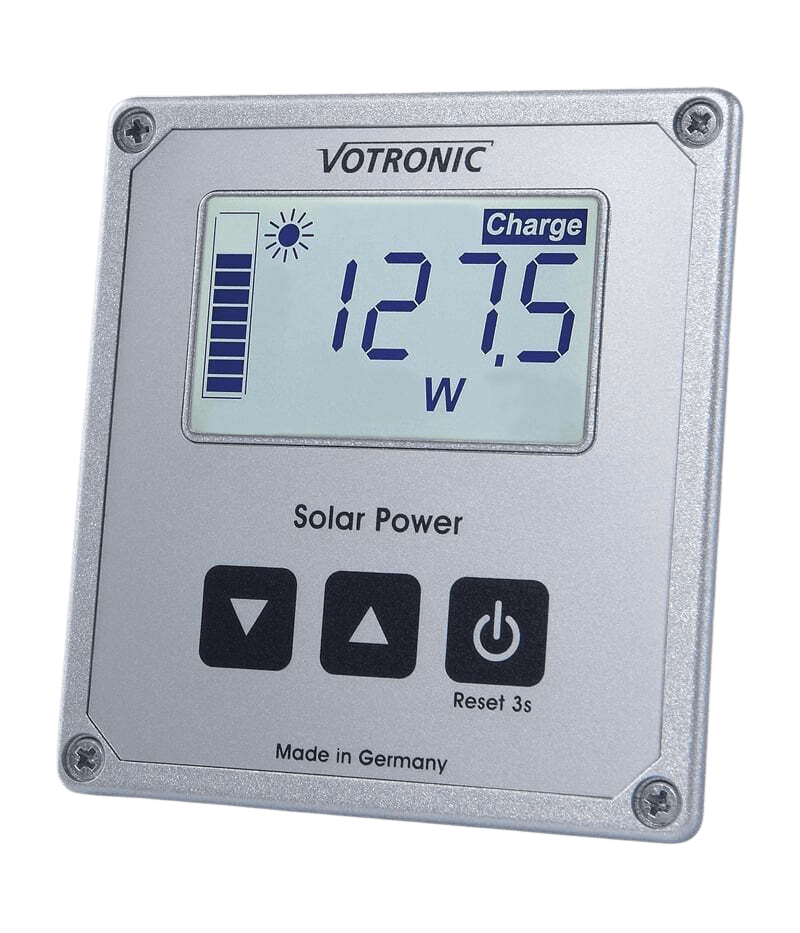

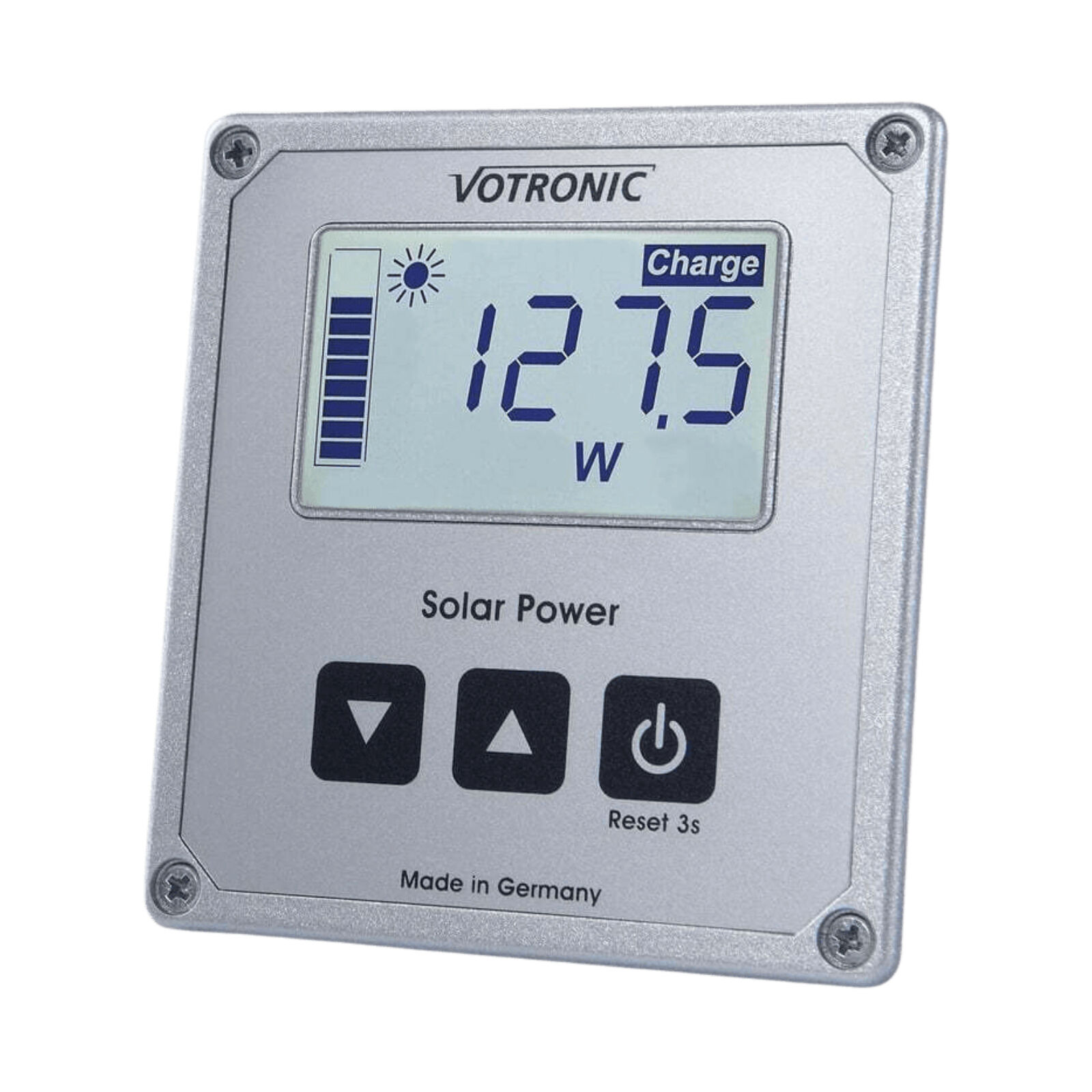

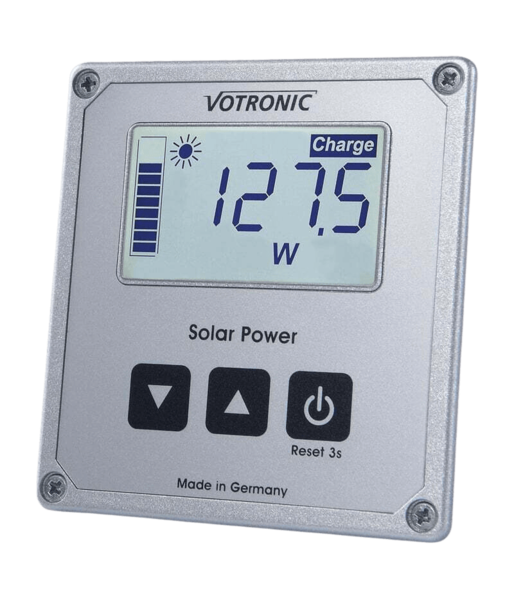

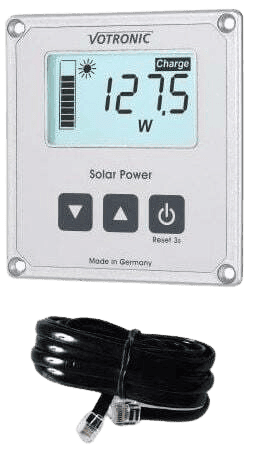

Discover the ultimate solution for monitoring your solar power system with the Votronic Remote Display, specifically designed for use in marine environments and caravans. This humidity-proof version is perfect for ensuring your solar setup's efficiency whether you're at sea or on the road.

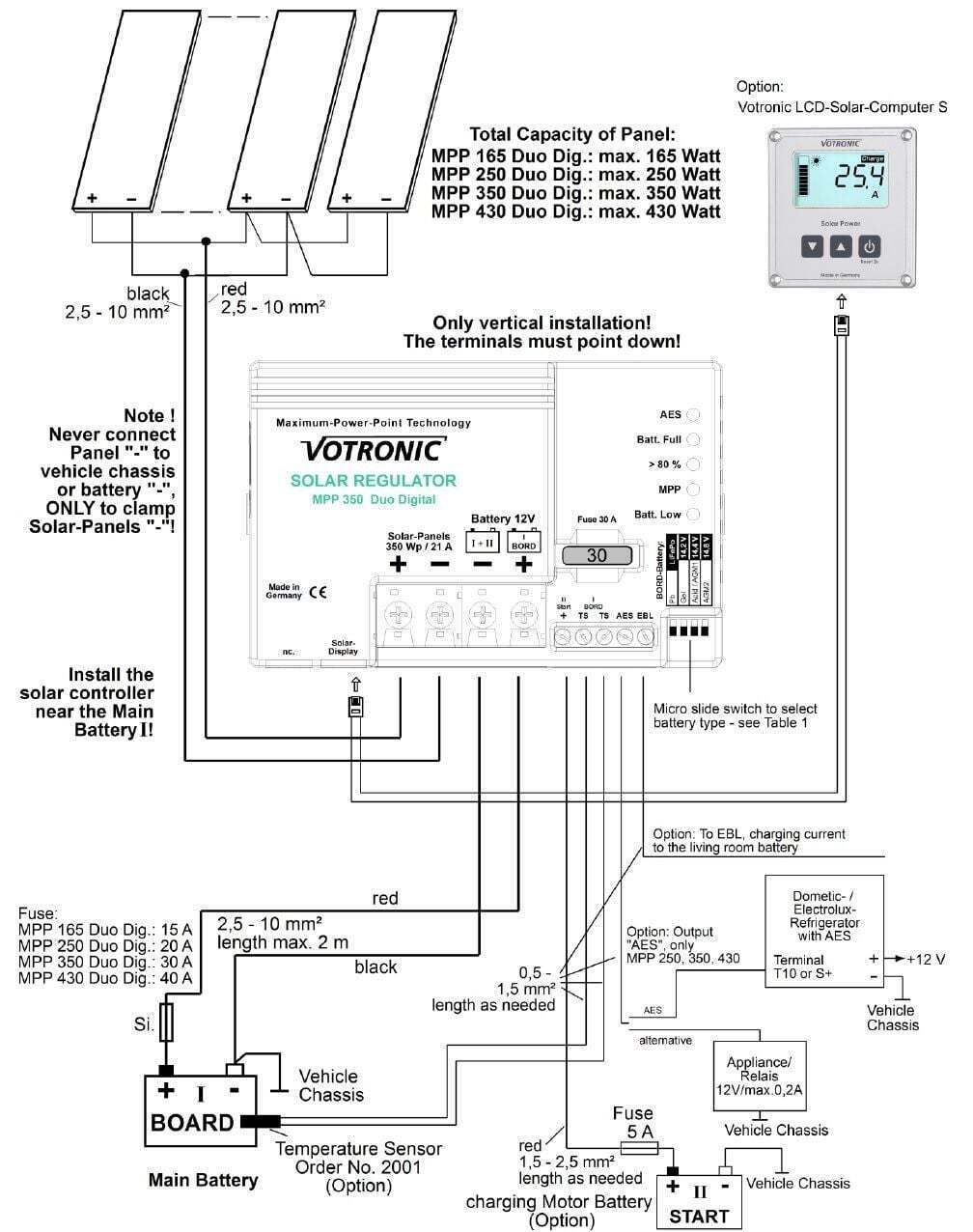

Easily answer critical questions about your solar system's performance with the Votronic solar power measurement unit. Compatible with Votronic solar charging controllers from the SR and MPP series, this display provides immediate and comprehensive information about your solar energy supply. Whether you're concerned about potential shading, dirt on your solar panels, or system malfunctions, this display keeps you informed.
Featuring a clear layout of measurements and a simple one-button operation, this display enhances your control and utilization of your solar system. Monitor your solar power effortlessly with an instant bar graph representation and enjoy excellent readability under any lighting conditions, thanks to the switchable background illumination.
This digital display seamlessly integrates with the Votronic modular system, matching the appearance and mechanics (with an identical height of 85 mm) of other display modules. Its compact front panel and minimal mounting depth of only 18 mm allow for installation in virtually any space. For non-flush mounting options, a suitable casing is available as an accessory.

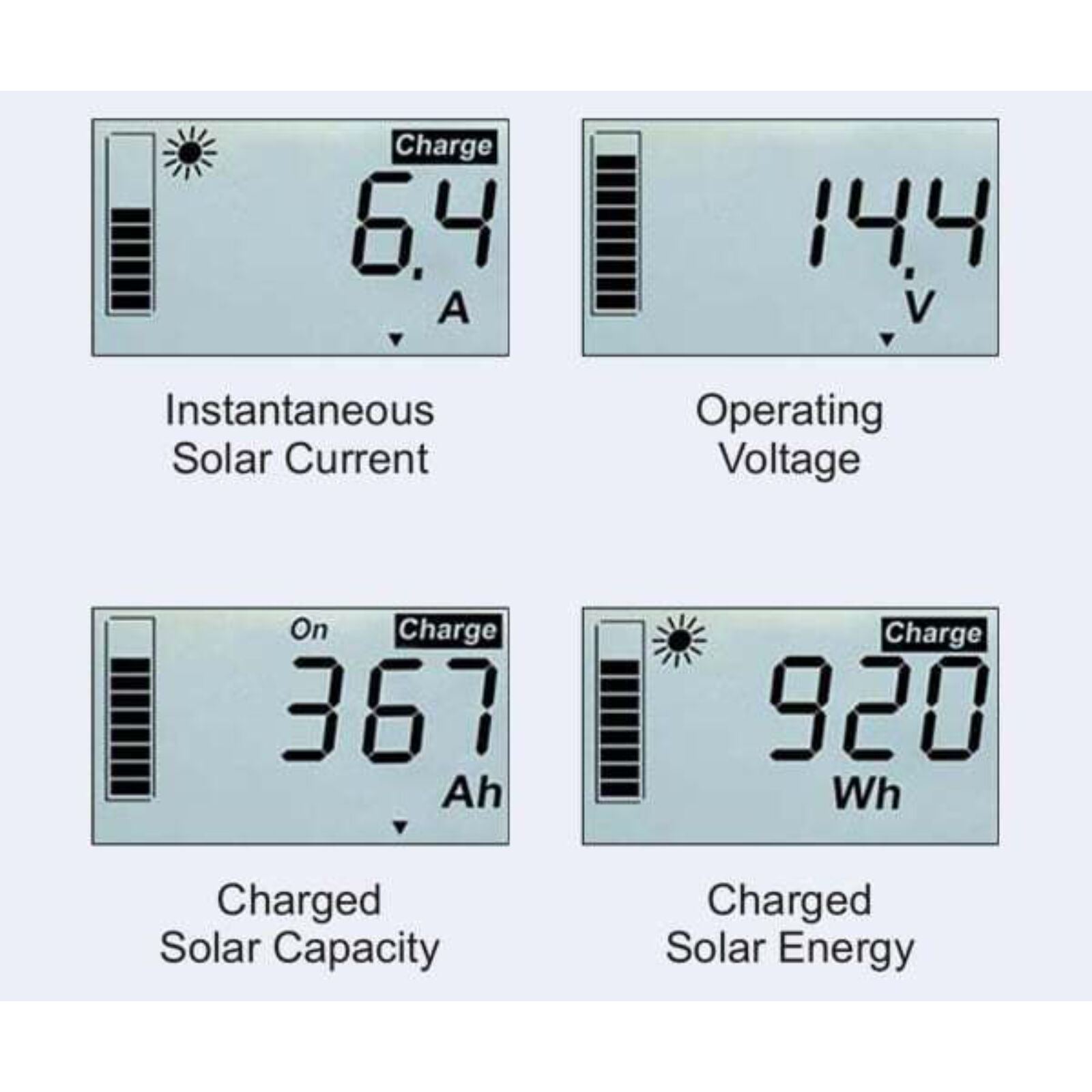

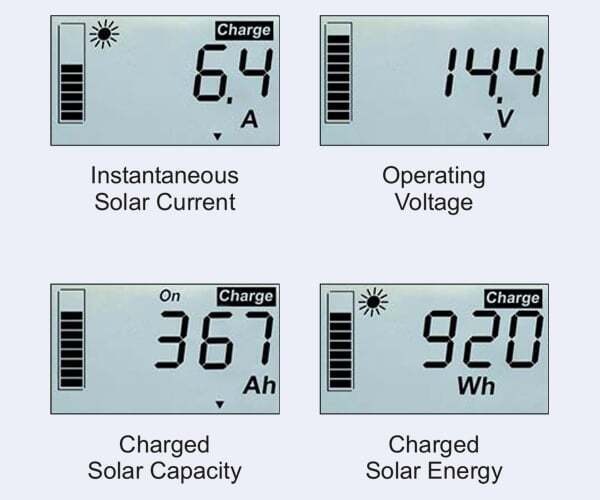

Powered by microprocessor control, this unit measures, calculates, and displays a range of valuable solar metrics:
These detailed readings offer insights into geographic and atmospheric influences, sun exposure, partial shading, or soiling of solar modules, and overall battery health.

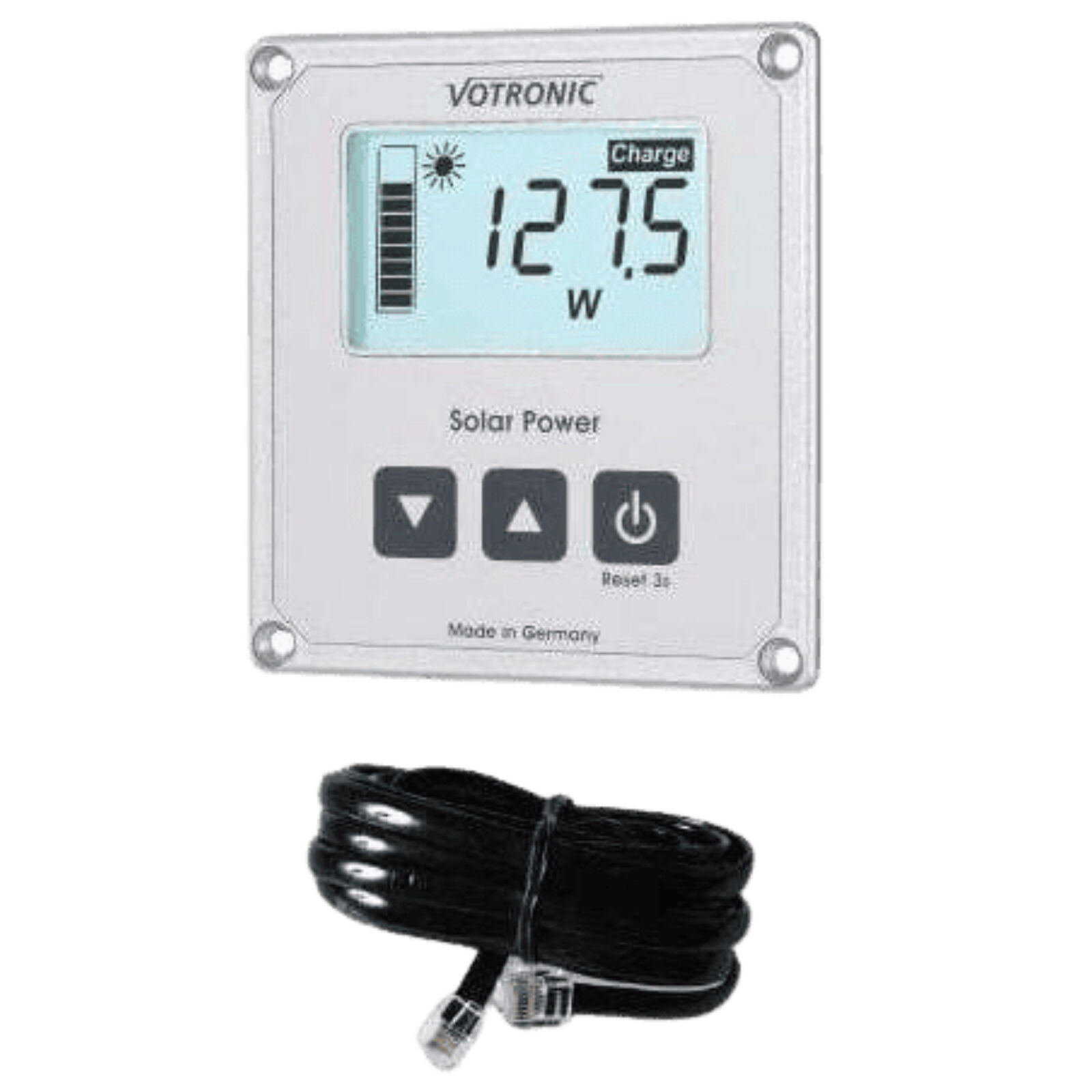

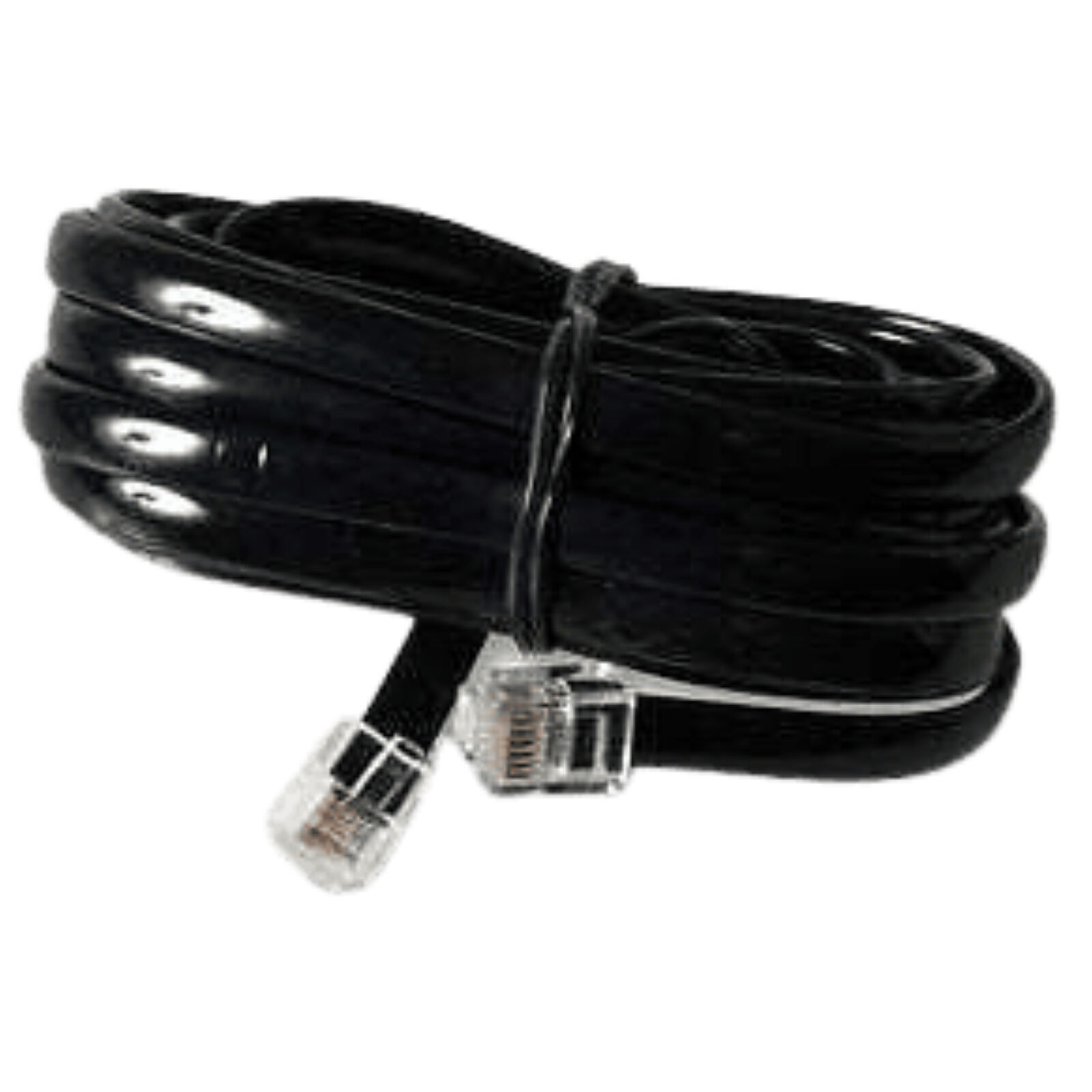

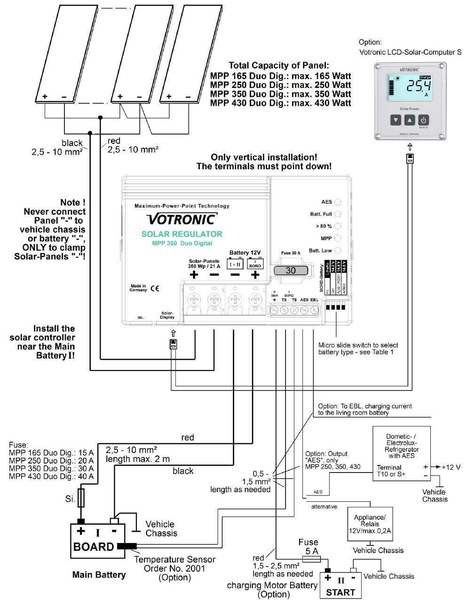

The Votronic Remote Display comes ready for connection to solar controllers, including a 5-meter connection cable for ease of setup.
Stay informed and maximize the efficiency of your solar system with the Votronic Remote Display, the essential tool for any marine or caravan solar power setup.
| Nominal Voltage (DC) in [V] | 12 and 24 |
| Â Current Consumption max. in [mA] | 3 - 30 (depending on illumination) |
| Â Display | LC Display with specific segments |
| Â Display-Functions | W, A, V, Ah, Wh |
| Â Measuring Range [Wp] | 20 - 990 |
| Â Dimensions (WxDxH) in [mm] | 80 x 85 x 25 |
| Â Assembly Dimensions (WxDxT) in [mm] | 66 x 72 x 22 |
| Â Weight in [g] | 55 |
| Â Mark of conformity | CE, E-Test (EMV/Automotive Regulations) |
| Â Ambient Conditions, Humidity of Air:Â max. 95 % RH, No Condensation | |
| Â Delivery Scope: Connection Cable 5m, Fastening Screws, Operating Manual, Drilling Jig |
We are liable for material defects of all our products within 36 months from the purchase date against representation of the sales slip or of the invoice, proper handling, intended use and consideration of the installation and operating manual provided. If the buyer or third execute modification and repair tasks to the product (external intervention) or will the electronic or the entire product damaged by moisture, any claims for defects for these tasks and the results being involved will be void. Claims will also be void for any service being performed by third, which has not been ordered by us in writing. Service is exclusively allowed to be performed by Votronic GmbH & Co. KG Lauterbach.
GTIN: 4250683612090
Estimated Delivery Time Frame:1-10 business days
