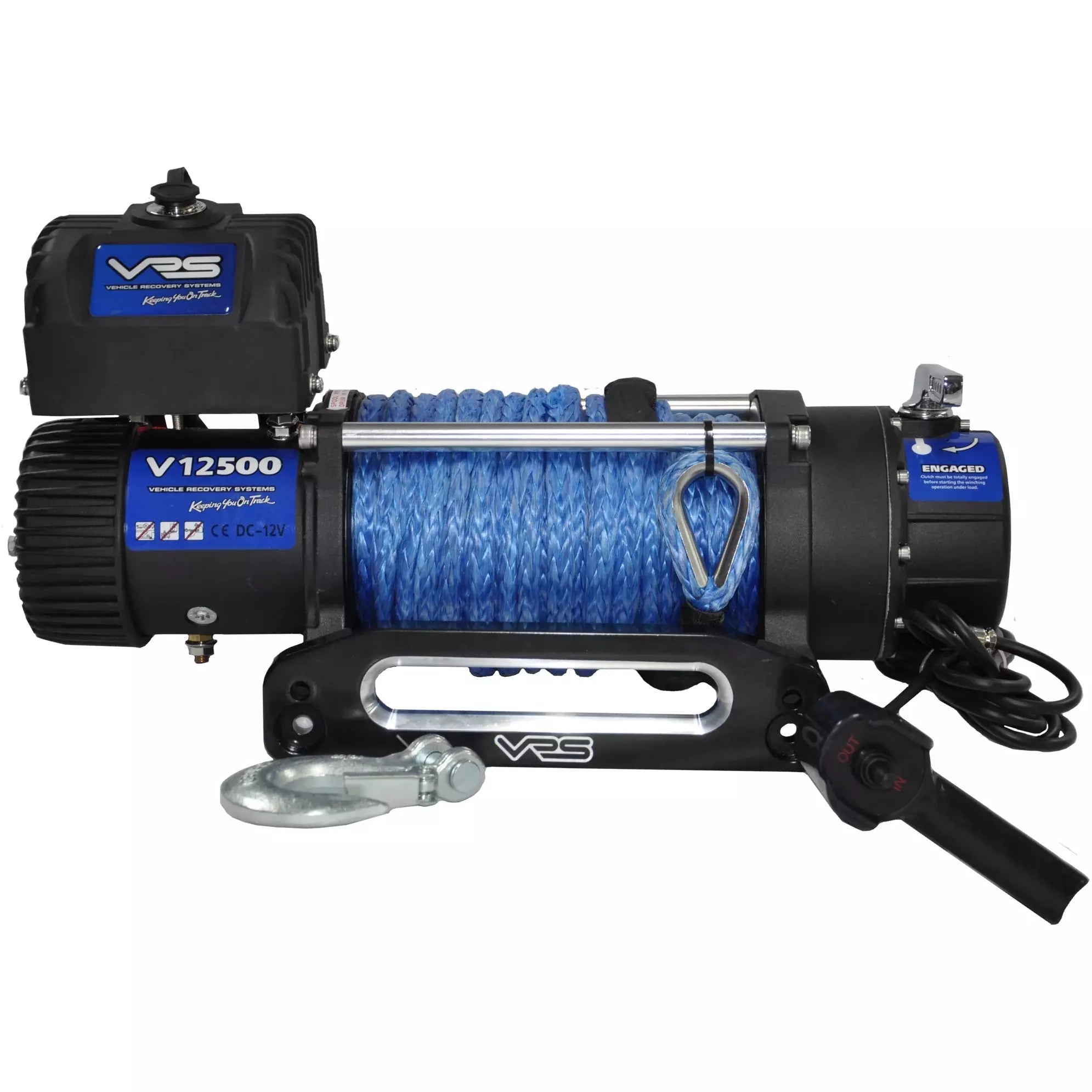

VRS V12500 winch with synthetic rope V12500S

VRS V12500 winch with synthetic rope V12500S

Hurry! 9 items left!

$1460

Collect 1460 Everyday Rewards points

$89.00 Australia-wide (per-item)

Sold & shipped by Winchworld

Secure ways to pay at checkout

(0)

FEATURES

IP68 Water & Dust rating
Textured UV and corrosion resistant finish
Sealed to resist water penetration
Stainless steel hardware and fittings
Heavy duty sealed high amperage contactor controller
Multi-segmented cam activated brake
Powerful pulling power
Fast line speed under load
Designed in Australia for the World

When you’re out there in the thick of it, you need some serious machinery on your side. With an impressive 5670kgs of pulling power and fast line speed under load, the VRS 12500lb winch is the one vehicle recovery winch no driver, from the novice to the serious off-roader, should be without. Even in the most extreme conditions, this tough nut has the muscle to haul your vehicle back on track-fast. Get serious with your safety and get yourself a VRS winch.

SPECIFICATIONS

Line Pull	12,500lb / 5,670kg
Motor 12V	Series Wound 5.3hp/3.9kw 12v DC
Gear Train	3 stage planetary gears
Gear Ratio	273 : 1
Freespool	Sliding ring gear
Brake	Automatic, in the drum
Battery	Recommended 650 CCA minimum for winching
Battery Lead	25mm, 72″ (1.83M)
Synthetic Rope Size	11mm x 26m
Drum Size	2.5″ x 9.0″ (64mm x 224mm)
Mounting Bolt Pattern	10″ x 4.5″ (254mm x 114.3mm)
Dimensions	23″ x 6.6″x 8.4″ (552mm x 168mm x 214mm)

LINE PULL AND ROPE CAPACITY

Layer of wire rope	Line Pull kg / lb	Total Rope on the Drum m/ft
1st Layer	5,670 / 12,500	5.4 / 17.6
2nd Layer	4,536 / 10,000	11.4 / 37
3rd Layer	3,629/ 8,600	19.4 / 63
4th Layer	3,402 / 7,500	26 / 85

LINE SPEED AND AMP. DRAW (1ST LAYER OF ROPE ON THE DRUM)

Line Pull kg/lb	Line Speed mpm/fpm	Amp. Draw 12V
No Load	10.8 / 35.4	80
1,814 / 4,000	2.8 / 9.19	180
2,722 / 6,000	2.3 / 7.55	210
3,629 / 8,000	2.1 / 6.89	250
4,536 / 10,000	1.9 / 6.23	290
5,670 / 12500	1.7 / 5.58	340

PACKAGE

Winch Weight	34 kg
Box Dimension	620 x 220 x 400 mm

STANDARD ACCESSORIES

Detachable Contactor Pack

Remote control

Synthetic Rope with Hook

Roller fairlead

1.83m (6′) 25mm battery lead

Handsaver strap

ITEM NUMBER

V12500S

WARNING

Winches are not to be used for the lifting or moving of persons.

LIMITED LIFETIME WARRANTY

Warrants the original purchaser that the mechanical components will be free of defects in material and workmanship for the lifetime of the winch and the electrical components will be free of defects in material and workmanship from a period of 1 year from the original date of purchase.

VRS LImited Lifetime Warranty
