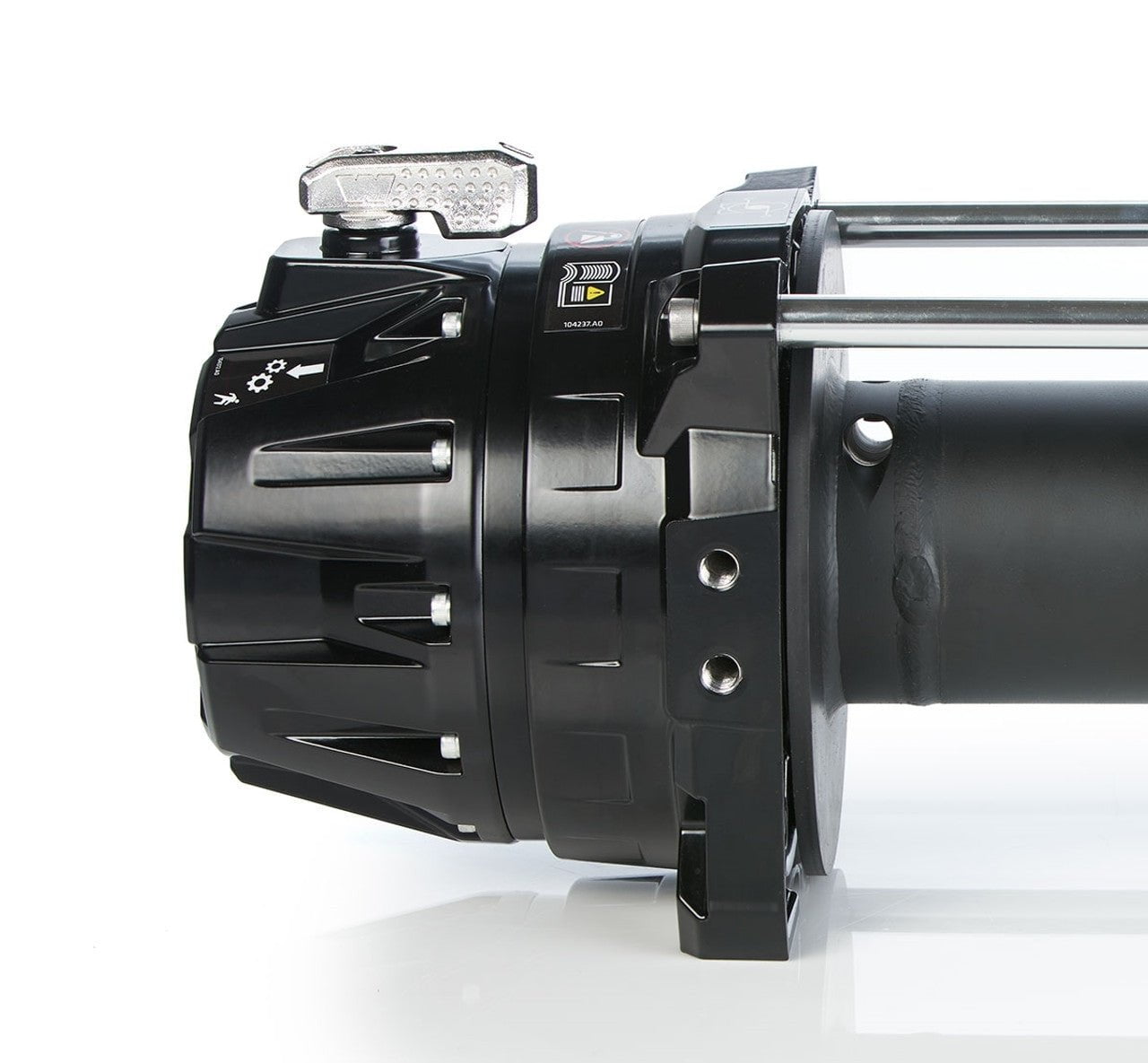

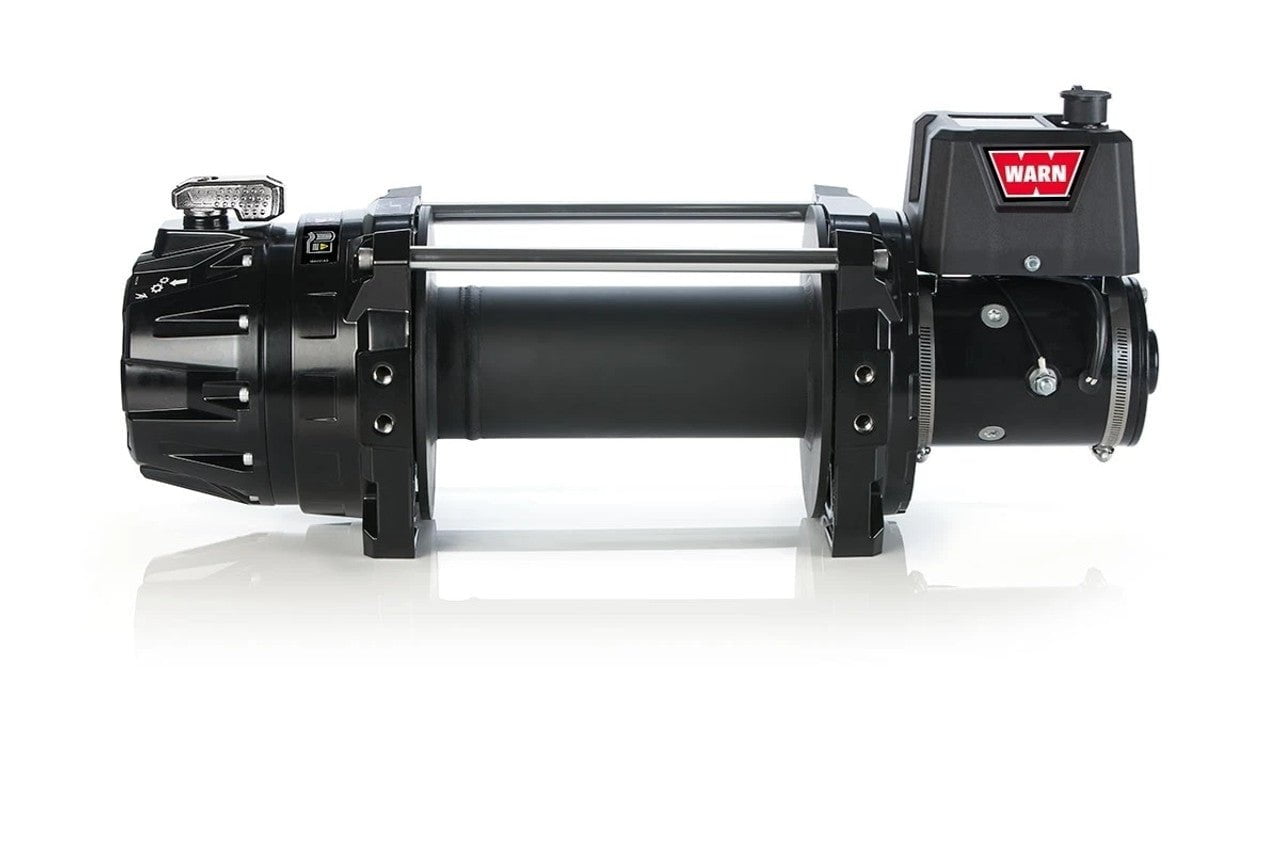

Warn Industrial Dc Hoist 18000lbs Series 18 Dc
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 7282 Everyday Rewards points
Collect 7282 Everyday Rewards points
Heavy Pulling Power of up to 18,000 lbf. (single line)
Part Number:Â W18000-72005Â (24V) |
Rated Pulling Force:Â 18000 lbf (8165 kgf) |
Drum Barrel Diameter:Â 4.0 in (102 mm) |
Drum Flange Diameter:Â 8.24 in (209 mm) |
Distance Between Flanges:Â 9.95 in (253 mm) |
Recommended Maximum Wire Rope Diameter:Â 1/2 in (12.7 mm) |
Recommended Minimum Wire Rope Breaking Strength:Â 26600 lbf (12066 kgf) |
Approximate Shipping Weight:Â 103.0 lbs (46.7 kg) |
Duty Cycle (intermittent per SAE J706 section 6.2):Â 40 ft (12.2 m) |
Mounting Bolt Torque: 35 – 40 ft*lbf (47 – 54 N*m) |
Maximum Layers of Wire Rope: 3 (with 1/2″ dia. rope) |
Gear Reduction:Â 315:1 |
Brake Type:Â Disk |
Contactor / Remote Type:  Industrial contactor with 33′ (10m) heavy duty remote |
Standards Compliance:Â SAE J706 CE Machinery Directive 98/37/EC and 2006/42/EC CE Electromagnetic Compatibility 2004/108/EC |
Drum Layer | Line Load * | No Load Line Speed | Drum Capacity | ||||
lbf | kgf | kN | ft/min | m/min | ft | m | |
1 | 18000 | 8165 | 80.1 | 18.5 | 5.6 | 20 | 6.1 |
2 | 14727 | 6680 | 65.5 | 22.2 | 6.8 | 45 | 13.7 |
3 | 12462 | 5653 | 55.4 | 26.7 | 8.1 | 75 | 22.9 |
Line Load | Current Draw | Line Speed | Duty Cycle | ||
lbf | kgf | Amps | ft/min | m/min | min/10min |
0 | 0 | 58.1 | 18.5 | 5.6 | 4.3 |
3000 | 1361 | 104.0 | 11.0 | 3.4 | 2.0 |
6000 | 2722 | 137.8 | 8.6 | 2.6 | 1.5 |
9000 | 4082 | 169.4 | 7.1 | 2.2 | 1.2 |
12000 | 5443 | 209.7 | 6.0 | 1.8 | 0.9 |
15000 | 6804 | 253.2 | 4.9 | 1.5 | 0.7 |
18000 | 8165 | 278.2 | 4.6 | 1.4 | 0.7 |
