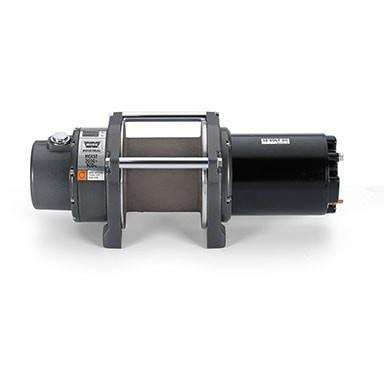

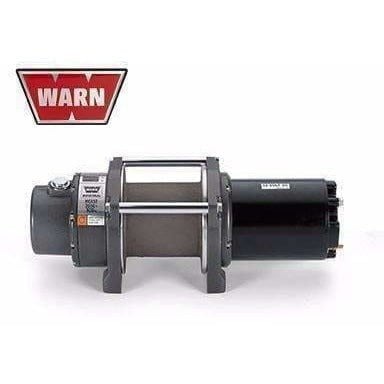

Warn Industrial Dc Hoist 2000lbs Dc 2000

DC2000

The DC2000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC2000 hoist is built on a compact midsize framed with integrated tie bars that’s easy to install. Controls and accessories available separately.

DC2000 SPECIFICATIONS

Part Number: DC2000-63899 (12V)

Part Number: DC2000-85190 (24V)

Rated Capacity: 2000 lbf (907 kgf)

Drum Barrel Diameter: 4.25 in (108 mm)

Drum Flange Diameter: 6.25 in (159 mm)

Distance Between Flanges: 4.5 in (114 mm)

Recommended Maximum Wire Rope Diameter: 1/4 in (6.4 mm)

Recommended Wire Rope Breaking Strength: 7000 lbf (3175 kgf)

Approximate Shipping Weight: 40 lbs. (18.1 kg)

Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)

Mounting Bolt Torque: 32-34 ft*lbf (43 – 46 N*m)

Maximum Layers of Wire Rope: 2

Gear Reduction: 261

Brake Type: Automatic Cone

Contactor/Remote Type: Not Included

Standards Compliance:
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC
ASME B30.5

PERFORMANCE DATA BY LAYER – 12V

Drum Layer	Line Load *	No Load Line Speed	Drum Capacity
lbf	kgf	kN	ft/min	m/min	ft	m
1	2000	907	8.9	14.7	4.5	20	6.1
2	1800	816	8.0	16.3	5.0	43	13.1

FIRST LAYER PERFORMANCE (12V)

Line Load	Current Draw	Line Speed	Duty Cycle
lbf	kgf	Amps	ft/min	m/min	min/10min
0	0	13	14.7	4.5	Continuous
400	181	30	14.5	4.4	Continuous
800	363	48	13.9	4.2	6.7
1200	544	67	13.5	4.1	4.1
1600	726	87	13.0	4.0	2.9
2000	907	107	12.4	3.8	2.2

PERFORMANCE DATA BY LAYER – 24V

Drum Layer	Line Load *	No Load Line Speed	Drum Capacity
lbf	kgf	kN	ft/min	m/min	ft	m
1	2000	907	8.9	14.5	4.4	20	6.1
2	1800	816	8.0	16.1	4.9	43	13.1

FIRST LAYER PERFORMANCE (24V)

Line Load	Current Draw	Line Speed	Duty Cycle
lbf	kgf	Amps	ft/min	m/min	min/10min
0	0	6	14.5	4.4	Continuous
400	181	15	14.4	4.4	Continuous
800	363	25	14.0	4.3	Continuous
1200	544	34	13.6	4.1	6.8
1600	726	44	13.2	4.0	4.6
2000	907	54	12.8	3.9	3.4
