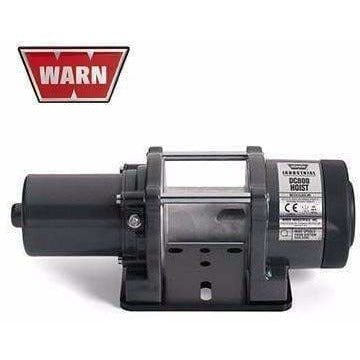

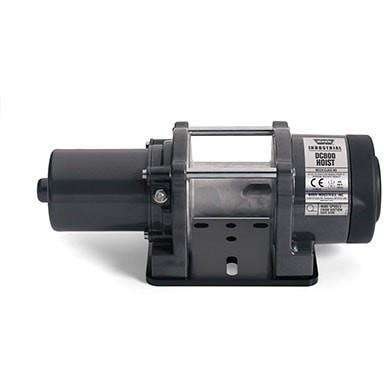

The DC800 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC800 hoist is compact and comes standard with a steel mounting plate and hardware to make installation quick and easy. Controls and accessories available separately.
| Part Number: DC800SF-82467 (12V) |
| Part Number: DC800SF-82468 (24V) |
| Rated Capacity: 800 lbf (363 kgf) |
| Drum Barrel Diameter: 2.0 in (51 mm) |
| Drum Flange Diameter: 4.1 in (104 mm) |
| Distance Between Flanges: 3.0 in (75 mm) |
| Recommended Maximum Wire Rope Diameter: 3/16 in (4.8 mm) |
| Recommended Wire Rope Breaking Strength: 4200 lbf (1905 kgf) |
| Approximate Shipping Weight: 16.0 lb (7.3 kg) |
| Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m) |
| Mounting Bolt Torque: 11-13 ft*lbf (15 – 18 N*m) |
| Maximum Layers of Wire Rope: 4 |
| Gear Reduction: 154:1 |
| Brake Type: Disc |
| Contactor/Remote Type: Not Included |
|
Standards Compliance: CE Machinery Directive 98/37/EC and 2006/42/EC CE Electromagnetic Compatibility 2004/108/EC |
| Drum Layer | Line Load * | No Load Line Speed | Drum Capacity | ||||
| lbf | kgf | kN | ft/min | m/min | ft | m | |
| 1 | 800 | 363 | 3.6 | 18.0 | 5.5 | 10 | 3.0 |
| 2 | 683 | 310 | 3.0 | 21.0 | 6.4 | 21 | 6.4 |
| 3 | 596 | 270 | 2.7 | 24.0 | 7.3 | 33 | 10.1 |
| 4 | 528 | 239 | 2.3 | 27.0 | 8.2 | 50 | 15.2 |
| Line Load | Current Draw | Load Speed | Duty Cycle | ||
| lbf | kgf | Amps | ft/min | m/min | min/10min |
| 0 | 0 | 14 | 18.0 | 5.5 | 2.5 |
| 500 | 227 | 38 | 16.2 | 4.9 | 1.5 |
| 800 | 363 | 53 | 13.0 | 4.0 | 1.0 |
| Drum Layer | Line Load * | No Load Line Speed | Drum Capacity | ||||
| lbf | kgf | kN | ft/min | m/min | ft | m | |
| 1 | 800 | 363 | 3.6 | 21.0 | 6.4 | 10 | 3.0 |
| 2 | 683 | 310 | 3.0 | 24.5 | 7.5 | 21 | 6.4 |
| 3 | 596 | 270 | 2.7 | 28.0 | 8.5 | 33 | 10.1 |
| 4 | 528 | 239 | 2.3 | 31.6 | 9.6 | 50 | 15.2 |
| Line Load | Current Draw | Load Speed | Duty Cycle | ||
| lbf | kgf | Amps | ft/min | m/min | min/10min |
| 0 | 0 | 6 | 21.0 | 6.4 | 2.5 |
| 500 | 227 | 21 | 18.0 | 5.5 | 1.5 |
| 800 | 363 | 30 | 14.0 | 4.3 | 1.0 |
