Winmate M101P 4GB 128GB LTE 10.1" Long battery life Rugged Tablet, Win10 IoT, IP65, Intel cpu,1920x1200 IPS Panel with P-Cap Touch Dual Camera Design: 8MP Main camera with LED flash/2MP Webcam,

Winmate M101P 4GB 128GB LTE 10.1" Long battery life Rugged Tablet, Win10 IoT, IP65, Intel cpu,1920x1200 IPS Panel with P-Cap Touch Dual Camera Design: 8MP Main camera with LED flash/2MP Webcam,


Winmate M101P 4GB 128GB LTE 10.1" Long battery life Rugged Tablet, Win10 IoT, IP65, Intel cpu,1920x1200 IPS Panel with P-Cap Touch Dual Camera Design: 8MP Main camera with LED flash/2MP Webcam,

- 10.1” 1920x1200 IPS LED Panel with P-Cap Touch
- Long battery life with Intel® Pentium N4200 Apollo Lake processor
- IP65 water and dust proof
- Optional Integrated Barcode or RFID Reader
- Dual Camera Design: 8MP Main camera / 2MP Webcam
- Optional Expansion port for USB / RS232 connection
- Hot-Swappable Battery Design / Optional high capacity battery pack
- 2 Programmable function keys
- With optical bonding and anti-glare solution for sunlight readability

Display Specifications
Size
10.1"
Brightness
800 nits(typ.)
Resolution
1920x1200 WUXGA
Contrast Ratio
800:1
Touch
Multi-Touch Projected Capacitive Touchscreen
(supports Rain, Glove, Stylus Modes)
Viewing Angle
85/85/85/85
Panel Viewability
Optical Bonding for Sunlight Viewability
Default anti-glare solution
System Specification
Processor
Intel Pentium N4200 Apollo Lake Processor 1.10 GHz, up to 2.50 GHz with turbo boost technology
Chipset
Intel® HD Graphics 504
Memory
4GB SODIMM LPDDR4 (up to 8GB)
Storage
128GB SSD (Options up to 512GB)
Additional storage available with micro SDXC card slot
Audio
1 x Built-in Mic with Noise Cancellation, 2 x 1W Speaker
Wireless Communication
WLAN
802.11 a/b/g/n/ac WiFi
Bluetooth
Bluetooth 5.0
WWAN
4G/ LTE
GPS
GPS, GLONASS
I/O Connectors

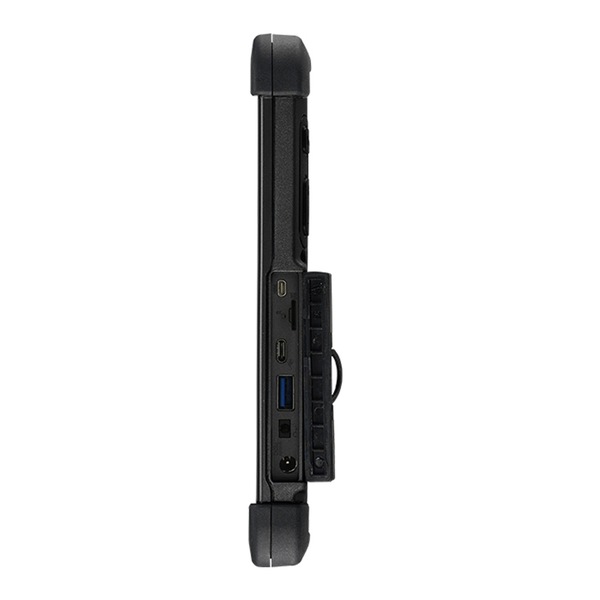

Right I/O Connectors
1 x Micro HDMI
1 x USB 3.0(Type A)
1 x USB3.0 (Type C)
1 x Audio Combo connector (Mic in or Line Out)
1 x DC jack
1 x Micro SDXC Slot

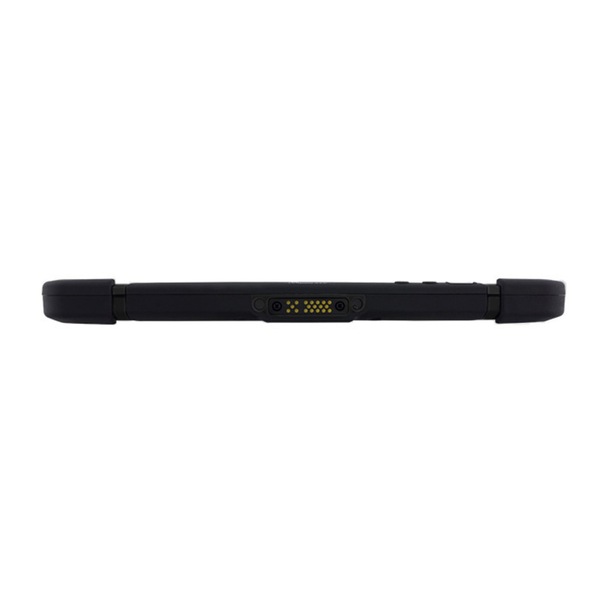

Downside I/O Connectors
1 x Docking Connector
I/O
1 x Micro SIM card slot
1 x Mini PCIe for WWAN Module
External I/O
1 x Extension Port (Optional)
In front Control
Control Button
1 x Power,
1 x Home (Win-set application),
2 x Programmable Function Key (Programmable function key configured by Hottab Utility)
(One for Barcode trigger key when with Barcode),
2 x Adjusting keys for Volume or Brightness
LED indicator
Power, Battery, HDD Access, RF
Mechanical and Environment
Dimensions (W x L x H)
271.9 x 198.3 x 19.5 mm (10.7 x 7.76 x 0.77 inches)
Net Weight (kg)
1.2 kg (2.65 lbs) with standard battery
1.4 kg (3.1 lbs) with optional high capacity battery
Operating Temperature
-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
IP Proof
IP65
Operating Humidity
10% to 90% RH, non-condensing
Shock
MIL-STD-810G Method 516.6 Procedure I
Vibration
MIL-STD-810G Method 514.6 Procedure I
Drop
MIL-STD-810G Method 516.6, 4 ft to concrete*
Power Management
Power Input
12~19V DC
Battery
Hot-swappable 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P)
7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, Optional)
Adapter
100-240V, 50-60Hz, 19V DC
Battery Operating Time
Std. Battery: 8 hours***
High Capacity Battery: 16 hours***
Product Specification
OS
Windows 10 IoT Enterprise (64 bit)
Camera
8MP Auto-Focus Camera with LED Light at rear / 2MP Camera at front side
Data Capture
Optional 1D/2D Barcode Reader
Optional HF RFID Reader
Optional add-on UHF RFID Reader or Smart Card Reader
Security
Security
Trusted platform module (TPM) V2
Kensington Lock
Mobile Device Management
SOTI Mobicontrol compatible
MPN: M101PLTE
