PRO2 2Way HDMI over Cat5 AV Splitter/Transmitter only up to 50M for Blu-Ray/DVD

Image 1
Image 2
Image 3
Image 4
$99

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by KG Superstore

Extend the signal range or add more displays by using PRO2 (H2SPC5L) 2-way HDMI Over Cat5 Splitter (transmitter only).

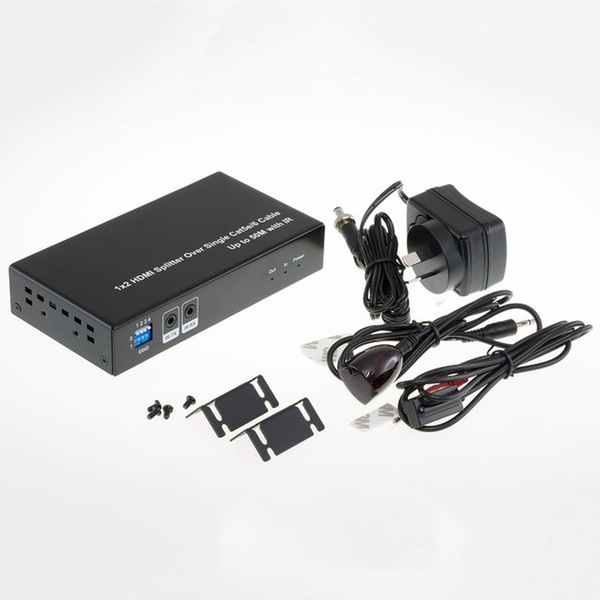

Item includes 1x2 HDMI splitter over single Cat5e/6 cable enables to split your source up to 50 meters with IR passes through. H2SPC5L also provides a local HDMI loop out for viewing locally.  Which means you can now view the video source locally as well as on the extended end!

Supports 480i/480p/720p/1080i/1080p at 60Hz video resolutions, VESA resolution and 3D video support!

Easy installation with no driver required!


Features:

  • Distribute 1 HDMI signal to 2 identical UTP outputs synchronously, with 1 HDMI loop output
  • Transmit over 50m using single Cat5E/6 cable.
  • Can be cascaded for 4 layers
  • With wide-band Bi-Direction IR control(36-56kHz)
  • Supports full HD 1080p, VESA resolution 1920x1200
  • Supports Dolby TrueHD, DTS-HD Master Audio
  • Supports 3D

Specifications:

H2SPC5L also provides a local HDMIloop out for viewing locally
  • Operating Temperature Range: -5 to +35℃(+23 to +95℉)

  • Operating Humidity Range: 5 to 90%RH (No Condensation)

  • Video Amplifier Bandwidth: 140MHz

  • Input Video Signal: 0.5-1.0 Volts P-P

  • Input DDC Signal :5 volts p-p(TTL)

  • Data transfer speed rate: 6.75Gbps(Maximum)

  • Input port: 1xHDMI

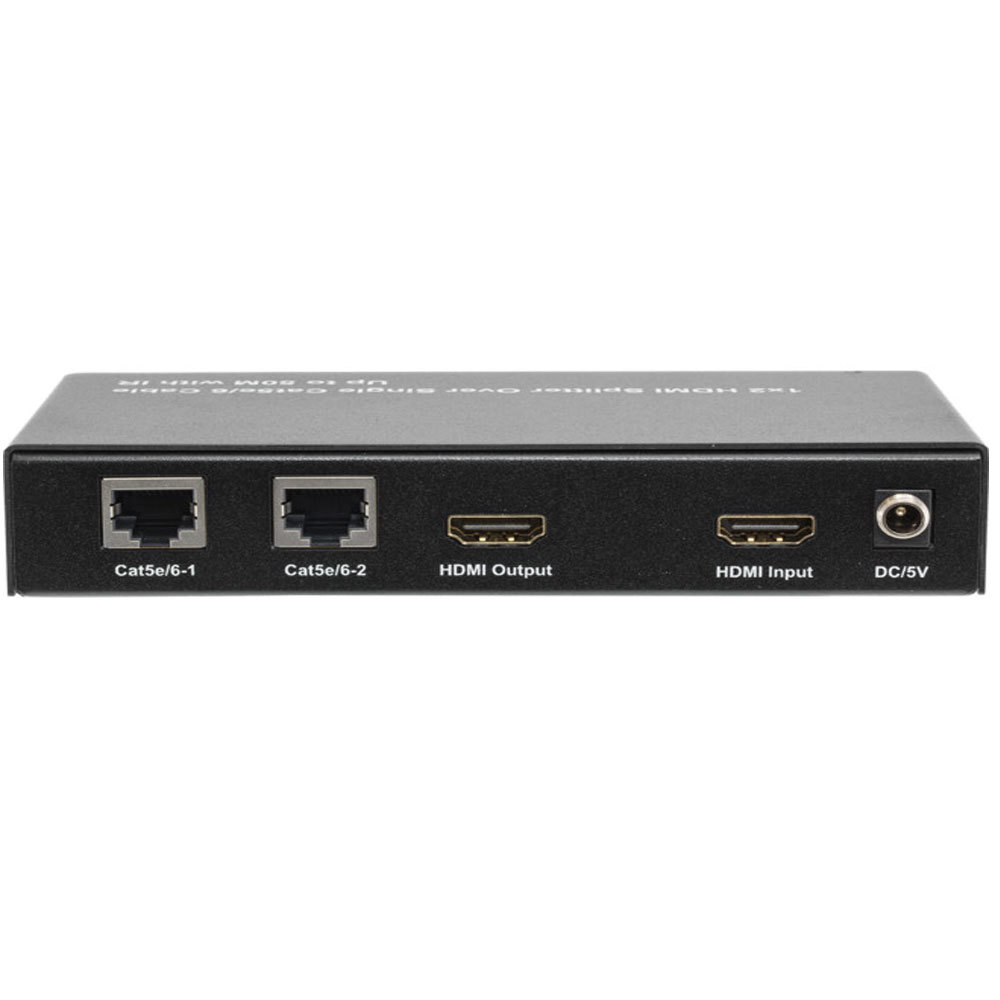

  • Output ports: 2xCat5e/6, 1xHDMI

  • Video Format Supported: DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P VESA resolution:1920x1200â‘  3D video support

  • Vertical Frequency range: 60Hz Support Audio Format DTS-HD

  • Master Audio, Dolby True HD, multi-channel 5.1, stereo etc ②

  • Transmission Distance: 1080P 8-bit 50m Over single cat5e or cat6 cable/24AWG/Solid③

  • Power consumption: 4W(Max)

  • Dimension: (L×W×H) L149xW79xH28mm

  • Net Weight: 317.7g

This item comes with a 12-month warranty.

GTIN: 9328202001047

Reference ID: 231266
