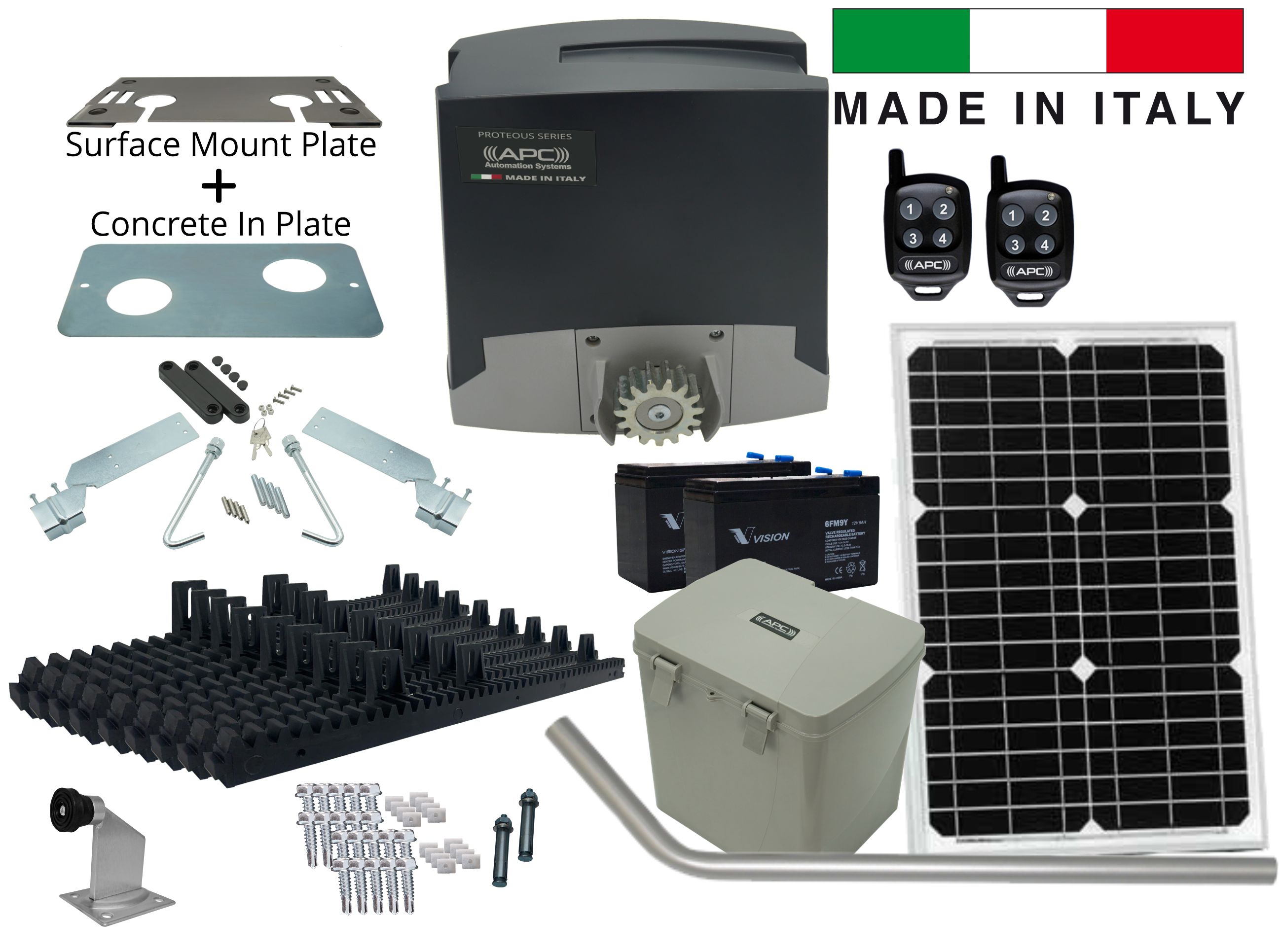

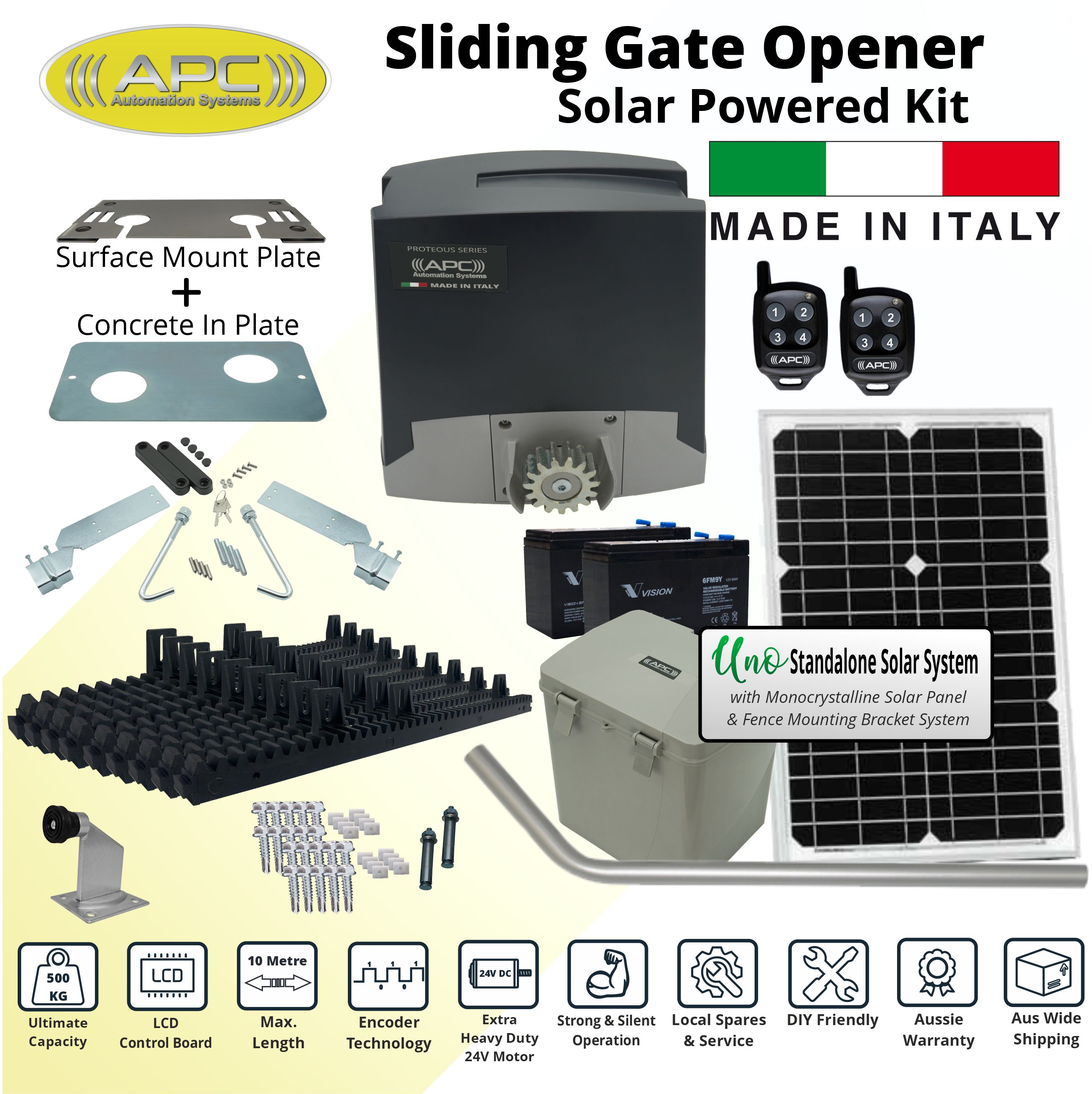

Gate Opener Kit Includes

• APC Proteous 500 FEATURE RICH Sliding Gate System Gate Opener (QTY: 1)
• APC Sun Power Series 12V/24V 10A PWM Solar Regulator (QTY: 1)
• APC Four Button Keyring Remote (QTY: 2)
• APC Uno Multipurpose Battery Box (QTY: 1)
• 115mm High Bolt Down Galvanized Gate Stop (QTY: 1)
• 6m 2 Core 2mm Non Shielded Cable (QTY: 1)
• V4 520mm Nylon Rack (QTY: 8)
• 9aH High Capacity Battery (QTY: 2)
• 24v 20 Watts Solar Panel (QTY: 1)
• Solar Panel Fence Post Bracket for APC 20 Watt Solar Panels (QTY: 1)
• Concrete In Plate (QTY: 1)
• Surface Mount Plate (QTY: 1)
• Installation hardware
• Bag of bolts and screws set

Product Information

Heavy Duty Feature Rich 24V Italian Sliding Gate Motor

At a glance

The Proteous 500 boasts a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.

Capacity

90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra long 10 metre gate capacity
Only 150mm Narrow Depth

Everything and more as standard..

Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

24V 20 Watt Solar Panel (Upgradable to 40 Watt or 60 Watt options)

APC Uno Standalone Solar System

24V 9aH Battery System
