Brio Multifold MF30+ Folding Door System for 30KG Top Hung Interior Partitions

Image 1
Image 2
Image 3
Image 4
Shop More Products

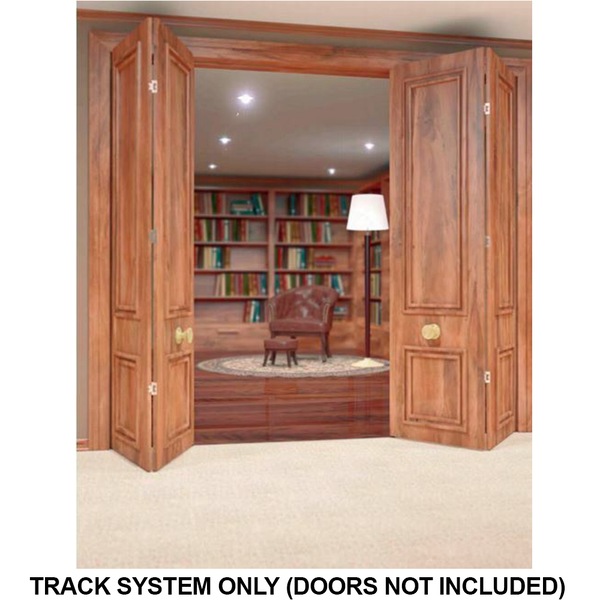

PLEASE NOTE:Ā Track system only (we don't sell doors)
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which has a handling time of 5 business days after payment is made.

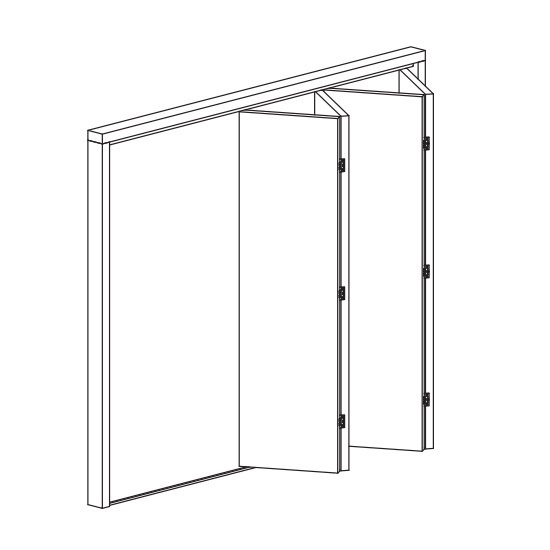

Multifold 30 is an interior folding door hardware system suitable for residential and light commercial folding partitions, cupboards and wardrobes. Panels can be either end folding or center folding and weigh up to 30kg. The pivot hardware allows equal width doors to end fold in units of two, four or six panels on either side of the opening. Centre folding units consist of either one, three or five full-width panels and one half width panel. Multifold 30 is available in convenient standard sets to suit a wide variety of door configurations.

  • Suitable for residential wardrobes and folding partitions, using equal sized panels. Panels can be either end folding or center folding.
  • The folding unit is not hinged to a jamb but is pivoted in the track and on the adjustable jamb bracket. A guide system across the floor must be used on units of three panels or more.
  • End folding units of two, four or six panels can be pivoted to each side of the opening. Centre folding units of one, three or five full-width panels and one "half" width panel can be pivoted to each side of the opening.
  • Instructions on panel width calculation are shown overleaf. Panels should be constructed to provide a secure fitting for the pivots, hangers, hinges, and guides and can be either flush, panelled or of louvre construction.

Features:

  • Max Panel Weight: 30kg
  • Max Panel Height: 2400mm
  • Max Panel Width: 650mm
  • Min Panel Thickness: 19mm
  • Function: 2 Panel Add-on Pack of Fittings Only, Without Track

Each Pack Includes:

  • Top Pivot Assembly
  • Bottom Pivot
  • Wall Bracket
  • Hanger(s)
  • Door Stop
  • Spanner
  • Hinges
  • Screw
  • Installation Instructions

You will need to buy a 60A Track Mill seperately, please see our recommended products.

  • BRO60A20 - 2000mm
  • BRO60A30 - 3000mm
  • BRO60A40 - 4000mm
  • BRO60A60 - 6000mm

GTIN: 9314318001934

Reference ID: 1405681
