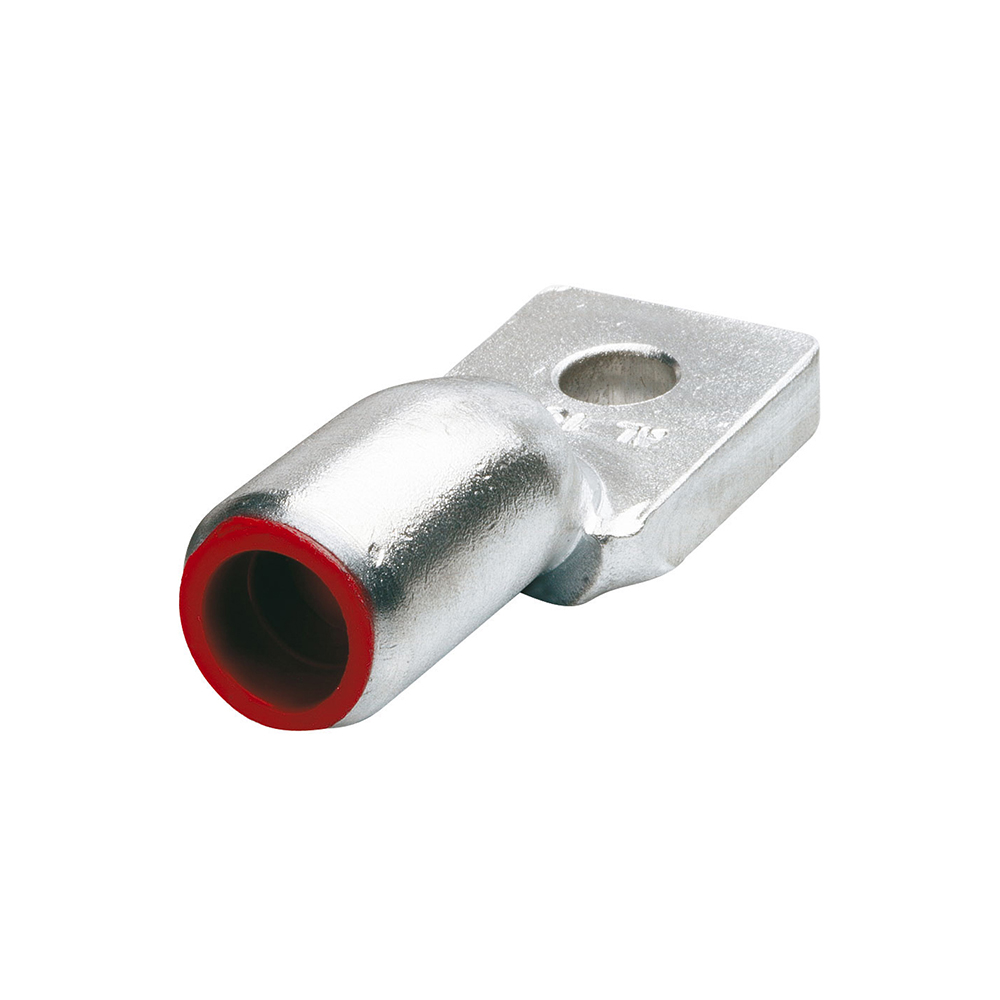

Cabac 95mm2 Aluminium Lug with 12mm Hole

Cabac 95mm2 Aluminium Lug with 12mm Hole

Hurry! 10 items left!

$10.69

Collect 10 Everyday Rewards points

Sold & shipped by MJS Electrical Products and Supplies

Secure ways to pay at checkout

(0)

Aluminium Lug (Blank)

For stranded sector and circular stranded Aluminium conductor.

CABAC Aluminium Lugs are manufactured by a forging process from solid 99.6% pure electrical grade Aluminium rod. This eliminates any imperfections in the metal structure which are often found in cast Aluminium lugs. The long-term electrical reliability is improved, eliminating future hot joints. Featuring a unique 'funnel' entry, stranded sector cable can be easily inserted into the barrel, and most importantly the lug palm can be orientated in any direction.

The barrel is chemically treated to reduce contact resistance, and is filled with jointing compound and capped. Before crimping, the conductors should be scratch brushed.

The lugs should be crimped with standard hexagonal dies, crimping from the palm outwards to force jointing compound into the conductors.
