Description:

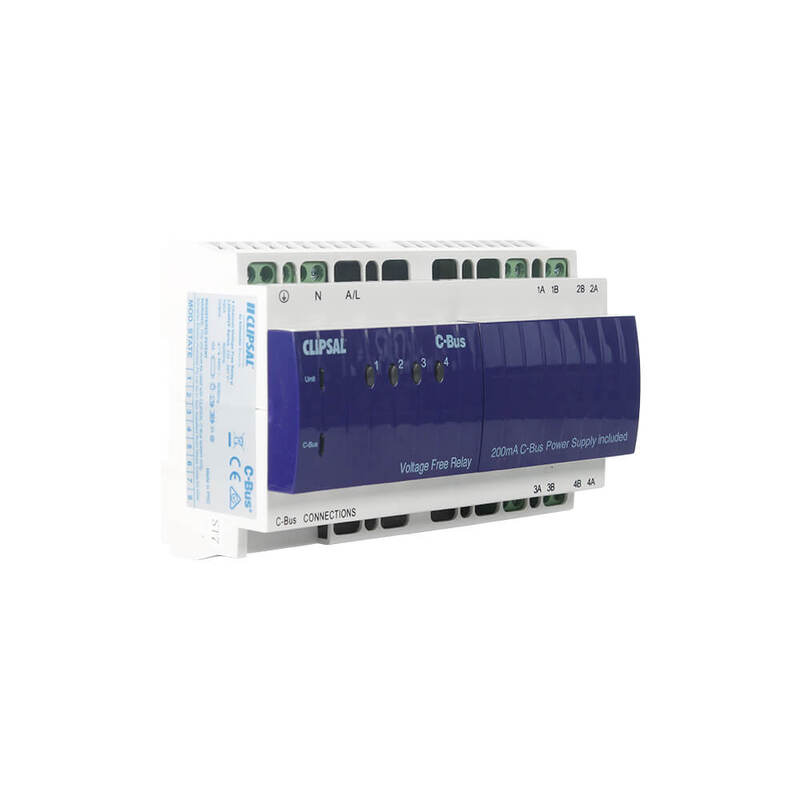

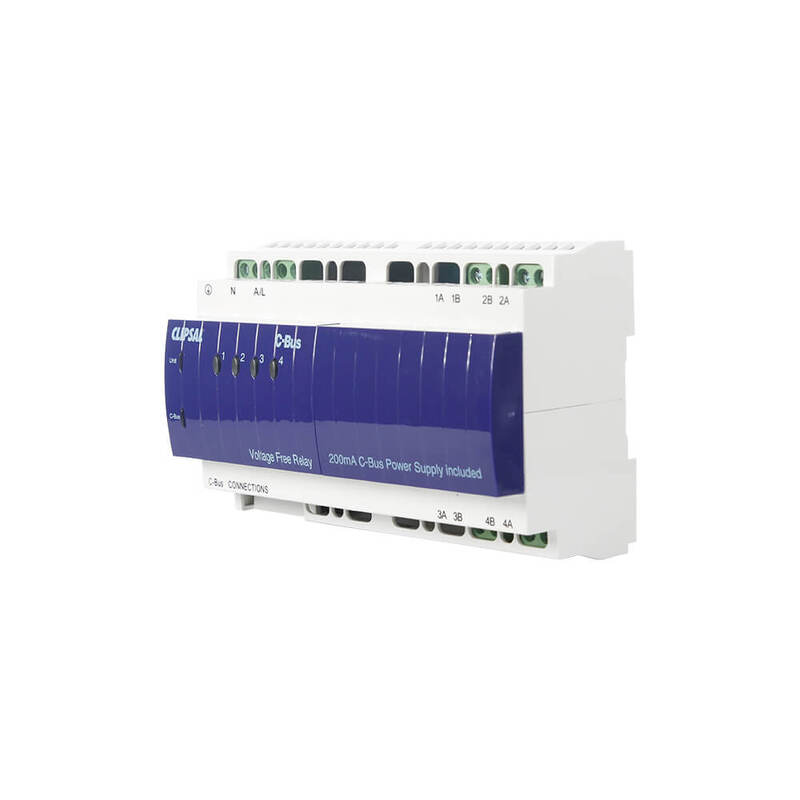

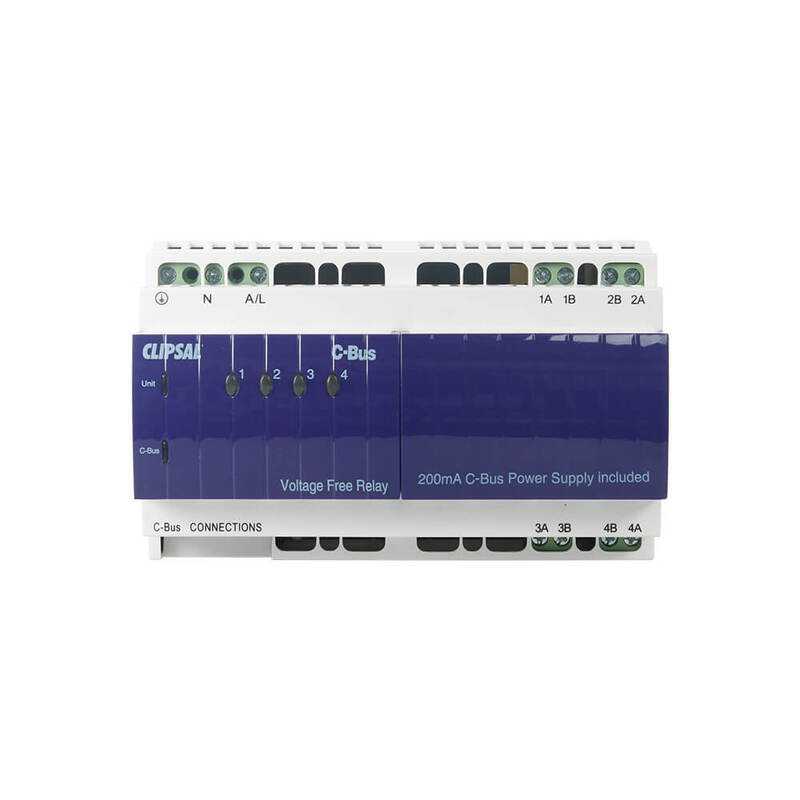

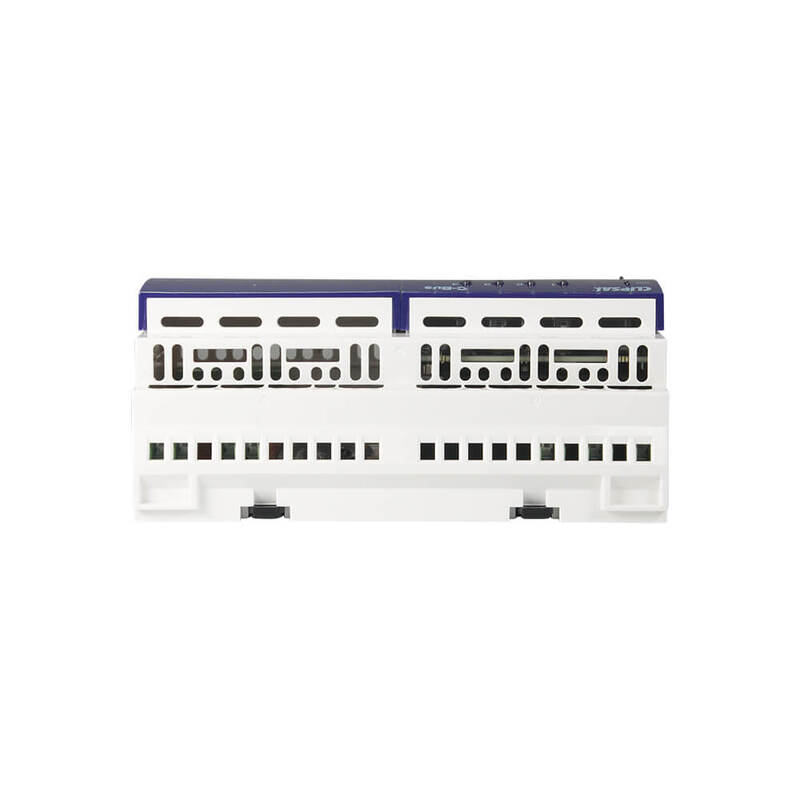

The Clipsal Schneider L5504RVF is a state-of-the-art C-Bus 4 Channel Voltage Free Relay meticulously designed for modern electrical setups. This DIN Rail-mounted device embodies innovation and reliability, offering electricians an unparalleled control solution. Engineered with precision, it supports a 240V AC, 10A operation, making it ideal for a wide range of applications. Its built-in C-Bus power supply sets it apart, providing voltage-free relay functionality for enhanced versatility and safety.
Features:
FAQ:
Q: What type of connectors does this relay use?
A: It uses screw terminals for secure and efficient wire connections.
Q: Is the device easy to install?
A: Yes, its DIN Rail mounting and compact design make installation straightforward.
| Specification | Details |
|---|---|
| Nominal supply Voltage | 220-240V AC |
| Frequency | 50Hz(47-53), 60Hz(57-63) |
| C-Bus Supply Voltage | 15-36V DC 18mA |
| AC Input Impedance | 50kΩ @1kHz |
| Electrical Isolation | 3.75 kV |
| Max units per network | 10 |
| Load Rating | 10A, Motor 2A |
| Switch Operations | <60,000 at Rated Load |
| Contact Type | Voltage free, magnetically latched |
| Quiescent Power | 10W |
| Warm-up | 5 Sec |
| Restart Delay | 0:00-42:30 |
| Operating Temperature | 0 to 45°C |
| Operating Humidity | 10 to 95% |
| Mains Terminals | 2 x 1.5mm²/1 x 2.5mm² |

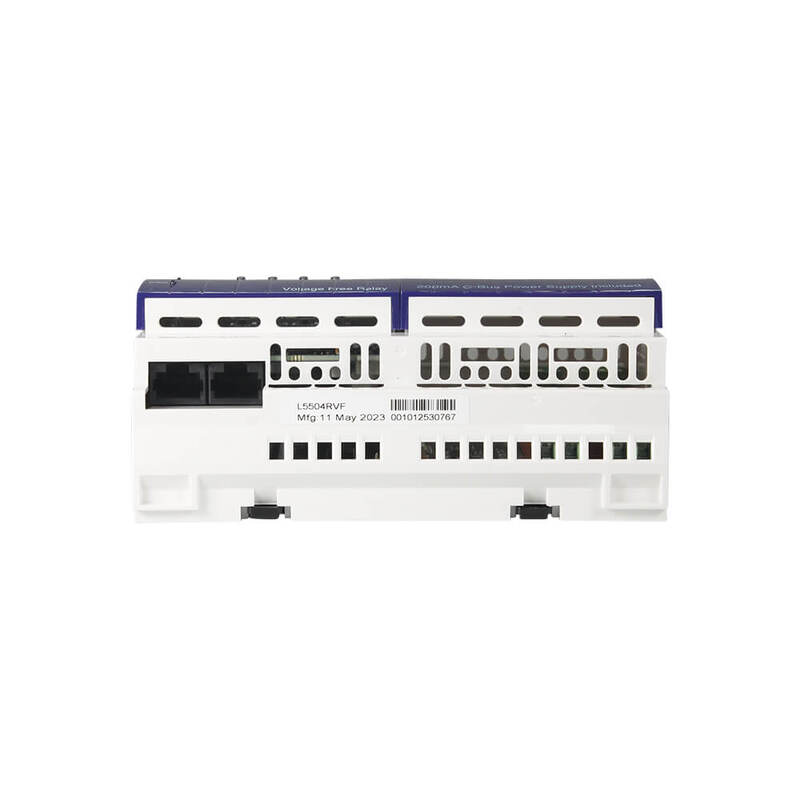

| C-Bus Connections | RJ45 Sockets |
The warranty starts from the Invoice Date.
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Clipsal in home warranty
GTIN: 9311554573348
Reference ID: 13027753
