CONTROL RELAY DPDT 3PK

Image 1
Hurry! 9 items left!
$94

Collect 94 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

{tab Overview}

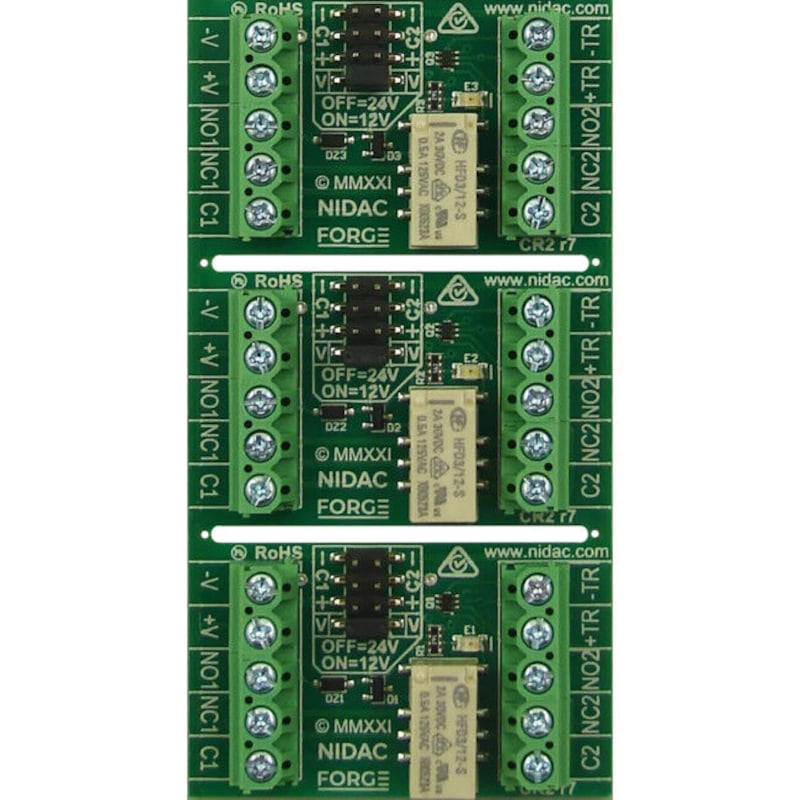

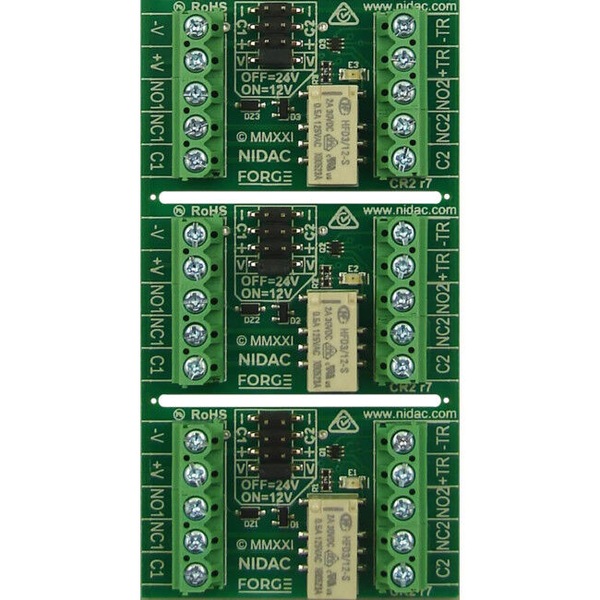

CR2/3 CONTROL RELAY DPDT 3PK - FORGE

The CR2 Control Relay is a 2 pole, double throw device available as strip of 3 with common supply rails. The CR2 offers flexibility of use and is a suitable device for multiple applications including industrial uses.

Features:

  • Expected lifetime of 100,000 operations at full load
  • LED indication of operation
  • Easy mounting with double sided adhesive tape included as standard
  • 2 Amp. rated relay, low 1.2 mA input current
  • In-built -TR pull-up resistor and +TR pulldown resistors
  • 2 Pole change over contacts, can jumpper +V or –V to common contacts, C1 & C2
  • 12 or 24 Volt D.C. operation

Spesc:

  • 12 or 24 Volt D.C. operation (10 - 18V V Link ON),
  • Maximum Switch Current: 2A at 30V
  • +TR Trigger: 2 to +V, 1.2mA @ 12V, 2.4ma @ 24V
  • -TR Trigger: 0 to (+V-2V) -1.2mA @ 12V, -2.4ma @
  • 24V * all voltages D.C.
  • Single unit: 50mm x 31mm x 15mm
  • Strip of 3: 50mm x 93mm x 15mm

{/tabs}

MPN: CR2-3
