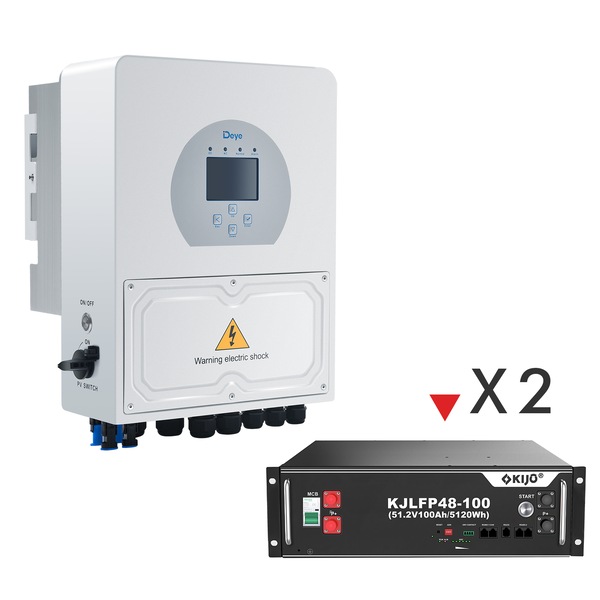

Deye 5KW Hybrid Solar Inverter MPPT Charger Regulator 2PCS KIJO 51.2V 5120Wh Lithium Battery Module

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Shop More Products
Ultimate Backup Power: Hybrid Inverter + 5120Wh Battery Module - Reliable energy for home, RVs, and off-grid setups. Extended Runtime: High-capacity battery ensures long-lasting power. Versatile Solution: Perfect for backup, solar integration, and mobile power needs!

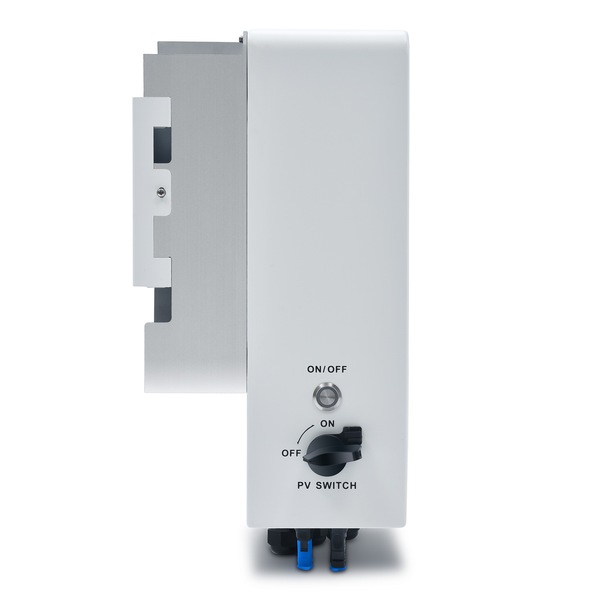

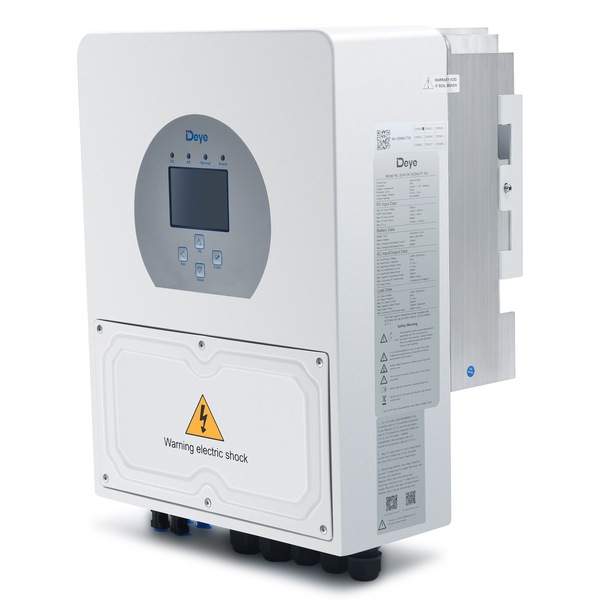

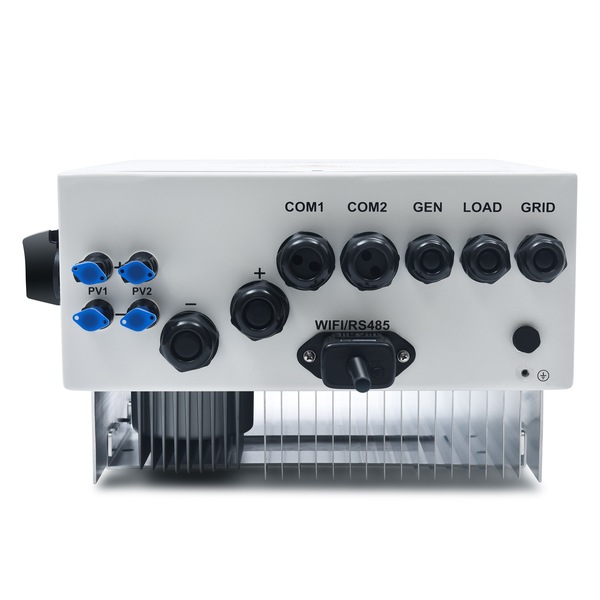

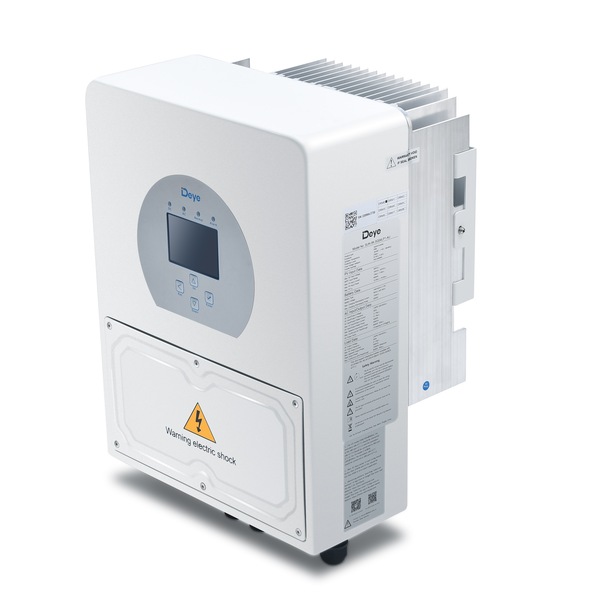

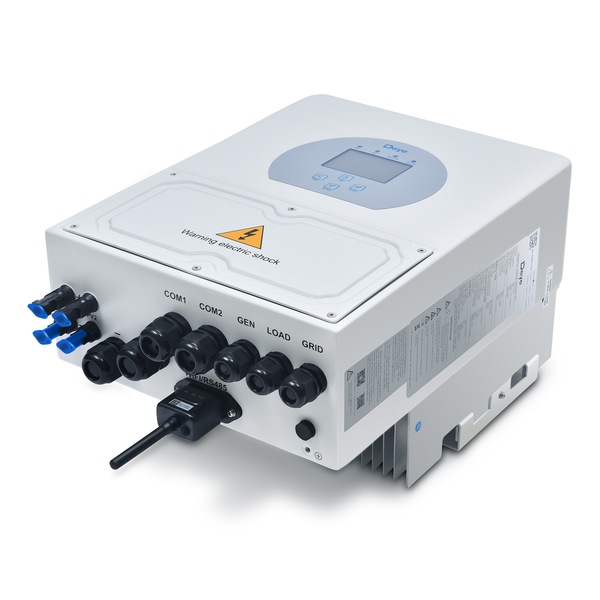

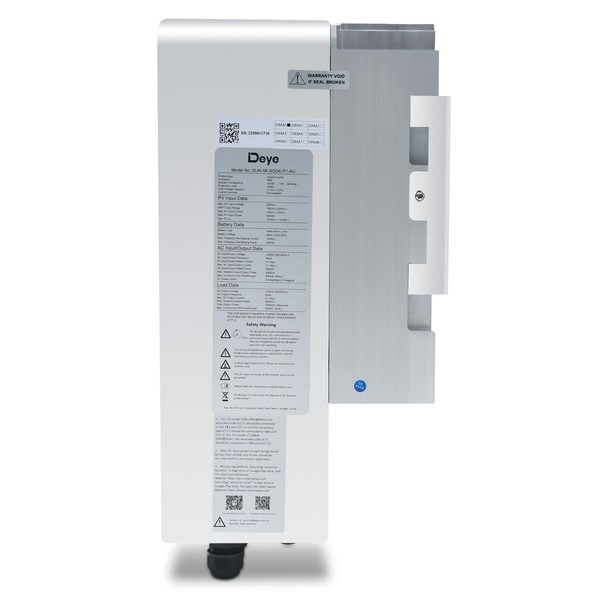

MODEL1: 1* 5KW Hybrid Inverter
Specification
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40~60
Max. Charging Current (A): 120
Max. Discharging Current (A):120
Charging Curve: 3 Stages / Equalization
External Temperature Sensor:Yes
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W):6500
Rated PV Input Voltage (V):370 (100~500)
Start-up Voltage (V):125
MPPT Voltage Range (V):125-425
Full Load DC Voltage Range (V):240-425
PV Input Current (A):13+13
Max. PV ISC (A): 17+17
Number of MPPT / Strings per MPPT: 2/1+1
AC Output Data
Rated AC Output and UPS Power (VA): 5000
Max. AC Output Power (W): 5000
AC Output Rated Current (A):21.7
Max. AC Current (A):21.7
Max. Continuous AC Passthrough (A):35
Peak Power (off grid) :2 time of rated power, 10 S
Power Factor:0.8 leading to 0.8 lagging
Output Frequency and Voltage:50Hz/45Hz-55Hz; L/N/PE 230V/ 195.5V-253V, 240V/204V-264V
Grid Type: Single Phase
DC injection current (mA):THD<3% (Linear load<1.5%)
Efficiency:
Max. Efficiency:97.60%
Euro Efficiency:97.00%
MPPT Efficiency: 99.90%
Protection: PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge protection
Output Over Voltage Protection: DC Type II/AC Type III
Certifications and Standards
Grid Regulation : AS/NZS 4777.2
Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (°C):-40~60°C, >45°C derating
Cooling : Nature Cooling
Noise (dB): <30 dB
Communication with BMS:RS485; CAN
Weight (kg):15.1
Size (mm):330W x 433H x238D
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 Years

Package List
Hybrid inverter x1

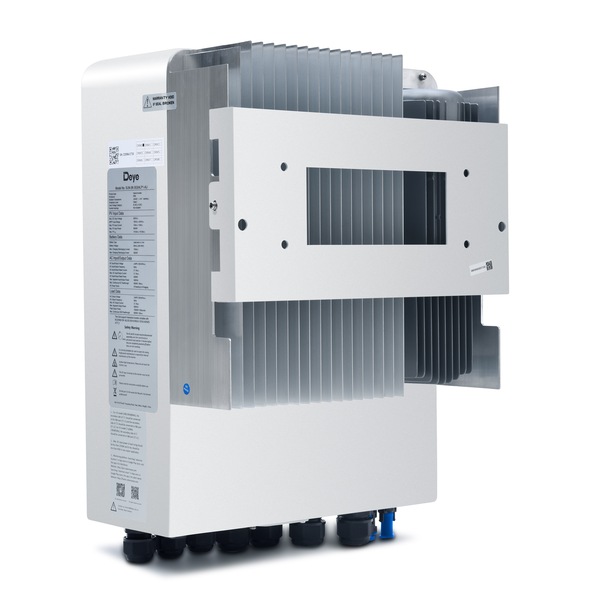

Wall mounting bracket x1
Stainless steel anti-collision bolt M6*60 x4
Stainless steel mounting Screws M4*12 x2
Parallel communication cable x1
L-type Hexagon wrench x1
Wi-Fi Plug x1
Battery temperature sensor x1
User Manual x1
Sensor Clamp x1

MODEL2: 2* 5120Wh Lithium Battery Module
32 years Old company, CEC approved Battery
Specification
Nominal capacity: 100Ah
Nominal voltage: 51.2VDC
Maximum continuous charging current: 95A
Maximum continuous discharge current: 95A
Voltage range: 40-58.4V
Total power consumption during operation: ≤20mA
Voltage acquisition accuracy: ≤±10mV
Current acquisition accuracy: ≤±2%
Temperature acquisition accuracy: ±2°C
Is there a balanced current: Possess
Two SOC measurement errors: ≤5%
Protection and alarm: Including: individual overvoltage, undervoltage, overall overvoltage, undervoltage, overcurrent, over temperature, short circuit protection, etc., and the protection settings can be set
Communication: RS485/RS232/CAN
Product dimension: 430*442*132mm
Package dimension: 514*504*172mm
Net weight: 44.5kg
Gross weight: 50kg
Warranty: 10 years

Package List x2
1* battery module
1* 1.5m Network cable
4* Quick Plugs
1* Premium Limited Warranty
1* Operating Manual
