Split Screen Monitor

Can easily switch from single to double screen for better viewing experience

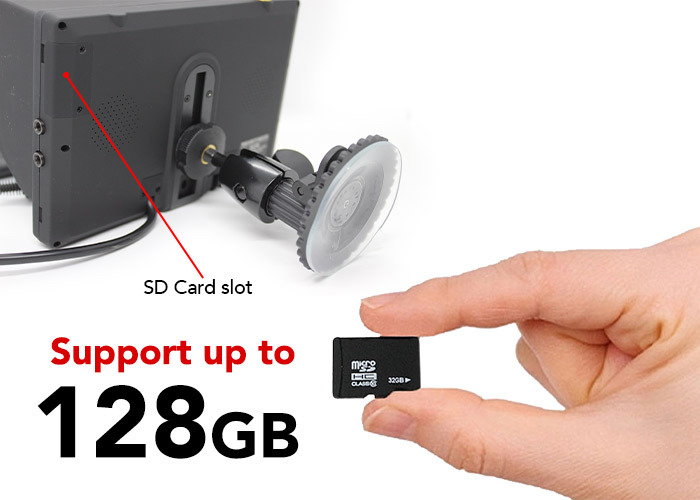

DVR Recording Function

Can support up to 128GB SD card so you have more than enough storage space to save recorded videos.
* SD Card is not included

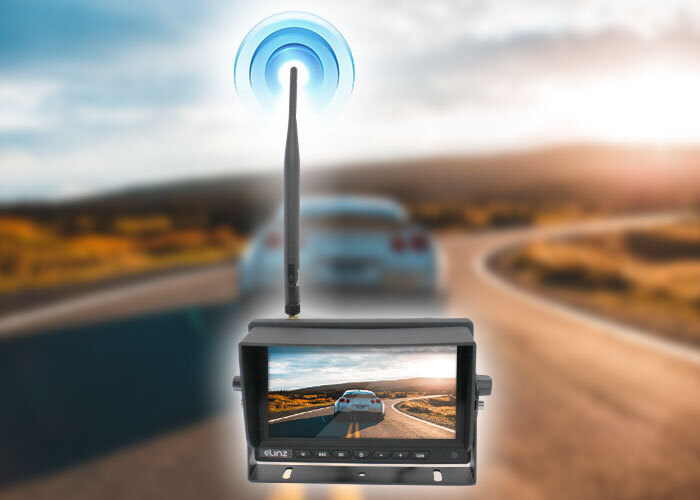

2.4GHz Digital Wireless Transmission

Ensures strong and stable signal transmission distance of up to 30m at 100km/h

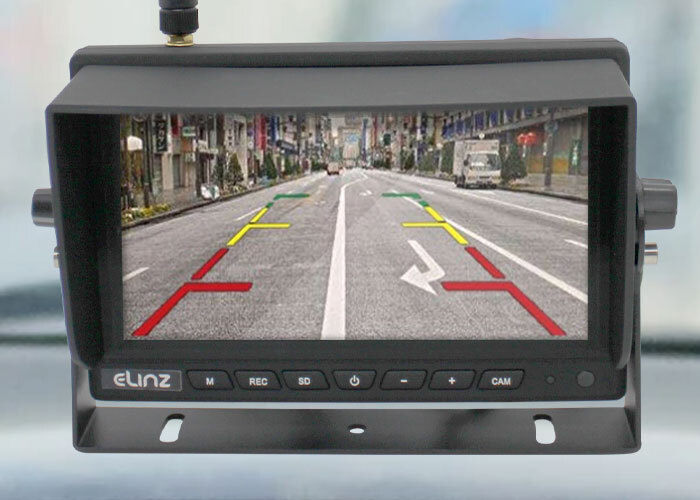

Parking Guideline Support

This parking guidelines helps in parking or reversing for your peace of mind and safety. Can be turned on or off

Easy to Install

Monitor wires are clearly labeled and can be easily connected

Compatible with 12V/24V Vehicles

Suitable for cars, trucks, trailer and caravan

Built-in Speakers

Works best with reverse camera with mic to hear clearly audio instructions from a person when reversing

Wiring Labels

Monitor Dimensions

Monitor Labels

Remote

• * No Batteries Included

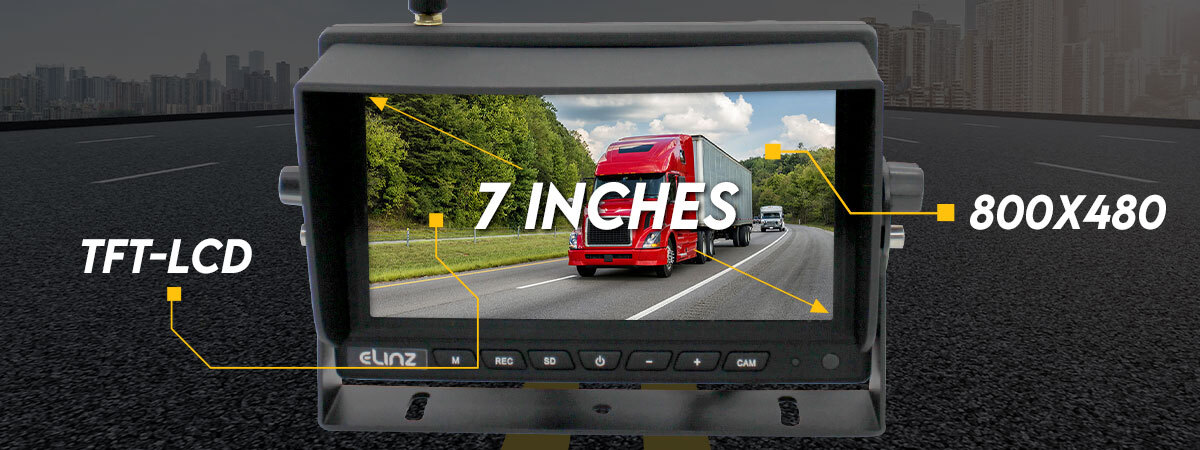

• 7" TFT-LCD Monitor
  • With the 800x480 7" monitor, you can view clearly and in sharp detail the video footage from the cameras
• Split Screen Monitor
  • Can easily switch from single to double screen for better viewing experience
• DVR Recording Function
  • Can support up to 128GB SD card so you have more than enough storage space to save recorded videos
• 2.4GHz Digital Wireless Transmission
  • Ensures strong and stable signal transmission distance of up to 30m at 100km/h
• Parking Guideline Support
  • This parking guidelines helps in parking or reversing for your peace of mind and safety. Can be turned on or off
• Easy to Install
  • Monitor wires are clearly labeled and can be easily connected
• Compatible with 12V/24V Vehicles
  • Suitable for cars, trucks, trailer and caravan
• Built-in Speakers
  • Works best with reverse camera with mic to hear clearly audio instructions from a person when reversing

• LCD Size: 7"
• Resolution: 800 x 3 (RGB) x 480
• Contrast: 500 | 1
• Brightness: 400cd/m²
• Viewing Angle: U: 50 / D: 70, R/L: 70
• Dot pitch: 0.0642(W) x 0.1790(H)
• Aspect Ratio: 16 | 9
• Channel: 2 Channels
• Operating Frequency: 2400 - 2483.5 MHz
• Receiving Sensitivity: -89 dBm
• Decompression Form: MPEG4
• Transmit Output Power: 17 dBm
• Modulation: 2.4G FSK/GFSK
• Time Delay: 120ms
• Transmitting Distance: 30m
• Micro-SD /TF Card: Max. 128GB
• System Format: PAL / NTSC
• Power Supply: DC 10-32V
• Power Consumption: Max. 6W
• Loudspeaker: 1.5W/8Ω
• Operating temperature: -20~+70ºC, RH90%
• Storage temperature: -30~+80ºC,RH90%

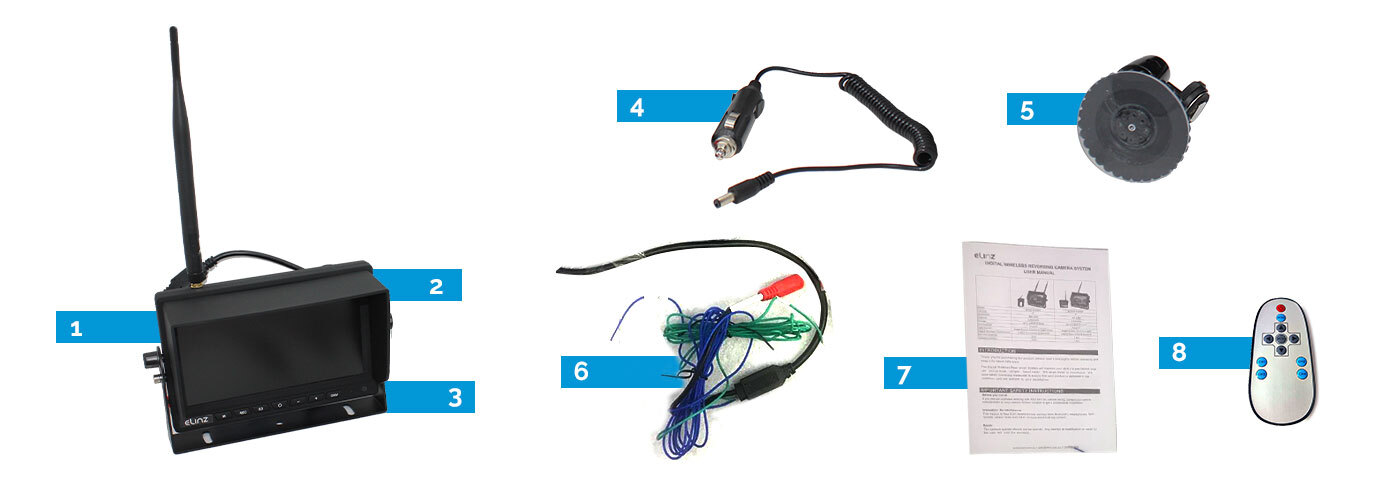

1. 1x 7” TFT LCD Monitor

2. 1x Sunshade

3. 1x Monitor Stand

4. 1x Car Charger

5. 1x Windscreen Mount

6. 1x Power Cord

7. 1x User Manual

8. 1x Remote (*Batteries Not Included)
