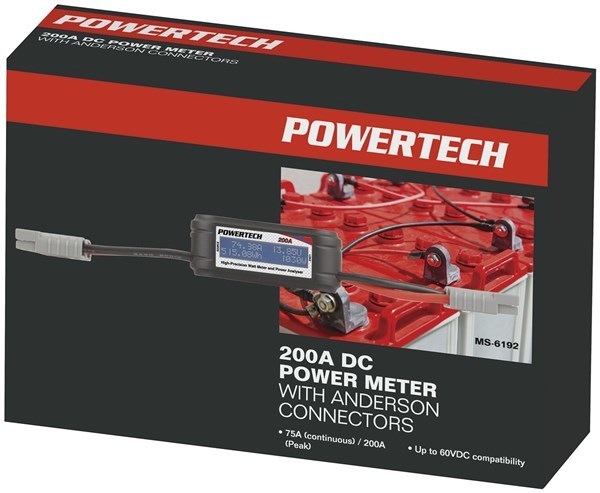

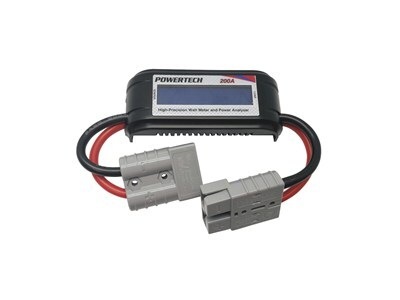

Powertech 200A DC 50A 8AWG Cable High Current Connectors All-in-One Power Meter

Powertech 200A DC 50A 8AWG Cable High Current Connectors All-in-One Power Meter

Be the first to review this product

Price	$74.95
	Collect 74 Everyday Rewards points Create a MyDeal Account or Login to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

This exceptional trouble shooting device is not just a watt meter it is an All-in-one power meter, volt meter, amp-hour meter, ammeter and energy meter.
It’s designed for systems less than 60V and currents up to 200A (Peak).
This genius device comes with Anderson connectors on both source and load end which makes it an easy fit into most high current DC set ups.
It can check charge going to a battery from battery charger or alternator, solar panel output, charge controller output, health and performance of batteries, evaluate charging efficiency
or measure power and energy consumption of any load device with a battery.
The Watt Meter only requires a tiny 7mA draw to operate making little difference to power production during usage.
Ideal for cars, boats, caravans, off-grid installations, Wind, solar installations, and so much more.

Features:

Anderson type 50-Amp connectors
75A continuous / 200A Peak
Up to 60VDC compatibility
Accurate amps, volts, watts, amp-hours, watt-hours, peak amps, minimum volts (sag), peak watts

Specifications:

Reads: 6V - 60V (0V - 60V with optional auxiliary battery).
Measures:
Current - 0-200A @ 0.01A Resolution
Voltage - 0-60VDC @ 0.01V Resolution
Power - 0-6554W @ 0.1W Resolution
Watt Hours - 0-650kWh @ 0.1Wh Resolution
Ampere Hours - 0-6554Ah @ 0.01Ah Resolution
Cable: 8AWG
Display: 16 x 2 backlit LCD Display
Dimensions: 110(W) x 45(H) x 26(D)mm (Excluding Cables)
Net Weight: 150g

Packaged Volume : 0.72l

Packaged Weight : 0.24kg

Packaged Length : 10.7cm

Packaged Width : 14.9cm

Packaged Height : 4.5cm

Width : 110mm

Height : 45mm

Depth : 26mm

Weight : 150g

GTIN: 9319236735367
