Kingray MHU25FS 25dB LTE 4G Filtering UHF Shielded Masthead Amplifier

Image 1
$84.90

Collect 84 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

UHF Masthead Amplifier with 25dB Gain, Fully Shielded Housing, Separate or Combined input with 4G/LTE filtering

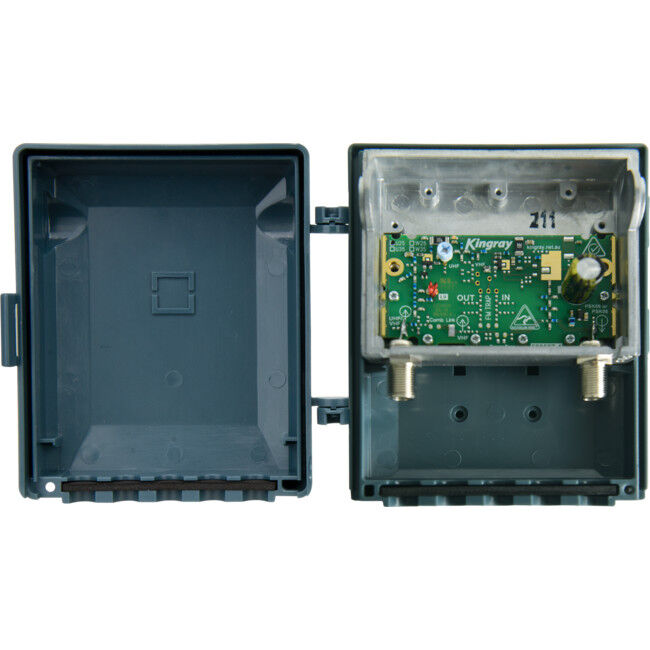

  • The MHU25FS is a UHF TV masthead amplifier, enclosed in a fully shield die-cast housing, with the capability to diplex VHF TV signals, either from combined or separate VHF and UHF antennas.
  • The Kingray Masthead range includes both wideband and VHF or UHF only models & with UHF frequencies above 694 MHz filtered, 4G/LTE transmissions are filtered out.
  • In addition to the 4G/LTE filtering, most wideband models include low band filtering to eliminate all services below 174 MHz. This amplifier also has the ability to allow FM radio signals to be passed through.
  • The masthead is powered remotely via a Kingray PSK06 or PSK08 series power supply (sold separately).

 Features

  • Frequency Range 174-230 MHz & 520-694 MHz
  • 25dB UHF Maximum Gain
  • 10dB Gain Control for UHF
  • Separate VHF & UHF Inputs or Combined Input
  • UHF Amplifier with VHF Diplexing
  • FM Radio 88-108 MHz Pass Through Selectable
  • 4G/LTE Filtering
  • Fully Shielded Die-cast Housing
  • Weatherproof Housing
  • High Output Figure of 108dB IMR3 (DIN45004B)
  • Connectors: F-Type
  • Power Consumption: 60mA
  • Suitable Power Supply: PSK06 Series or PSK08 Series

Specifications:

  • UHF amplifier with VHF diplexing
  • Separate or combined inputs
  • LTE filtering
  • UHF gain control
  • Fully sheilded housing
  • F type connections
  • 100% weatherproof case

ELECTRICAL SPECIFICATION

  • Frequency Range VHF: 174 - 230 MHz, UHF: 520 - 820 MHz
  • Maximum Gain VHF -2, UHF 35 dB
  • Gain Control Range 10 dB
  • Maximum Output Level 108dBµV @ - 60 dB IMR (DIN45004B)
  • Noise Figure UHF: <2.5 dB
  • LTE Filter -25dB @ 750MHz

MECHANICAL SPECIFICATION

  • Input Connector F type
  • Output Connector F type

POWER SUPPLY

  • Suitable plug pack PSK06/08, PSK06/08F, KPS06/08, KPS06/08F
  • Power Consumption 70 mA

IN THE BOX:

  • MHU25FS
  • Cable Tie
  • Installation Manual

12 months

GTIN: 9319493244411

Estimated Delivery Time Frame:5-7 business days
